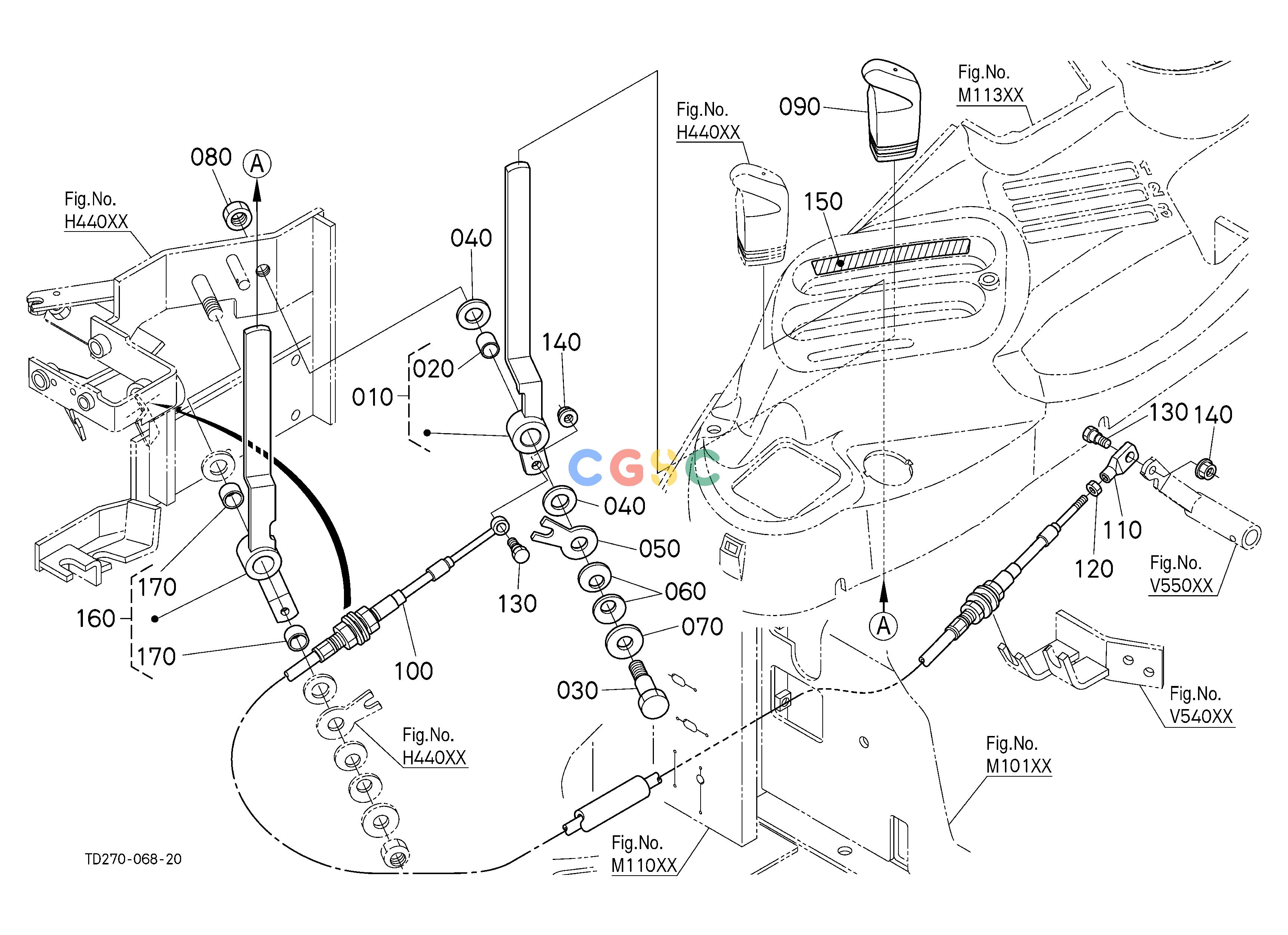

久保田零件查询V54500 POSITION AND DRAFT CONTROL LEVER (WITH DRAFT) (W/G No.L8376) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
535 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17035270
|
[1] |
ASSY LEVER,DRAFT
|
0.3740(lbs); 0.170
|
| 020. |
0851101415
|
[1] |
BUSH
|
0.0132(lbs); 0.006
|
| 030. |
TD17098200
|
[1] |
BOLT
|
0.1694(lbs); 0.077
|
| 040. |
3A21181440
|
[2] |
PLATE,FRICTION
|
0.0066(lbs); 0.003
|
| 050. |
TD17035190
|
[1] |
PLATE
|
0.0330(lbs); 0.015
|
| 060. |
3426036880
|
[2] |
WASHER,LOCK
|
0.0132(lbs); 0.006
|
| 070. |
0401350140
|
[1] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 080. |
0217450120
|
[1] |
HEX.NUT
|
0.0220(lbs); 0.010
|
| 090. |
TD06036140
|
[1] |
GRIP,LEVER
|
0.0990(lbs); 0.045
|
| 100. |
3C58182980
|
[1] |
WIRE,AUX.CONT.VALVE
|
0.6380(lbs); 0.290
|
| 110. |
TD17035160
|
[1] |
END,CABLE
|
0.0440(lbs); 0.020
|
| 120. |
0205450050
|
[1] |
HEX.NUT
|
0.0044(lbs); 0.002
|
| 130. |
TD17035120
|
[2] |
PIN(POSITION)
|
0.0154(lbs); 0.007
|
| 140. |
0275150060
|
[2] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 150. |
TD17098260
|
[1] |
MARK,DRAFT
|
0.0022(lbs); 0.001
|
| 160. |
TD27035300
|
[1] |
ASSY LEVER,POSITION
|
0.5720(lbs); 0.260
|
| 170. |
0851101410
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
