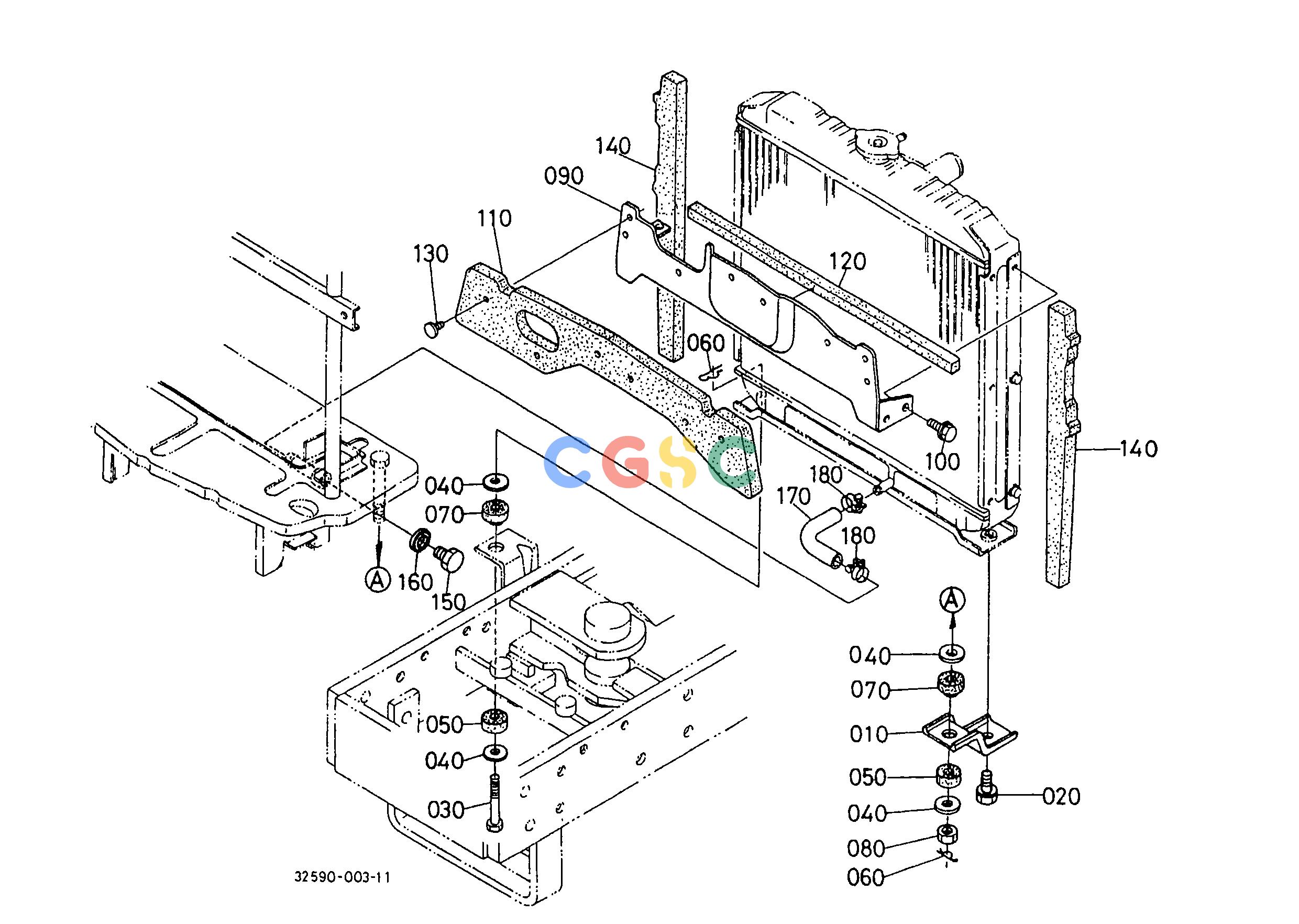

久保田零件查询T03802 RADIATOR SUPPORT COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
557 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259013750
|
[1] |
SUPPORT RADIATOR
|
0.5280(lbs); 0.240
|
| 020. |
0113351020
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 030. |
1510872380
|
[1] |
BOLT
|
0.0880(lbs); 0.040
|
| 040. |
1511172200
|
[4] |
WASHER
|
0.0286(lbs); 0.013
|
| 040. |
0401560100
|
[4] |
WASHER PLAIN
|
0.0330(lbs); 0.015
|
| 050. |
1511172180
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 060. |
0551561000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 070. |
1511172190
|
[2] |
CUSHION
|
0.0352(lbs); 0.016
|
| 080. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
3253017813
|
[1] |
SUPPORT CUSHION
|
1.1000(lbs); 0.500
|
| 100. |
0175450610
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 110. |
3253017820
|
[1] |
CUSHION
|
0.2860(lbs); 0.130
|
| 110. |
H325017820
|
[1] |
CUSHION
|
0.2860(lbs); 0.130
|
| 120. |
3253018750
|
[1] |
CUSHION BONNET
|
0.0440(lbs); 0.020
|
| 130. |
3253017830
|
[6] |
STOPPER
|
0.0044(lbs); 0.002
|
| 140. |
3253017844
|
[2] |
CUSHION
|
0.0506(lbs); 0.023
|
| 150. |
0633135012
|
[1] |
PLUG
|
0.0528(lbs); 0.024
|
| 160. |
0471701200
|
[1] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 170. |
3259013510
|
[1] |
PIPE WATER
|
0.0880(lbs); 0.040
|
| 180. |
0931888180
|
[2] |
CLAMP HOSE
|
0.0220(lbs); 0.010
|
| 180. |
6817163630
|
[2] |
BAND HOSE
|
0.0286(lbs); 0.013
|
