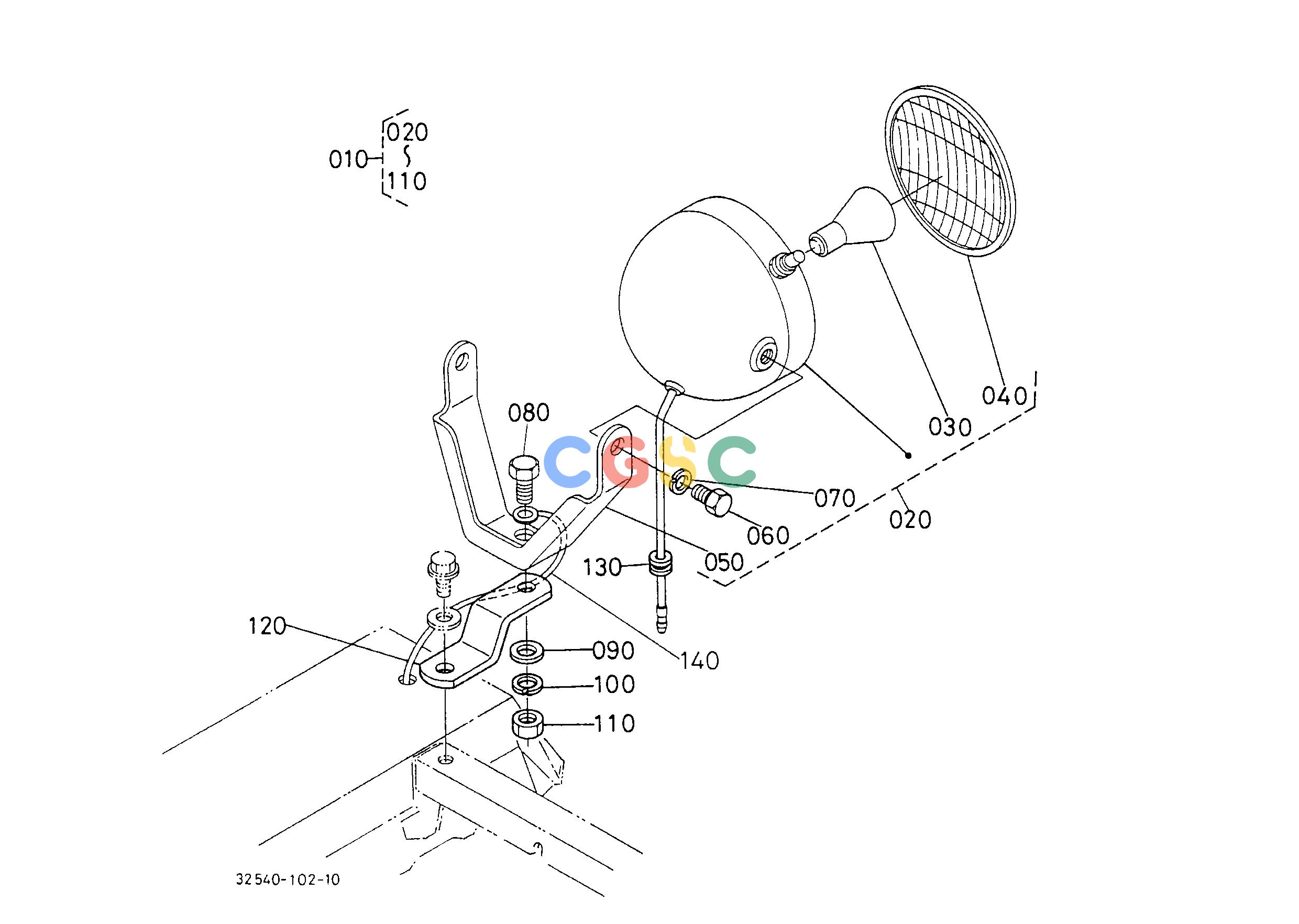

久保田零件查询T04800 WORKING LIGHT [NZ] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3587197600
|
[1] |
ASSY LIGHT WORKING
|
1.9360(lbs); 0.880
|
| 010. |
H358097000
|
[1] |
LAMP,ASSY(WORKING)
|
1.9360(lbs); 0.880
|
| 020. |
3587175900
|
[1] |
ASSY LIGHT WORKING
|
1.8700(lbs); 0.850
|
| 020. |
H358097000
|
[1] |
LAMP,ASSY(WORKING)
|
1.8700(lbs); 0.850
|
| 030. |
6833153360
|
[1] |
BULB
|
0.0330(lbs); 0.015
|
| 040. |
6833153310
|
[1] |
LENS
|
0.3300(lbs); 0.150
|
| 050. |
3586175910
|
[1] |
STAY WORKING LIGHT
|
0.5500(lbs); 0.250
|
| 060. |
0115350820
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 070. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 080. |
0117351020
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 090. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 100. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 110. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 120. |
3253996610
|
[1] |
BRACKET
|
0.2200(lbs); 0.100
|
| 130. |
6361152330
|
[1] |
CUSHION
|
0.0220(lbs); 0.010
|
| 140. |
3253096630
|
[1] |
WIRE HARNESS
|
0.0220(lbs); 0.010
|
