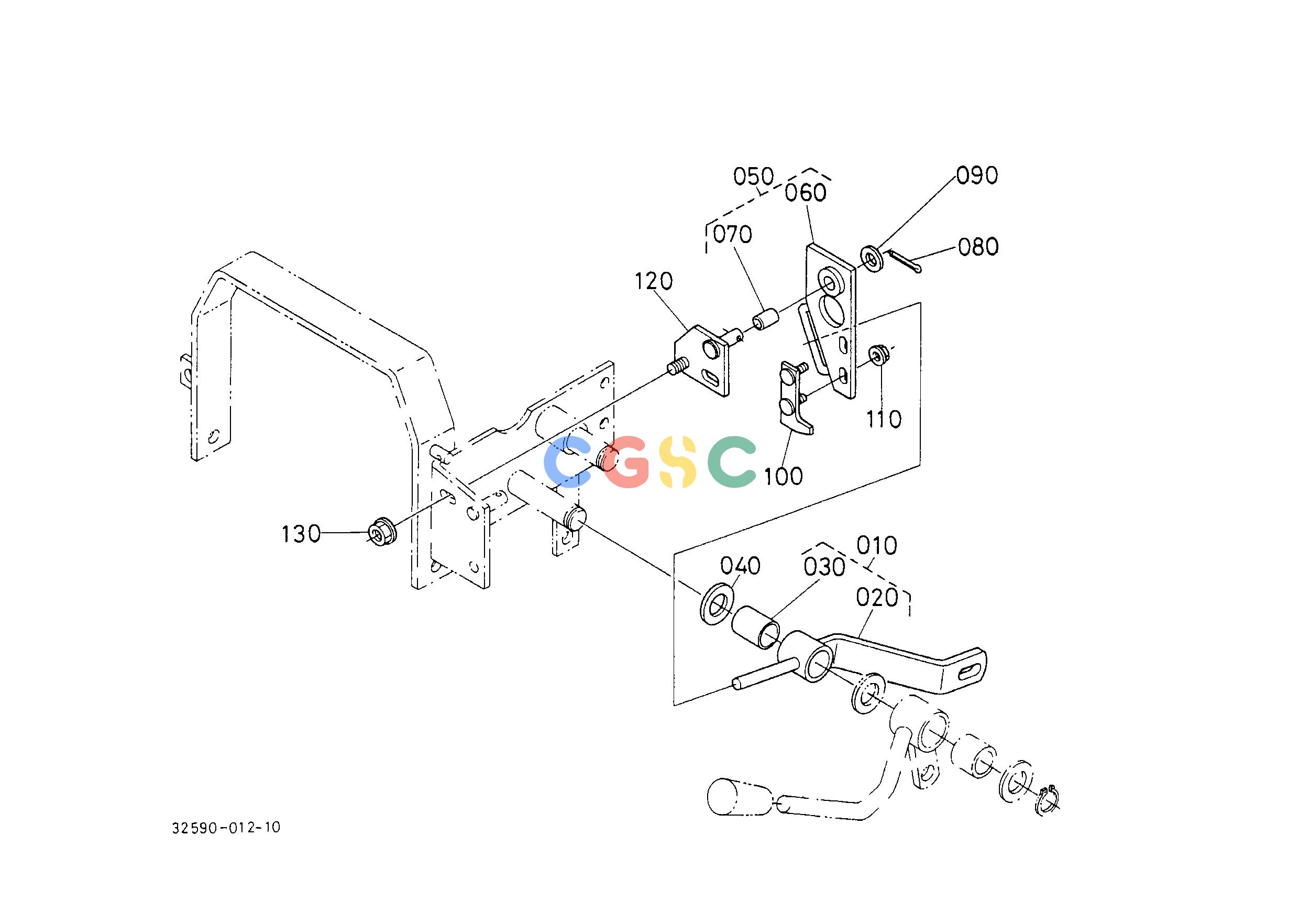

久保田零件查询T05500 PTO INTERLOCK [OLD TYPE] ## S.No.:L5450DT;<=60501 CLUTCHEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
288 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259015090
|
[1] |
ASSY LINK CLUTCH
|
0.7040(lbs); 0.320
|
| 020. |
3259015220
|
[1] |
LINK CLUTCH
|
0.6600(lbs); 0.300
|
| 030. |
0851102030
|
[1] |
BUSH
|
0.0550(lbs); 0.025
|
| 040. |
0401350200
|
[1] |
WASHER PLAIN
|
0.0440(lbs); 0.020
|
| 050. |
3259015290
|
[1] |
ASSY PLATE INTERLOCK
|
0.4400(lbs); 0.200
|
| 060. |
3259015260
|
[1] |
PLATE INTERLOCKER
|
0.4400(lbs); 0.200
|
| 070. |
0851101015
|
[1] |
BUSH
|
0.0066(lbs); 0.003
|
| 080. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 090. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 100. |
3259015280
|
[1] |
STOPPER
|
0.0880(lbs); 0.040
|
| 110. |
0276150060
|
[2] |
NUT FLANGE
|
0.0066(lbs); 0.003
|
| 120. |
3259015270
|
[1] |
PLATE FULCRUM
|
0.2200(lbs); 0.100
|
| 130. |
0276150080
|
[1] |
NUT FLANGE
|
0.0176(lbs); 0.008
|
