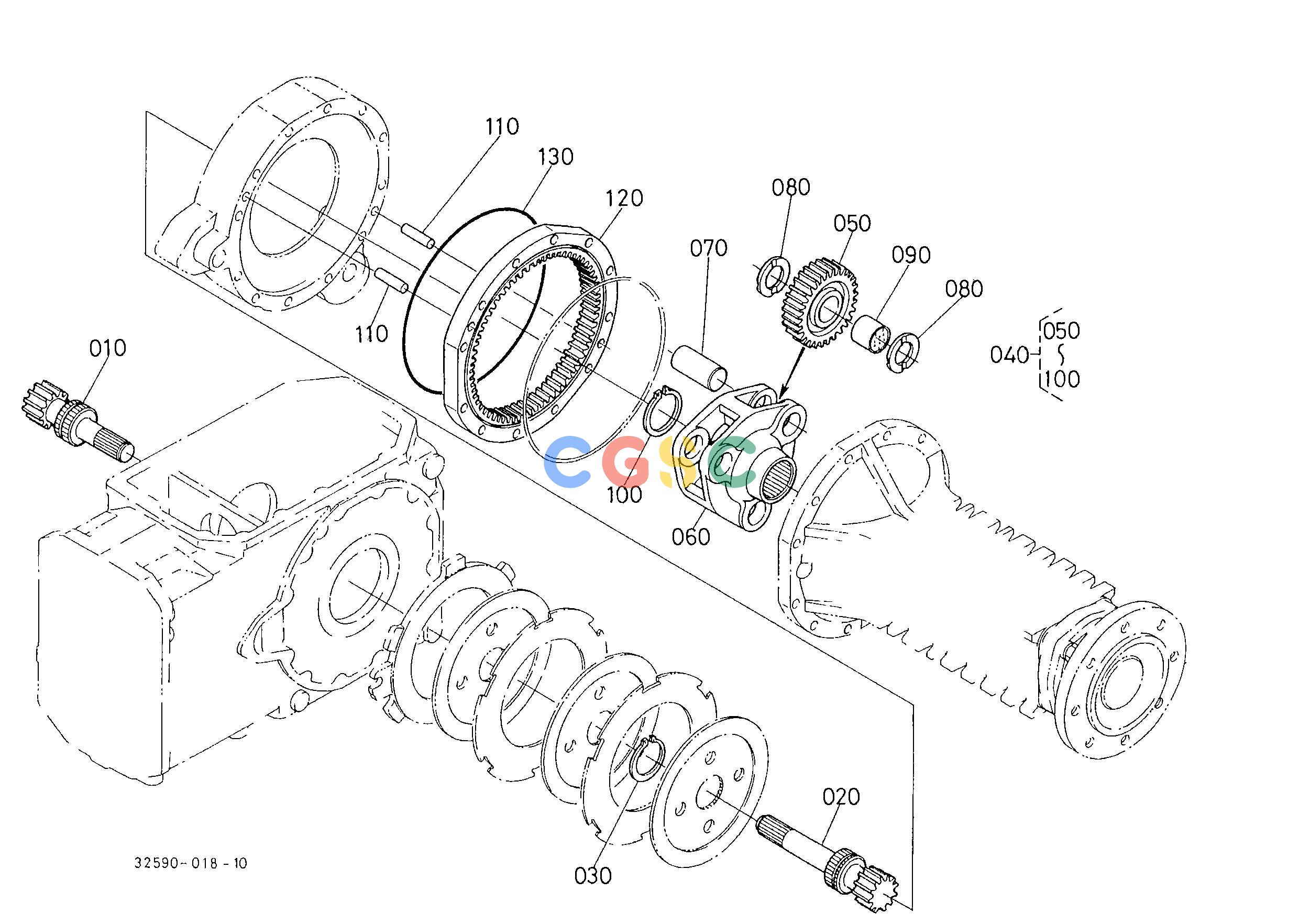

久保田零件查询T07602 PLANETARY GEAR REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
465 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259026710
|
[1] |
SHAFT BRAKE RH
|
3.8720(lbs); 1.760
|
| 020. |
3259026720
|
[1] |
SHAFT BRAKE LH
|
4.7080(lbs); 2.140
|
| 030. |
0461200550
|
[2] |
CIRCLIP EXTERNAL
|
0.0220(lbs); 0.010
|
| 040. |
3259026800
|
[2] |
ASSY GEAR PLANETARY
|
32.3400(lbs); 14.700
|
| 050. |
3259026810
|
[6] |
GEAR PLANETARY
|
4.9500(lbs); 2.250
|
| 060. |
3259026820
|
[2] |
SUPPORT PLANE.GEAR
|
13.2000(lbs); 6.000
|
| 070. |
3259026830
|
[6] |
PIN PLANETARY GEAR
|
1.2100(lbs); 0.550
|
| 080. |
3259026840
|
[12] |
COLLAR THRUST
|
0.0396(lbs); 0.018
|
| 090. |
3259026860
|
[6] |
BUSH
|
0.1100(lbs); 0.050
|
| 100. |
0461200600
|
[2] |
CIRCLIP EXTERNAL
|
0.0264(lbs); 0.012
|
| 110. |
3620048410
|
[4] |
PIN STRAIGHT
|
0.0110(lbs); 0.005
|
| 120. |
3259026850
|
[2] |
GEAR INTERNAL
|
11.8800(lbs); 5.400
|
| 130. |
3259026890
|
[2] |
O RING
|
0.0110(lbs); 0.005
|
