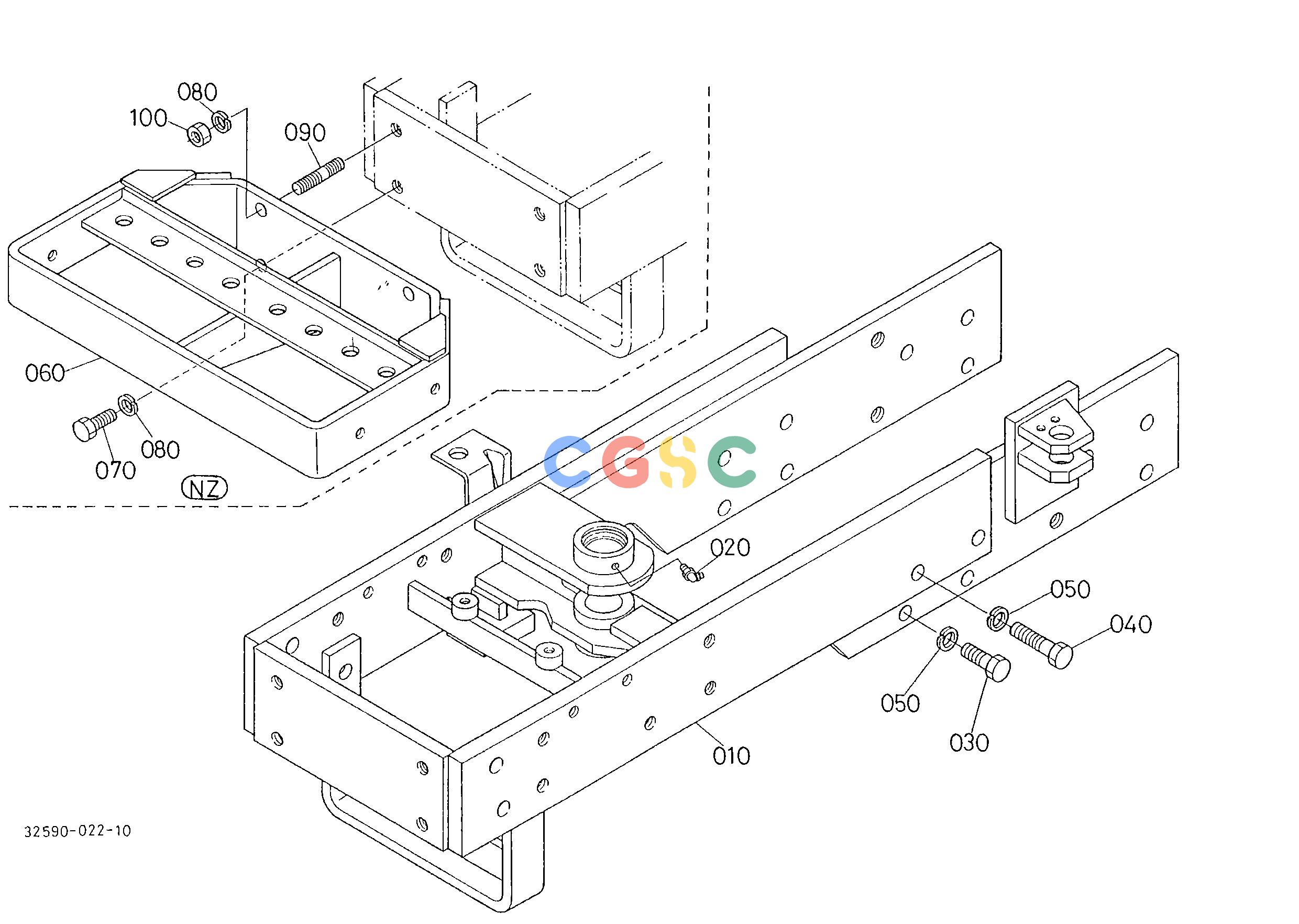

久保田零件查询T09402 FRONT AXLE BRACKET FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
578 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259013610
|
[1] |
FRAME FRONT AXLE
|
220.0000(lbs); 100.0
|
| 020. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 030. |
0117351640
|
[10] |
BOLT
|
0.1870(lbs); 0.085
|
| 040. |
0117351665
|
[4] |
BOLT
|
0.2574(lbs); 0.117
|
| 050. |
0451260160
|
[14] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 060. |
3253913870
|
[1] |
BUMPER
|
33.0000(lbs); 15.000
|
| 070. |
0117351435
|
[2] |
BOLT
|
0.1232(lbs); 0.056
|
| 080. |
0451260140
|
[4] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 090. |
0151761435
|
[2] |
STUD
|
0.1320(lbs); 0.060
|
| 100. |
0217450140
|
[2] |
NUT
|
0.0308(lbs); 0.014
|
