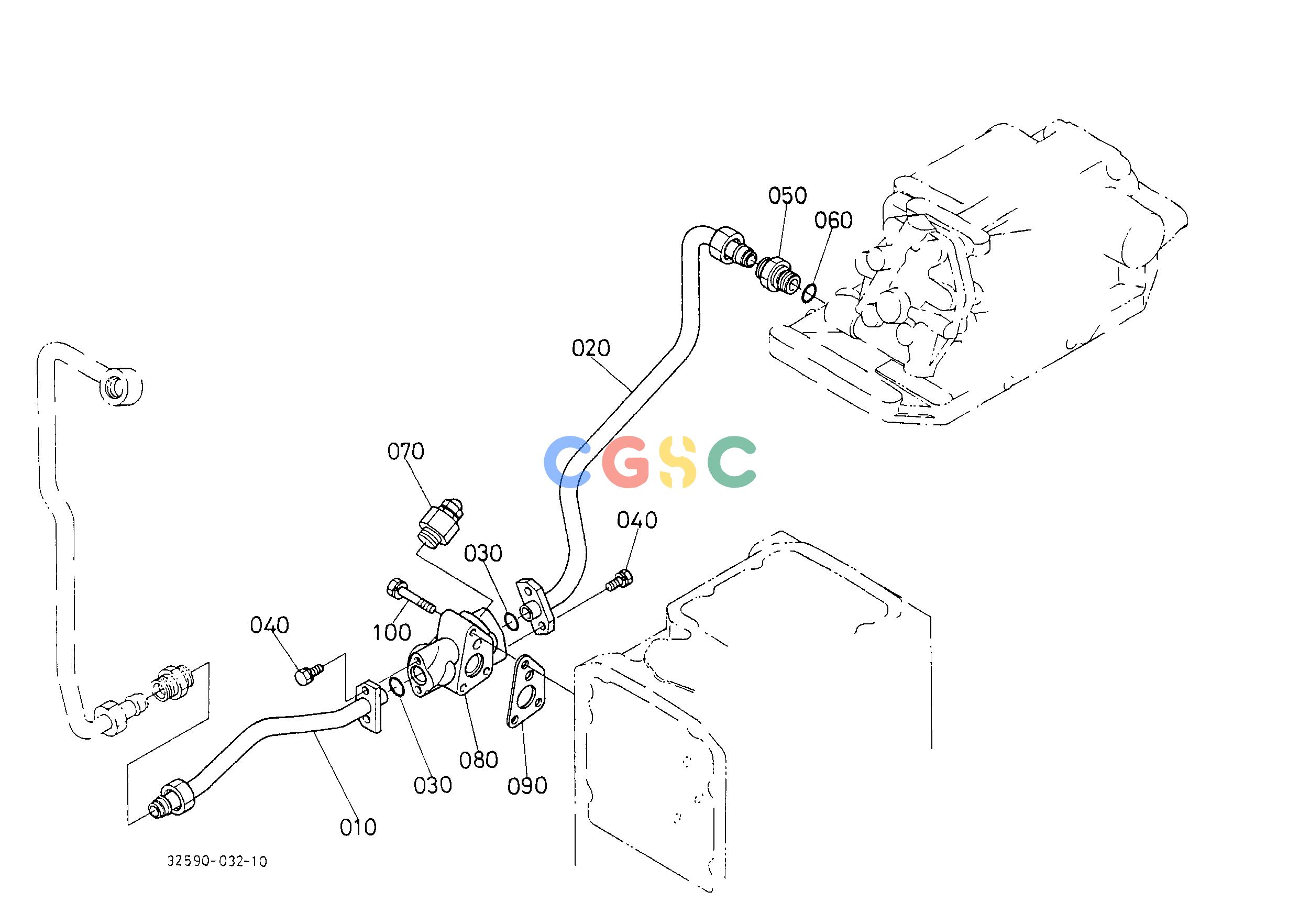

Pos.	Part No	Qty	Parts name	Comments
010.	3259038150	[1]	PIPE DELIVERY	; <=60323 0.0000(lbs); 0.000
010.	3259038152	[1]	PIPE DELIVERY	; =>60324 0.8800(lbs); 0.400
010.	3255038153	[1]	PIPE DELIVERY	; =>60982 0.1100(lbs); 0.050
020.	3259038162	[1]	PIPE DELIVERY	; <=60323 0.0000(lbs); 0.000
020.	3259038163	[1]	PIPE DELIVERY	; =>60324 1.3200(lbs); 0.600
020.	3255038160	[1]	PIPE DELIVERY	; =>60982 0.8800(lbs); 0.400
030.	0481000180	[2]	O RING	; <=60981 0.0022(lbs); 0.001
030.	0481000150	[2]	O RING	; =>60982 0.0022(lbs); 0.001
040.	0112350820	[4]	BOLT	0.0242(lbs); 0.011
050.	3259038200	[1]	JOINT	; <=60981 0.0000(lbs); 0.000
050.	3253038760	[1]	JOINT	; =>60982 0.1430(lbs); 0.065
060.	0481000180	[1]	O RING	0.0022(lbs); 0.001
070.	3259036630	[1]	ASSY VALVE RELIEF	0.5720(lbs); 0.260
080.	3259036600	[1]	ASSY BODY VALVE	; <=60981 3.8940(lbs); 1.770
080.	3255036600	[1]	ASSY BODY R.VALVE	; =>60982 4.1360(lbs); 1.880
090.	3253036630	[1]	GASKET	0.0110(lbs); 0.005
100.	0112350855	[3]	BOLT	0.0440(lbs); 0.020
