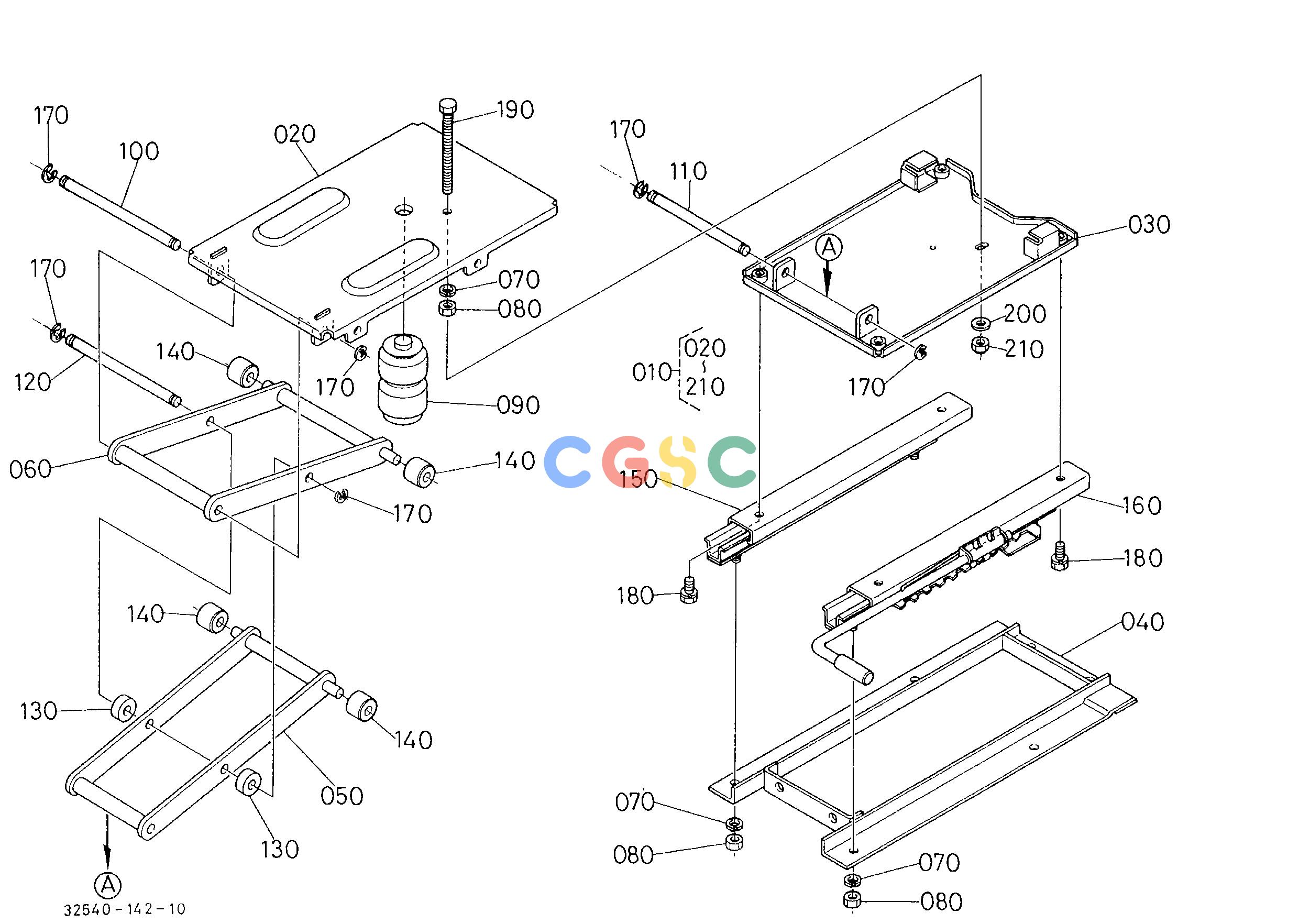

久保田零件查询T14500 SEAT SUSPENTION [COMPONENT PARTS] ## S.No.:L5450DT;<=60323 HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
915 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253018414
|
[1] |
ASSY SUSPENSION SEAT
|
0.0000(lbs); 0.000
|
| 020. |
3253097510
|
[1] |
FRAME UPPER
|
4.8400(lbs); 2.200
|
| 030. |
3253097520
|
[1] |
FRAME LOWER
|
3.9600(lbs); 1.800
|
| 040. |
3253097530
|
[1] |
FRAME UNDER
|
2.9700(lbs); 1.350
|
| 050. |
3253097540
|
[1] |
COMP.LINKAGE
|
0.4400(lbs); 0.200
|
| 060. |
3253097550
|
[1] |
COMP.LINKAGE
|
0.2200(lbs); 0.100
|
| 070. |
3253097560
|
[5] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 080. |
3253097570
|
[5] |
NUT
|
0.0440(lbs); 0.020
|
| 090. |
3253097580
|
[1] |
RUBBER
|
0.2640(lbs); 0.120
|
| 100. |
3253097590
|
[1] |
ROD
|
0.4400(lbs); 0.200
|
| 110. |
3253097610
|
[1] |
ROD
|
0.2860(lbs); 0.130
|
| 120. |
3253097620
|
[1] |
ROD
|
0.3960(lbs); 0.180
|
| 130. |
3253097630
|
[2] |
COLLAR
|
0.0330(lbs); 0.015
|
| 140. |
3253097640
|
[4] |
ROLLER
|
0.0330(lbs); 0.015
|
| 150. |
3253097650
|
[1] |
RAIL SLIDE B
|
1.6500(lbs); 0.750
|
| 160. |
3253097660
|
[1] |
RAIL SLIDE A
|
0.4400(lbs); 0.200
|
| 170. |
3253097670
|
[3] |
E RING
|
0.0066(lbs); 0.003
|
| 180. |
3253097680
|
[4] |
BOLT
|
0.0220(lbs); 0.010
|
| 190. |
3253097690
|
[1] |
BOLT
|
0.0880(lbs); 0.040
|
| 200. |
3253097710
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 210. |
3253097720
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
