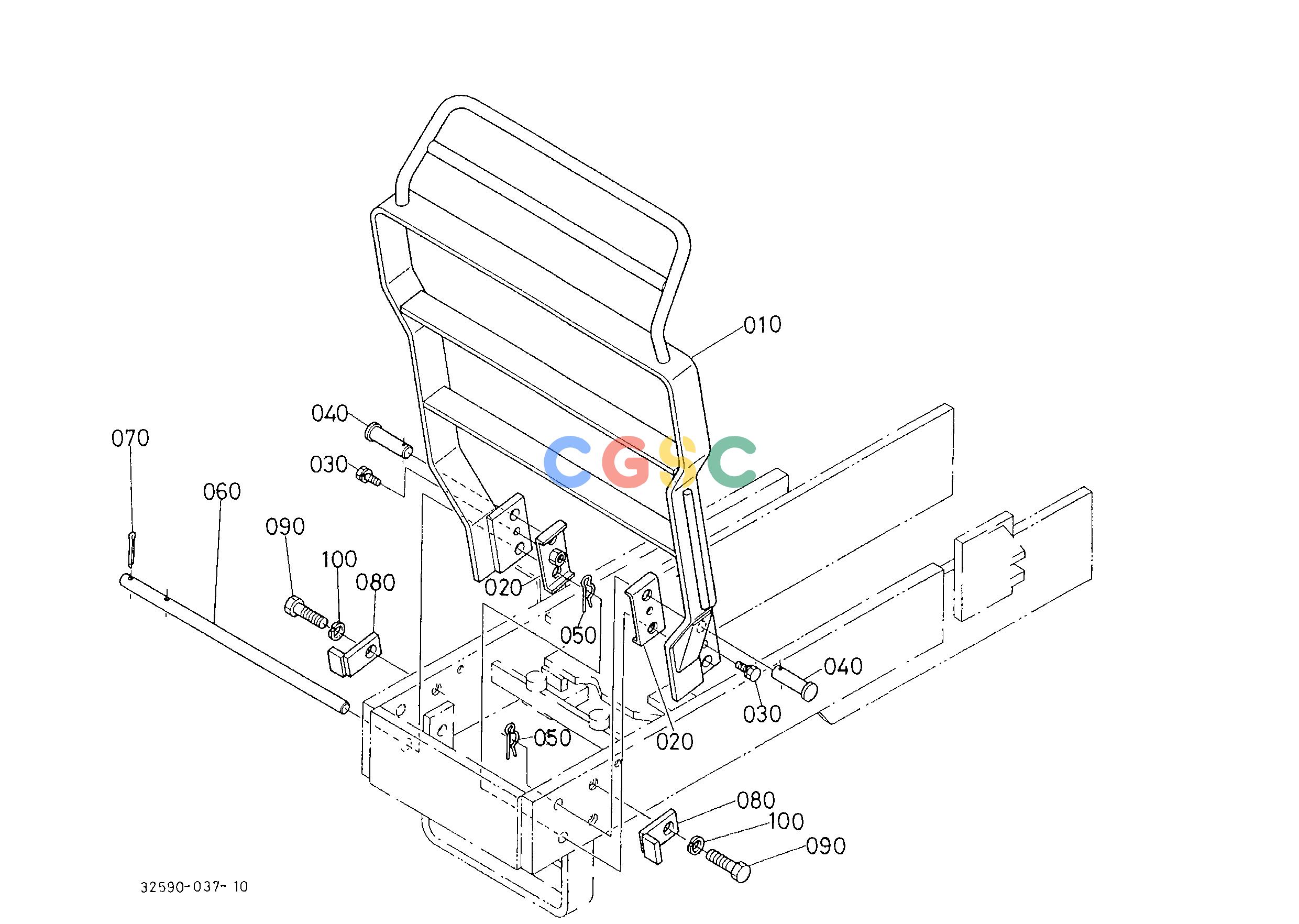

久保田零件查询T14902 FRONT GUARD HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
1027 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259018010
|
[1] |
GUARD FRONT
|
33.0000(lbs); 15.000
|
| 020. |
3259018020
|
[2] |
SPACER
|
1.1440(lbs); 0.520
|
| 030. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 040. |
0512251865
|
[2] |
PIN JOINT
|
0.2970(lbs); 0.135
|
| 050. |
0551551600
|
[3] |
PIN SNAP
|
0.0154(lbs); 0.007
|
| 060. |
3259018030
|
[1] |
ROD
|
1.9140(lbs); 0.870
|
| 070. |
0551150530
|
[1] |
PIN SPLIT
|
0.0132(lbs); 0.006
|
| 080. |
3259018040
|
[2] |
STOPPER
|
0.4620(lbs); 0.210
|
| 090. |
0117351655
|
[2] |
BOLT
|
0.2420(lbs); 0.110
|
| 100. |
0451260160
|
[2] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
