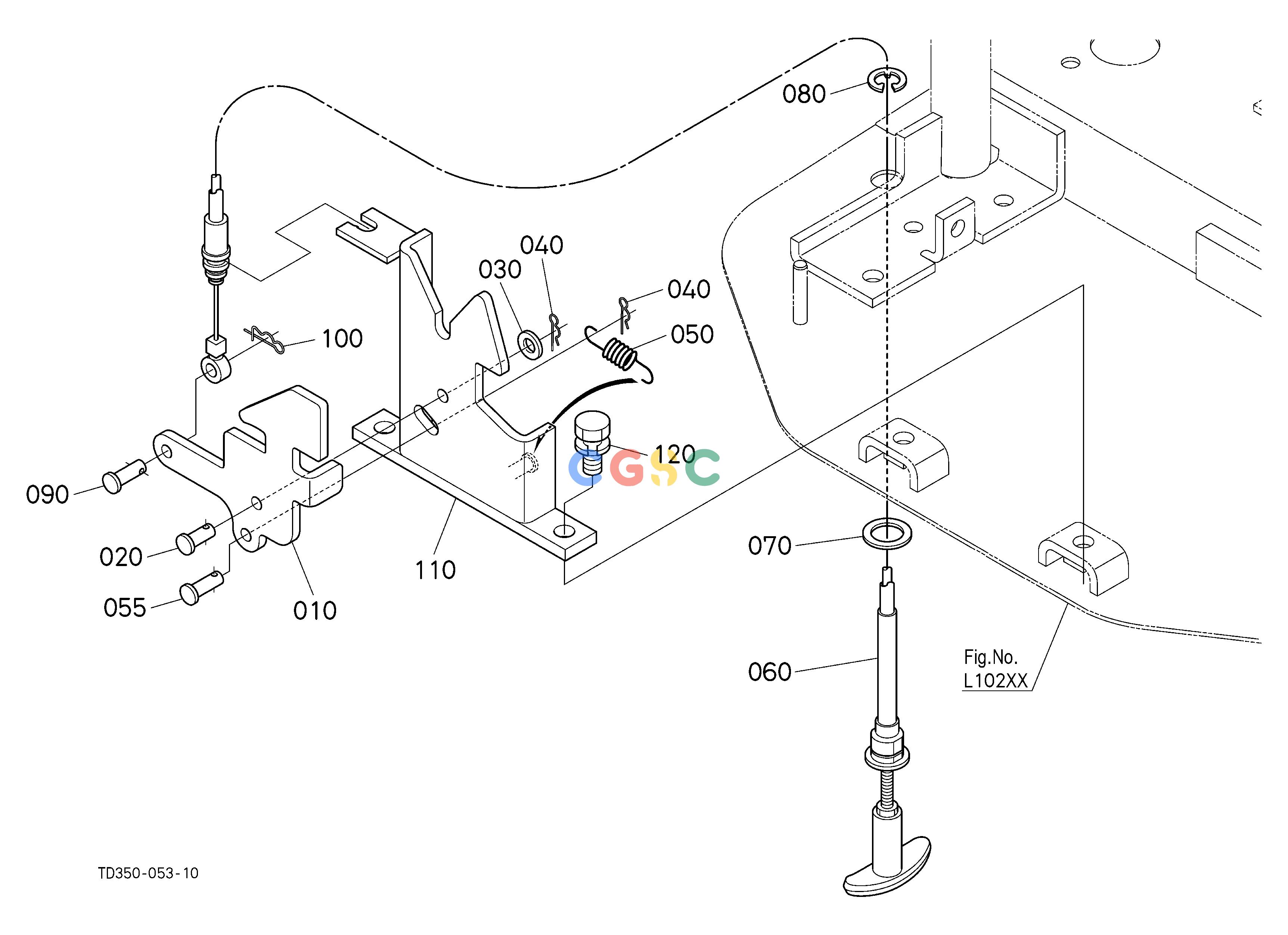

久保田零件查询L10900 BONNET LOCK [OLD] ## S.No.<=40782 S.No.;<=40782 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
326 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD35041212
|
[1] |
FITTING,METAL(LOCK)
|
0.3300(lbs); 0.150
|
| 020. |
0512250614
|
[1] |
PIN,JOINT
|
0.0088(lbs); 0.004
|
| 030. |
0401350060
|
[1] |
WASHER, PLAIN
|
0.0022(lbs); 0.001
|
| 040. |
0552550600
|
[2] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
| 050. |
T106364890
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 055. |
0512250618
|
[1] |
PIN JOINT
|
0.0088(lbs); 0.004
|
| 060. |
TD35041222
|
[1] |
CABLE
|
0.2200(lbs); 0.100
|
| 070. |
1J86414430
|
[1] |
WASHER
|
0.0440(lbs); 0.020
|
| 080. |
0461350120
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
0512250618
|
[1] |
PIN JOINT
|
0.0088(lbs); 0.004
|
| 100. |
5008034110
|
[1] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
| 110. |
TD35041250
|
[1] |
STAY(LOCK BONNET)
|
0.9020(lbs); 0.410
|
| 120. |
0112350820
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
