久保田零件查询V44500 BONNET LOCK KIT [OPTION] ## S.No.<=40782 S.No.;<=40782 OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
216 次

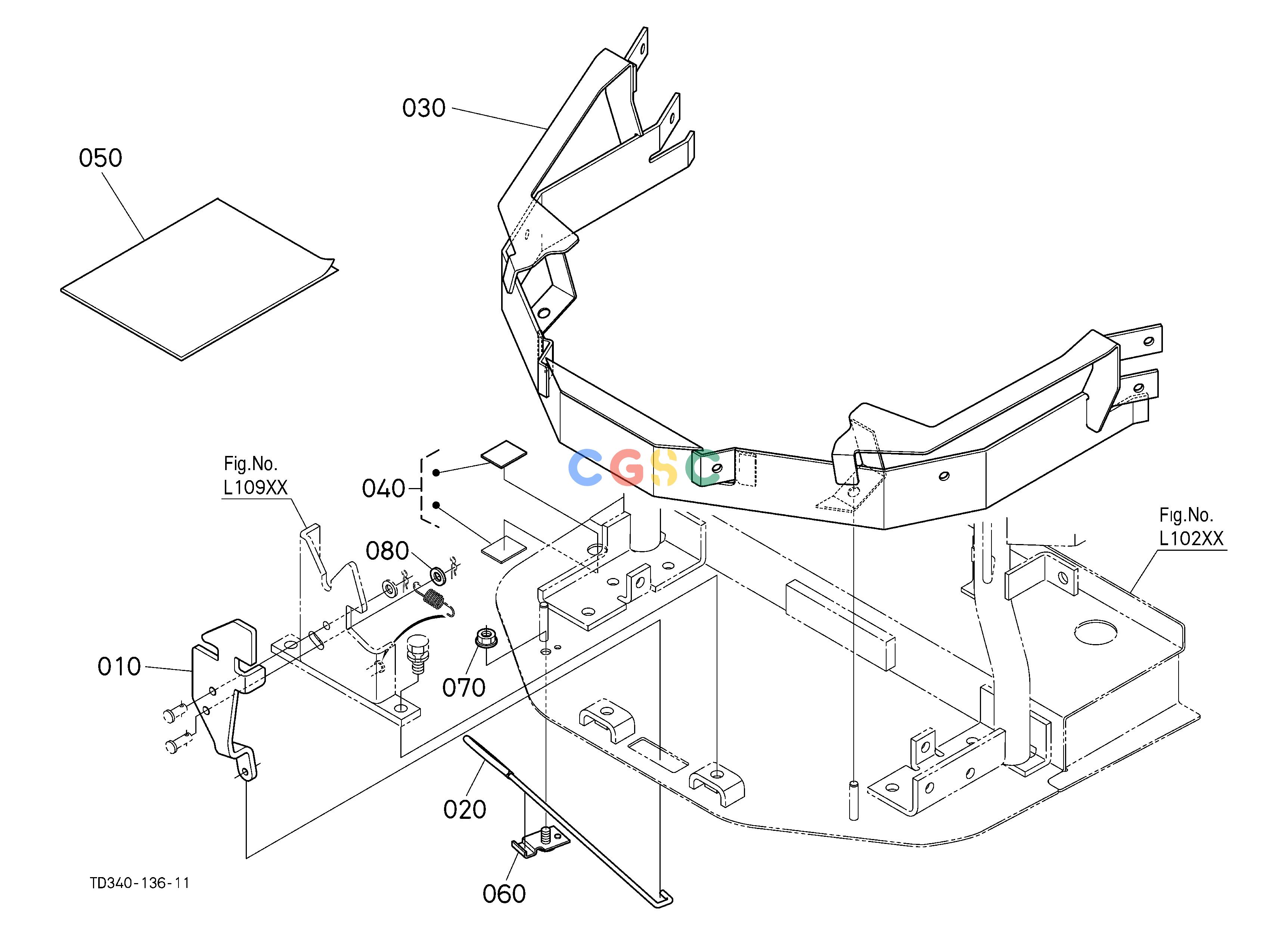

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD35041213
|
[1] |
FITTING,METAL(LOCK)
|
0.3300(lbs); 0.150
|
| 020. |
TD35083470
|
[1] |
LEVER(BONNET)
|
0.0616(lbs); 0.028
|
| 030. |
TD35041085
|
[1] |
SKIRT(FRONT,UNDER)
|
3.4100(lbs); 1.550
|
| 040. |
T435075320
|
[1] |
TAPE(25-40,BK)
|
0.0044(lbs); 0.002
|
| 050. |
---- |
[1] |
MANUAL,INST
|
0.0022(lbs); 0.001
|
| 060. |
TD35041200
|
[1] |
STAY(BONNET)
|
0.0286(lbs); 0.013
|
| 070. |
0276150060
|
[1] |
NUT,FLANGE
|
0.0066(lbs); 0.003
|
| 080. |
0401350060
|
[1] |
WASHER, PLAIN
|
0.0022(lbs); 0.001
|
