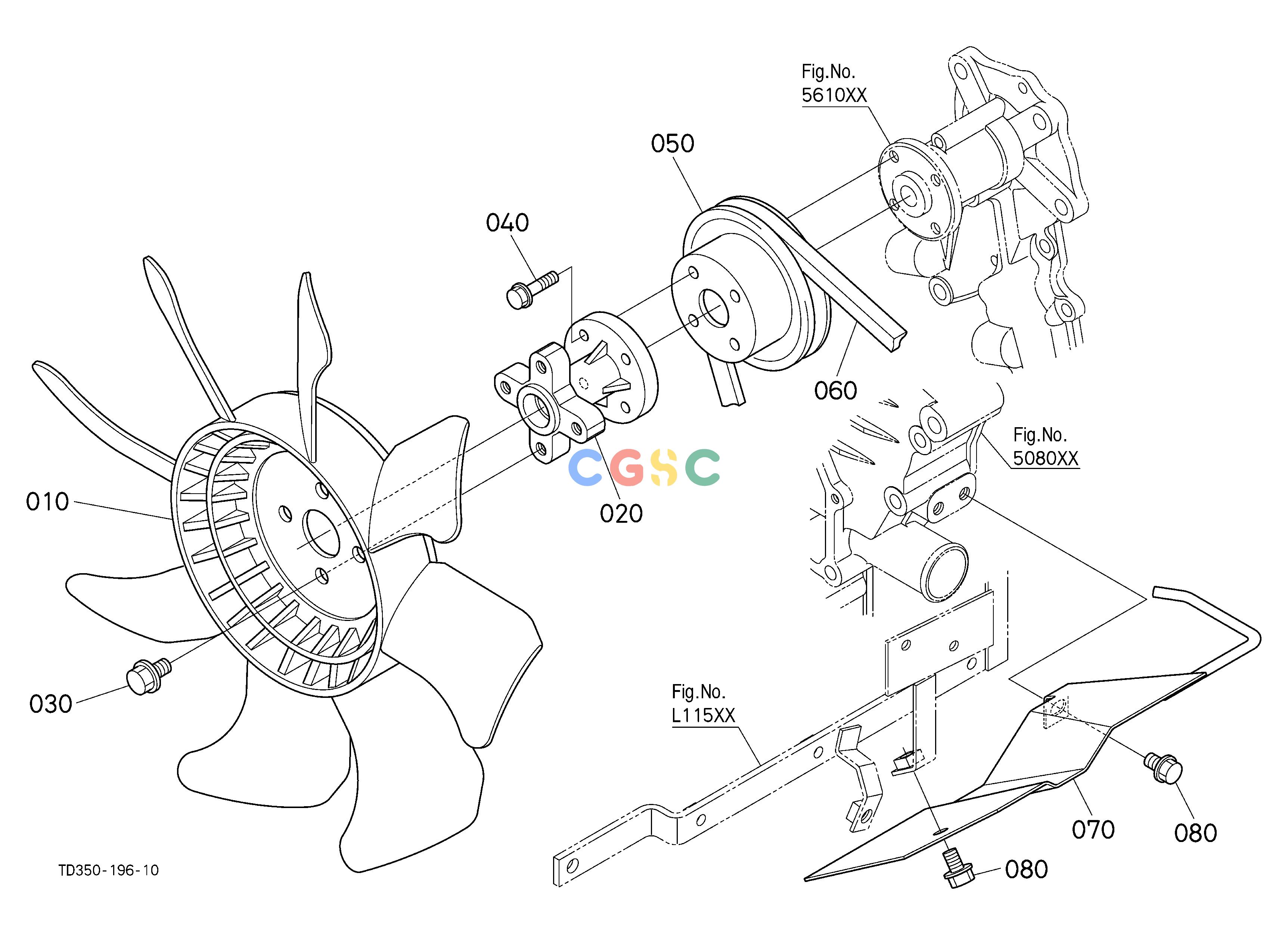

久保田零件查询A40104 FAN [CA] [NEW] ## S.No.>=40486 S.No.;>=40486 COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
669 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3455016210
|
[1] |
FAN
|
2.6180(lbs); 1.190
|
| 020. |
TD17016220
|
[1] |
FLANGE,FAN
|
0.4576(lbs); 0.208
|
| 030. |
0175450816
|
[4] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 040. |
0175450625
|
[4] |
BOLT,FLANGE
|
0.0176(lbs); 0.008
|
| 050. |
1K41174250
|
[1] |
PULLEY,FAN
|
0.8800(lbs); 0.400
|
| 060. |
1G17197010
|
[1] |
BELT,FAN
|
0.2970(lbs); 0.135
|
| 070. |
TD35316190
|
[1] |
COVER(BELT)
|
1.1000(lbs); 0.500
|
| 080. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
