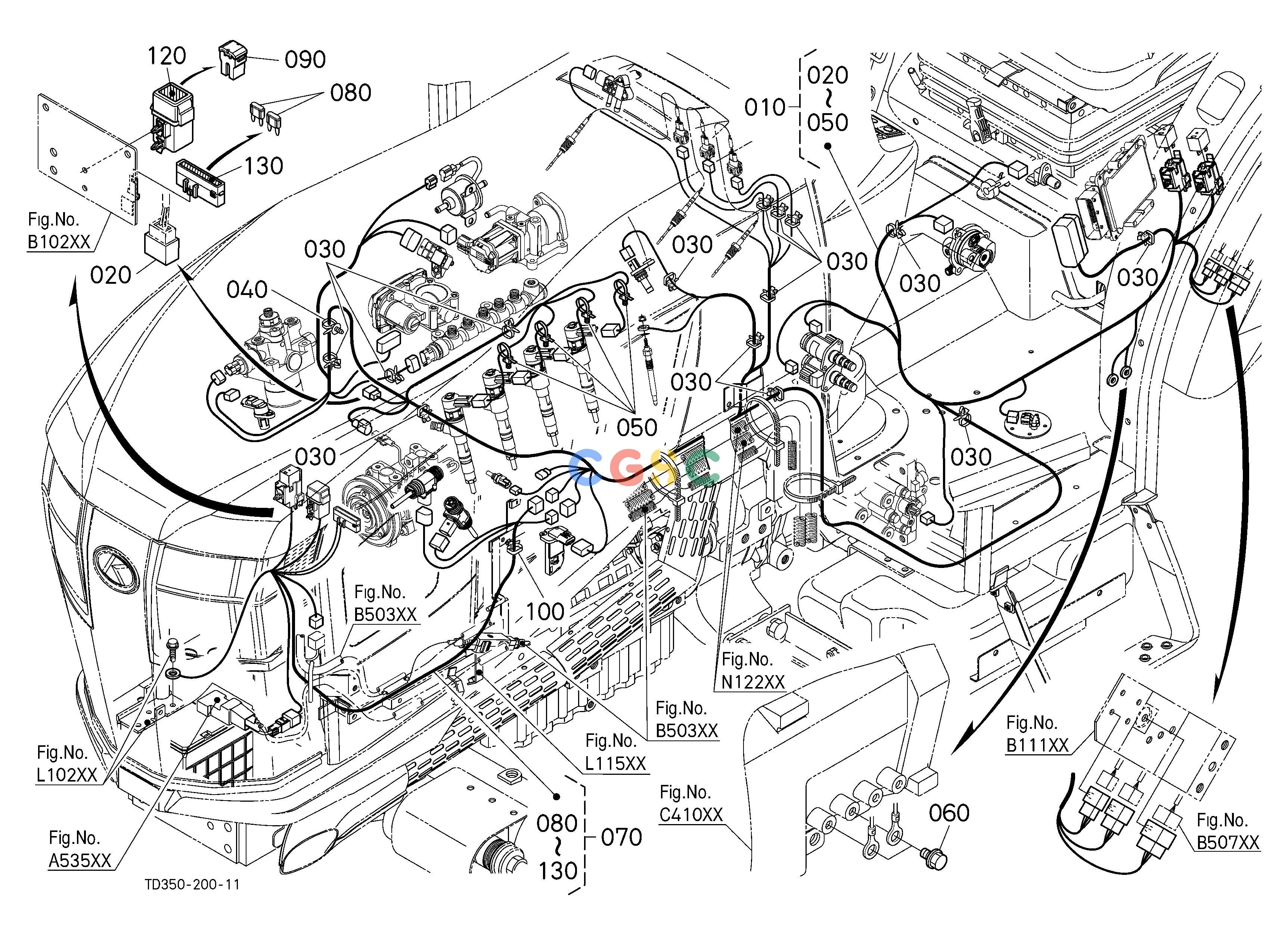

久保田零件查询B50103 ELECTRICAL WIRING [CA] [OLD] ## S.No.40486 to 40903 S.No.;40486 to 40903 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
1003 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD35030365
|
[1] |
HARNESS,WIRE(E/G,HST)
|
6.1600(lbs); 2.800
|
| 020. |
TD06075390
|
[1] |
DIODE
|
0.0044(lbs); 0.002
|
| 030. |
T106030540
|
[14] |
CLIP
|
0.0220(lbs); 0.010
|
| 040. |
T363530540
|
[1] |
CLIP
|
0.0044(lbs); 0.002
|
| 050. |
RP42154110
|
[4] |
CLAMP(7047-3566-30)
|
0.0044(lbs); 0.002
|
| 060. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
TD35330812
|
[1] |
W/H
|
0.0000(lbs); 0.000
|
| 070. |
TD35330813
|
[1] |
W/H
|
0.0000(lbs); 0.000
|
| 070. |
TD35330814
|
[1] |
W/H
|
0.7700(lbs); 0.350
|
| 080. |
T106030460
|
[2] |
FUSE,MINI(20A)
|
0.0044(lbs); 0.002
|
| 090. |
T106030520
|
[1] |
FUSE,SLOW BLOW(40A)
|
0.0154(lbs); 0.007
|
| 100. |
T106030540
|
[1] |
CLIP
|
0.0220(lbs); 0.010
|
| 120. |
TD35330450
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
| 130. |
TD35330460
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
