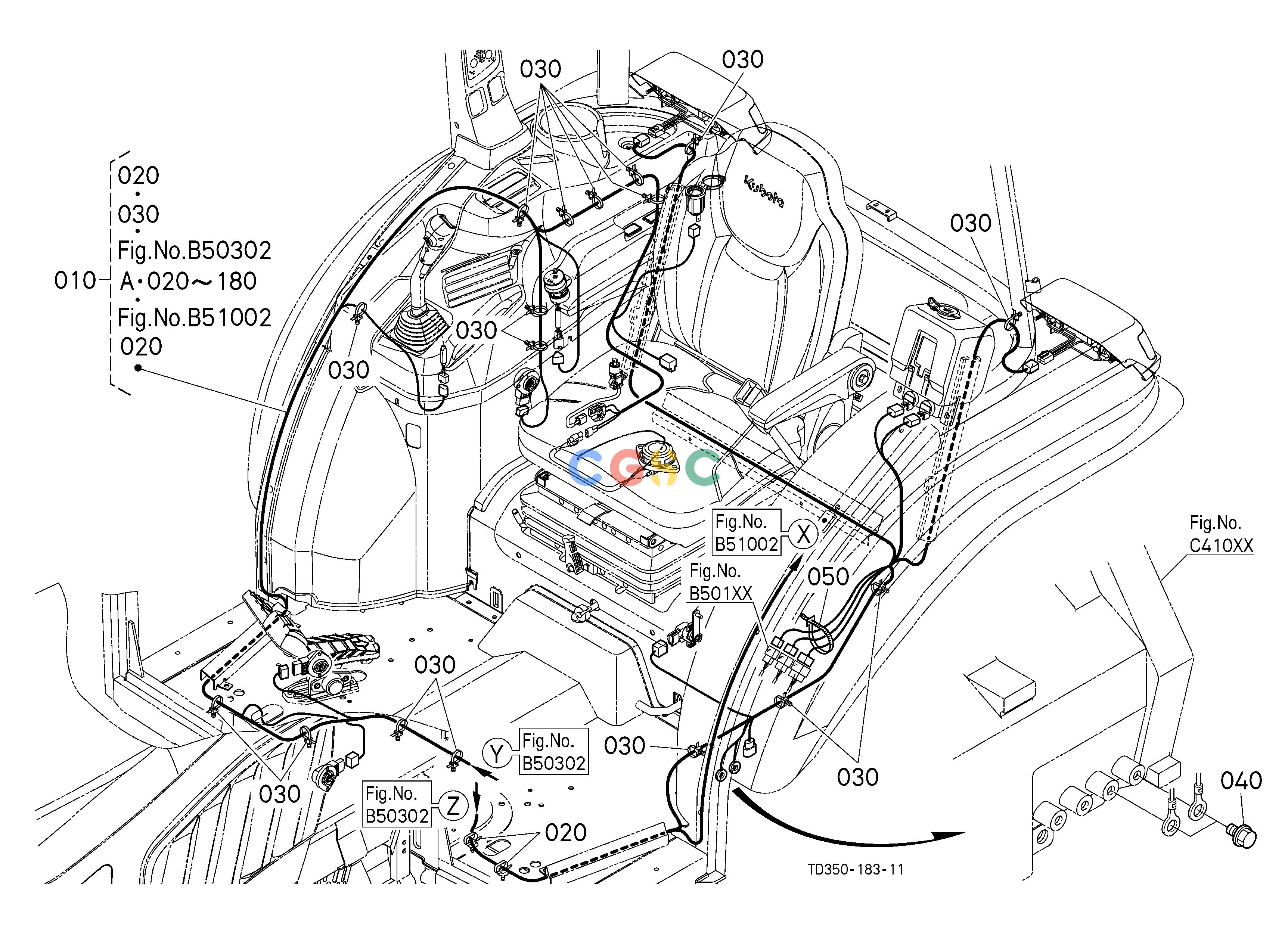

久保田零件查询B50702 ELECTRICAL WIRING (REAR) [CA] [OLD] ## S.No.<=30527 S.No.;<=30527 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
939 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD35088313
|
[1] |
HARNESS,WIRE(HQ)
|
0.0000(lbs); 0.000
|
| 010. |
TD35088315
|
[1] |
HARNESS,WIRE(HQ)
|
17.1600(lbs); 7.800
|
| 020. |
T363530540
|
[2] |
CLIP
|
0.0044(lbs); 0.002
|
| 030. |
RP42154110
|
[17] |
CLAMP(7047-3566-30)
|
0.0044(lbs); 0.002
|
| 040. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 050. |
5358164150
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
