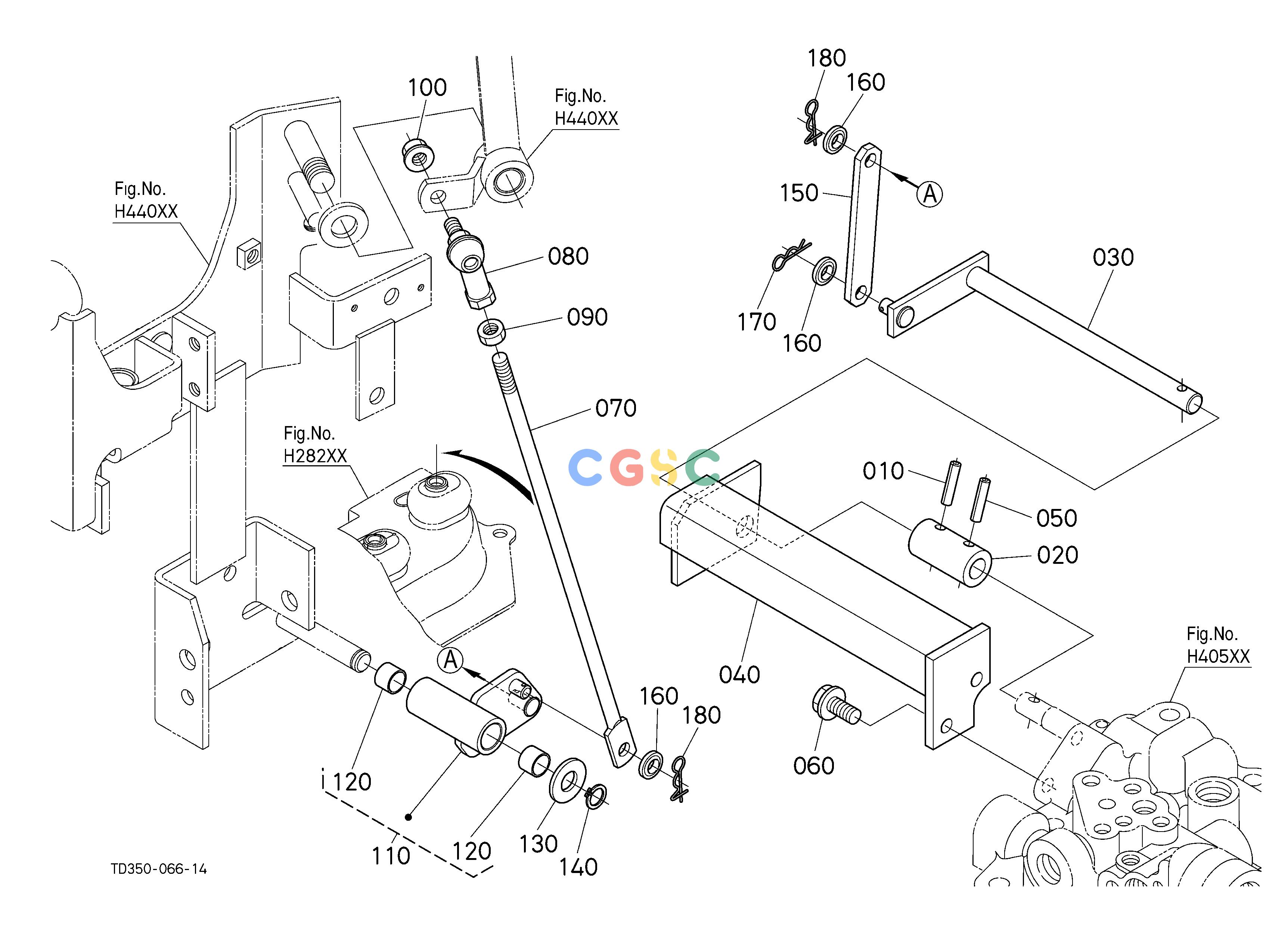

久保田零件查询H45001 POSITION AND DRAFT CONTROL LINK [NEW] ## S.No.>=40867 S.No.;>=40867 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
615 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
0541100525
|
[1] |
PIN,SPRING
|
0.0044(lbs); 0.002
|
| 020. |
TD27036220
|
[1] |
COUPLING
|
0.1760(lbs); 0.080
|
| 030. |
TD35035112
|
[1] |
LEVER(2,POSITION)
|
0.4400(lbs); 0.200
|
| 040. |
TD27035152
|
[1] |
BRACKET,LINK
|
1.3420(lbs); 0.610
|
| 050. |
0541100525
|
[1] |
PIN,SPRING
|
0.0044(lbs); 0.002
|
| 060. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 070. |
TD35035230
|
[1] |
ROD(POSITION LEVER)
|
0.1980(lbs); 0.090
|
| 080. |
4540495770
|
[1] |
BALL,LINK
|
0.1100(lbs); 0.050
|
| 090. |
0211450080
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 100. |
0275150080
|
[1] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 110. |
TD35035582
|
[1] |
LEVER,ASSY
|
0.4180(lbs); 0.190
|
| 120. |
0851101210
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 130. |
0401350120
|
[1] |
WASHER,PLAIN
|
0.0154(lbs); 0.007
|
| 140. |
0461200120
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 150. |
TD35035162
|
[1] |
LINK(POSITION LEVER)
|
0.1100(lbs); 0.050
|
| 160. |
0471700810
|
[3] |
WASHERSEAL
|
0.0022(lbs); 0.001
|
| 170. |
0552550800
|
[1] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 180. |
5230034120
|
[2] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
