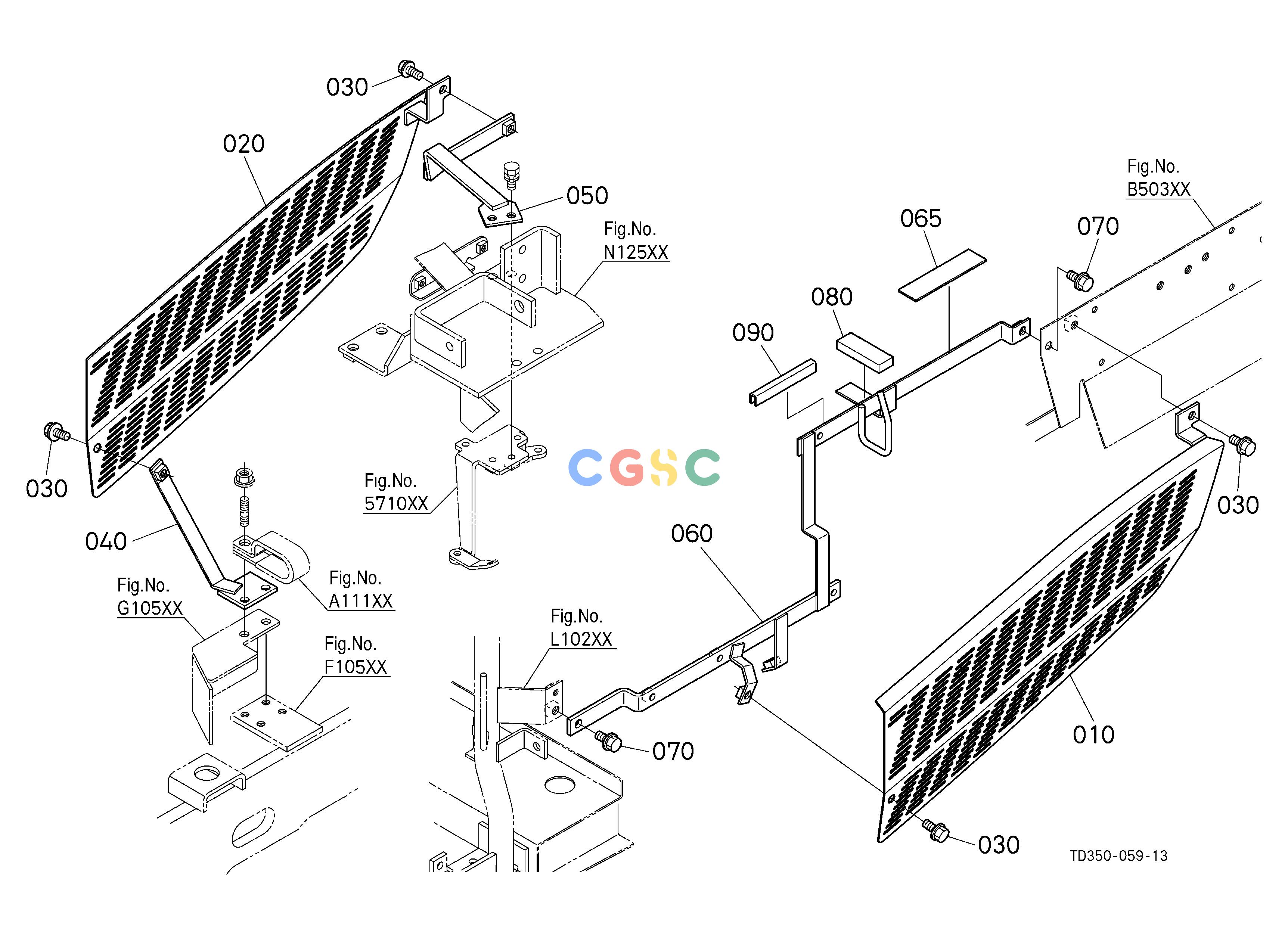

久保田零件查询L11502 SIDE COVER LOWER [CA] [OLD] ## S.No.<=40485 S.No.;<=40485 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
872 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD35041374
|
[1] |
SKIRT
|
1.6720(lbs); 0.760
|
| 020. |
TD35041383
|
[1] |
SKIRT
|
1.6500(lbs); 0.750
|
| 030. |
3081018870
|
[4] |
BOLT,FLANGE
|
0.0264(lbs); 0.012
|
| 040. |
TD35041402
|
[1] |
STAY
|
0.2860(lbs); 0.130
|
| 050. |
TD35041415
|
[1] |
STAY
|
0.4840(lbs); 0.220
|
| 060. |
TD35042273
|
[1] |
STAY
|
0.0000(lbs); 0.000
|
| 060. |
TD35042274
|
[1] |
STAY
|
1.1660(lbs); 0.530
|
| 065. |
3T20019170
|
[1] |
TRIM
|
0.0132(lbs); 0.006
|
| 065. |
3C75475120
|
[1] |
CUSHION
|
0.0022(lbs); 0.001
|
| 070. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 080. |
TD35030350
|
[1] |
CUSHION(HOSE,INLET)
|
0.0550(lbs); 0.025
|
| 090. |
5250021190
|
[1] |
RUBBER,U TYPE
|
0.0176(lbs); 0.008
|
