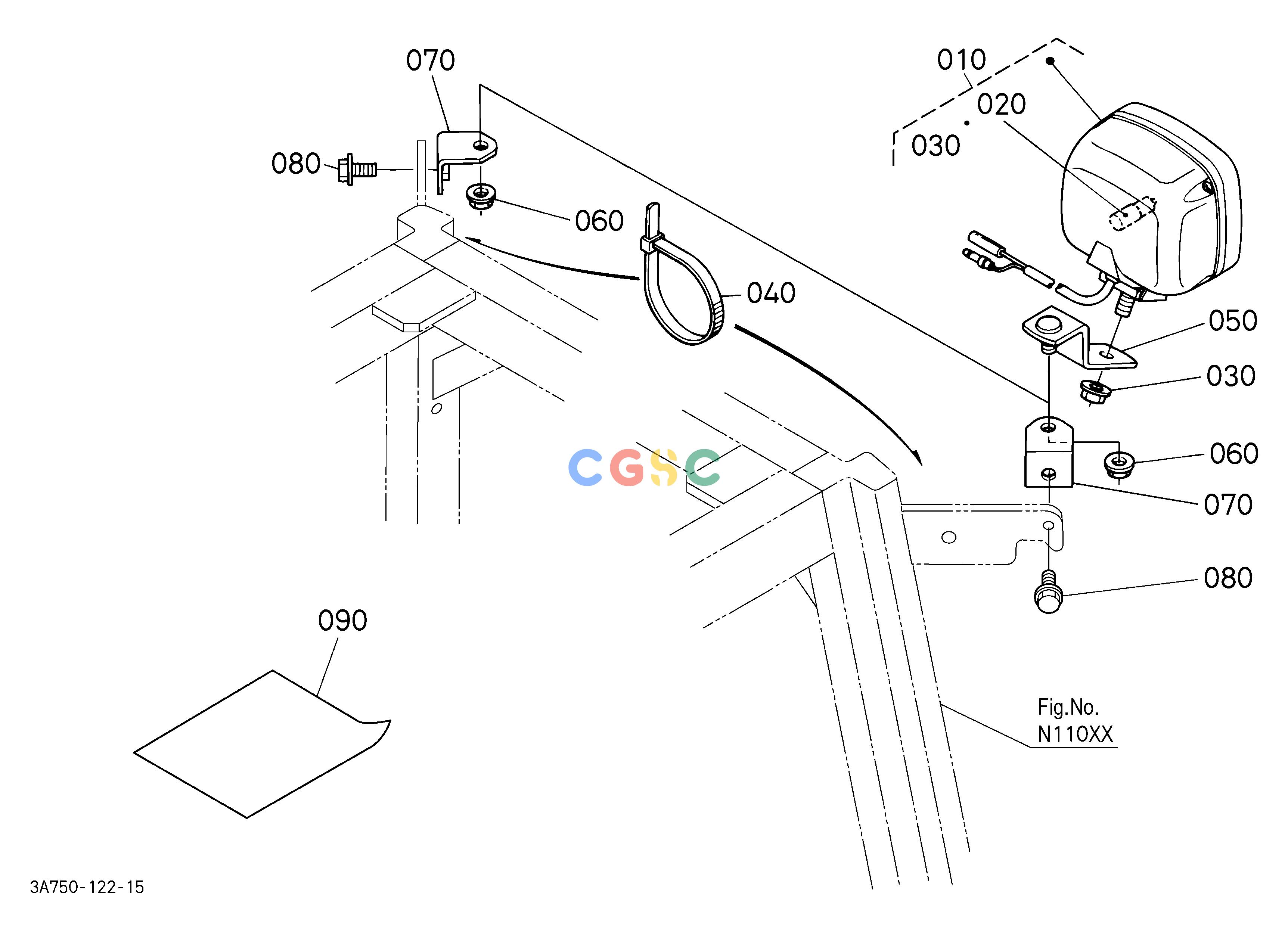

久保田零件查询U13002 WORKING LIGHT KIT [A] [OLD TYPE] [OPTION] ## S.No.;B:<=53340 OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
445 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3G71075910
|
[2] |
LAMP
|
0.5940(lbs); 0.270
|
| 020. |
3G71075900
|
[2] |
BLUB
|
0.0154(lbs); 0.007
|
| 030. |
0276360080
|
[2] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 040. |
5358164150
|
[2] |
BAND,CORD
|
0.0044(lbs); 0.002
|
| 050. |
3G71075310
|
[2] |
STAY,WORKING LIGHT
|
0.2200(lbs); 0.100
|
| 060. |
0276360080
|
[2] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 070. |
3G71075322
|
[2] |
STAY,WORKING LIGHT
|
0.1034(lbs); 0.047
|
| 080. |
3081018870
|
[2] |
BOLT,FLANGE
|
0.0264(lbs); 0.012
|
| 090. |
99999-99999
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
