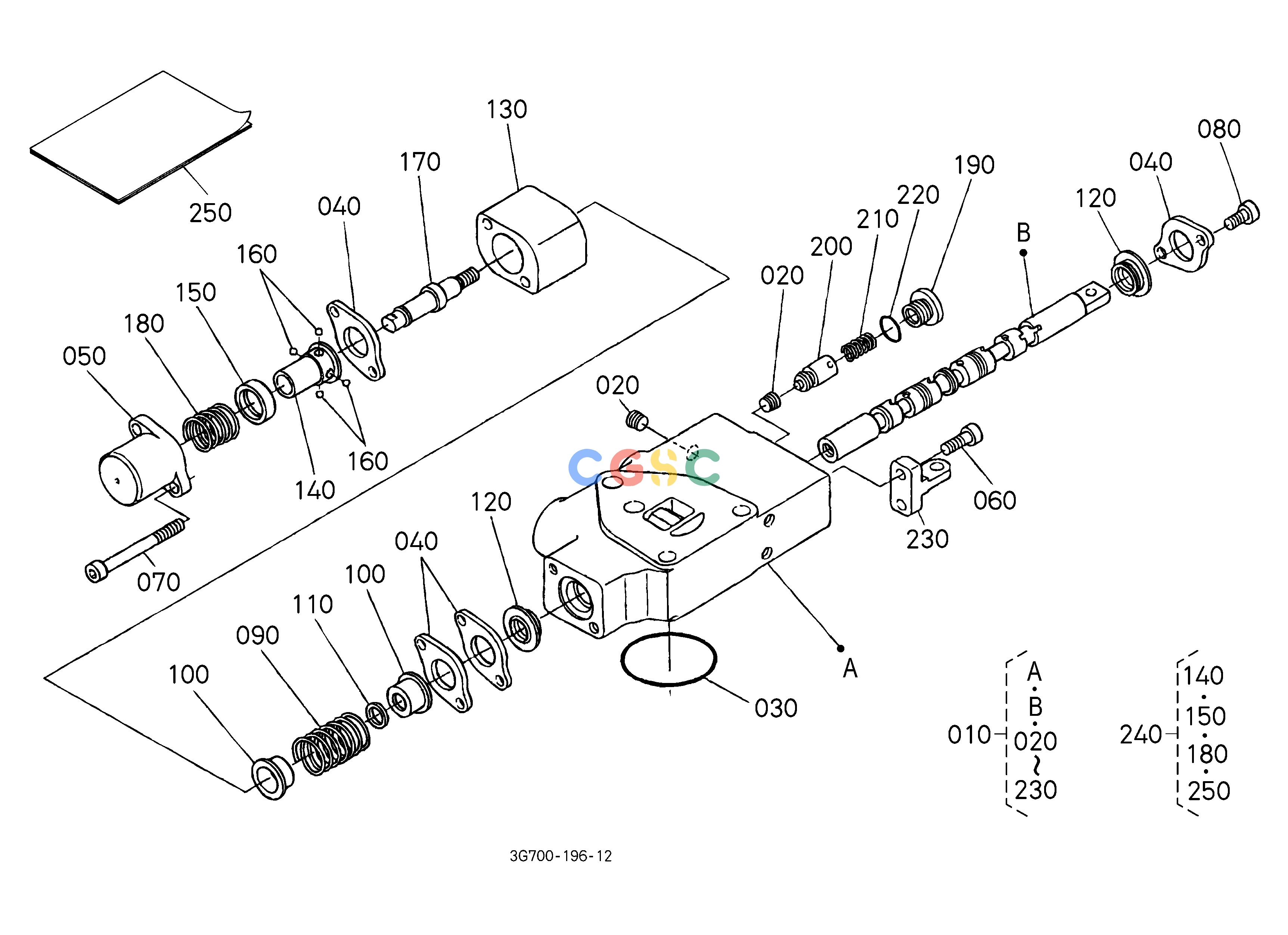

久保田零件查询U70501 AUXILIARY CONTROL VALVE (FD) [COMPONENT PARTS] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3G71082812
|
[1] |
VALVE AUX.CONTROL
|
6.6000(lbs); 3.000
|
| 010. |
3G71082813
|
[1] |
VALVE AUX.CONTROL
|
7.1060(lbs); 3.230
|
| 010. |
3G71082814
|
[1] |
VALVE AUX.CONTROL
|
6.6000(lbs); 3.000
|
| 020. |
3F74006020
|
[2] |
PLUG
|
0.0022(lbs); 0.001
|
| 030. |
0481507560
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 040. |
3F74006040
|
[4] |
COVER
|
0.0308(lbs); 0.014
|
| 050. |
3F74006050
|
[1] |
COVER
|
0.1694(lbs); 0.077
|
| 060. |
0131110616
|
[2] |
BOLT HEX-SOC-HD
|
0.0110(lbs); 0.005
|
| 070. |
0131110660
|
[2] |
BOLT HEX-SOC-HD
|
0.0154(lbs); 0.007
|
| 080. |
0131110612
|
[2] |
BOLT HEX-SOC-HD
|
0.0110(lbs); 0.005
|
| 090. |
3F74006650
|
[1] |
SPRING
|
0.0396(lbs); 0.018
|
| 100. |
3F74006070
|
[2] |
SEAT SPRING
|
0.0110(lbs); 0.005
|
| 110. |
3F74006660
|
[1] |
SPACER
|
0.0044(lbs); 0.002
|
| 120. |
3F74006080
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
| 130. |
3F74006670
|
[1] |
COVER
|
0.2640(lbs); 0.120
|
| 140. |
3F74006680
|
[1] |
BUSH
|
0.0418(lbs); 0.019
|
| 140. |
3A75106680
|
[1] |
BUSH
|
0.0396(lbs); 0.018
|
| 150. |
3F74006690
|
[1] |
RING
|
0.0220(lbs); 0.010
|
| 150. |
3A75106690
|
[1] |
RING
|
0.0154(lbs); 0.007
|
| 160. |
0771503205
|
[4] |
BALL
|
0.0022(lbs); 0.001
|
| 170. |
3F74006710
|
[1] |
BOLT SPACER
|
0.0880(lbs); 0.040
|
| 180. |
3F74006480
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 180. |
3A75106480
|
[1] |
SPRING
|
0.0264(lbs); 0.012
|
| 190. |
3F74006700
|
[1] |
PLUG
|
0.0440(lbs); 0.020
|
| 200. |
3F74006110
|
[1] |
PLUNGER
|
0.0242(lbs); 0.011
|
| 210. |
3F74006120
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 220. |
0481000120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 220. |
0481700120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 230. |
3F74006150
|
[1] |
ARM
|
0.0704(lbs); 0.032
|
| 230. |
H3F7006150
|
[1] |
ARM
|
0.0704(lbs); 0.032
|
| 240. |
3A75197450
|
[1] |
KIT SPRING
|
0.0968(lbs); 0.044
|
| 250. |
9999999999
|
[1] |
MANUAL INSTRUCTION
|
0.0000(lbs); 0.000
|
