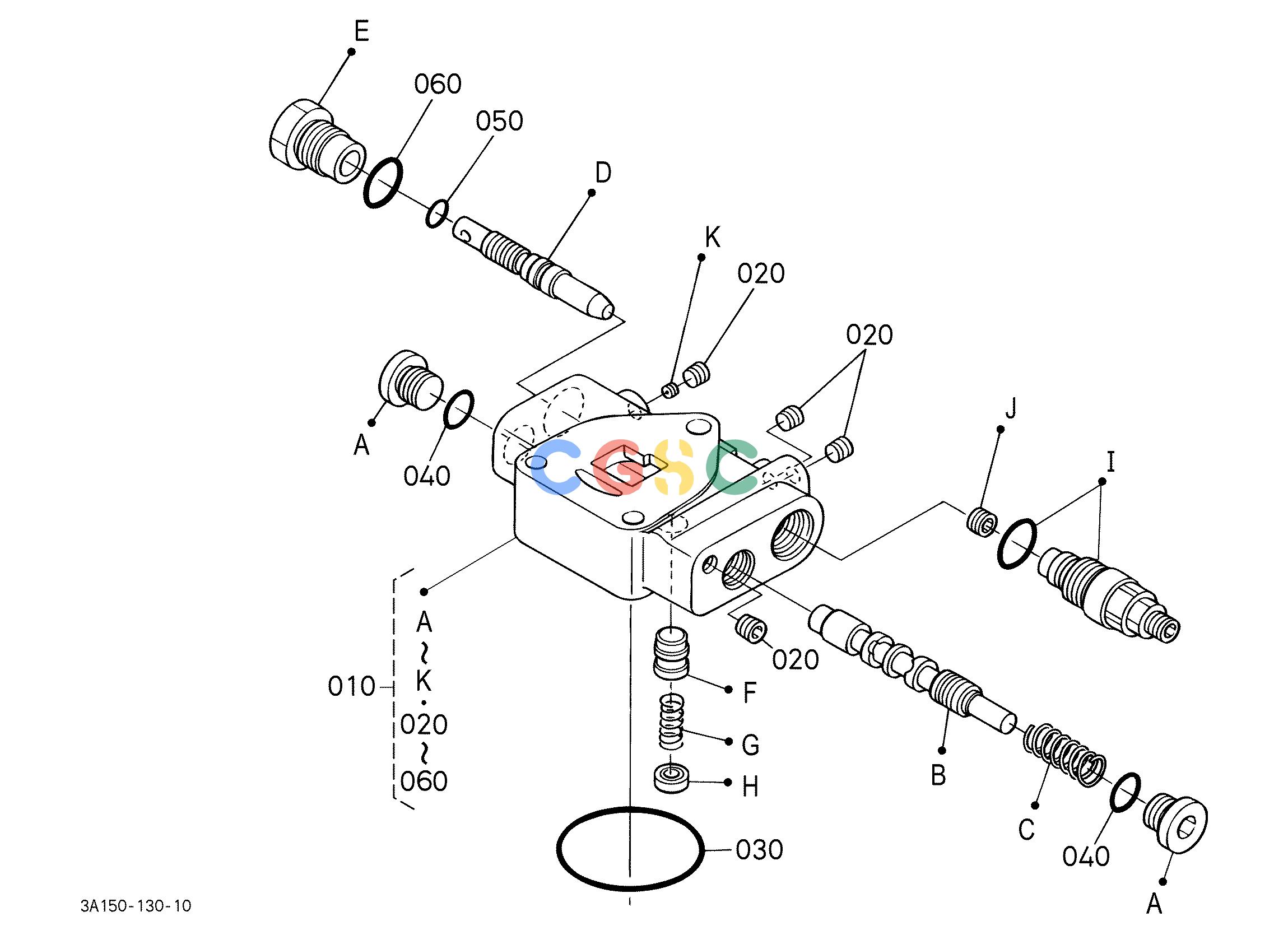

久保田零件查询U70503 AUXILIARY CONTROL VALVE (FC) [COMPONENT PARTS] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
383 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3A15182610
|
[1] |
VALVE AUX.CONTROL
|
4.8400(lbs); 2.200
|
| 020. |
3F74006020
|
[4] |
PLUG
|
0.0022(lbs); 0.001
|
| 030. |
0481507560
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 040. |
0481000140
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481700140
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481000090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481700090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
