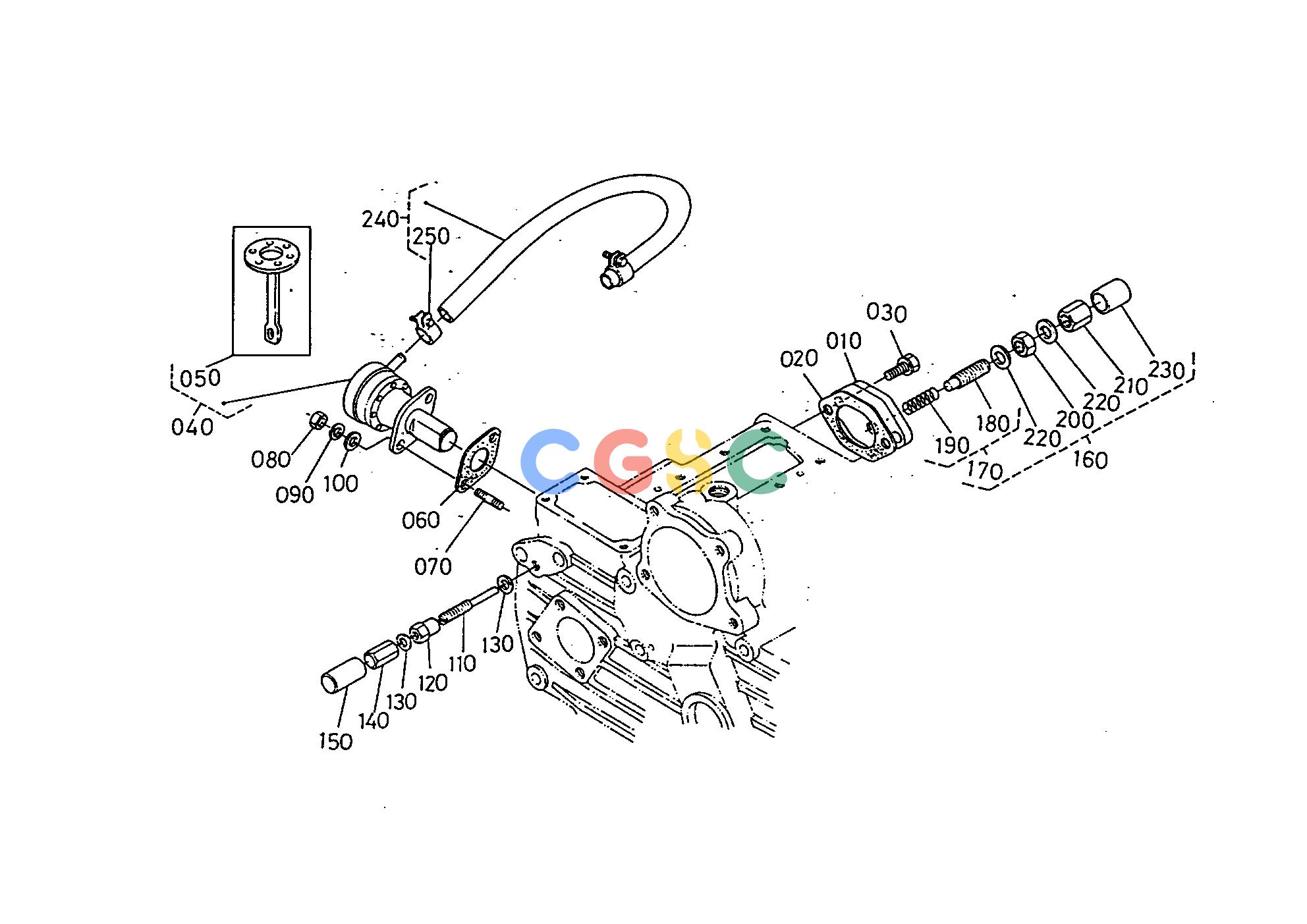

久保田零件查询E01400 FUEL PUMP ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
392 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1540101930
|
[1] |
COVER
|
0.1980(lbs); 0.090
|
| 020. |
1522105430
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 030. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 040. |
1538152030
|
[1] |
ASSY PUMP FUEL
|
0.0000(lbs); 0.000
|
| 050. |
1538152040
|
[1] |
COMP.DIAPHRAGM
|
0.0000(lbs); 0.000
|
| 060. |
1524152140
|
[1] |
GASKET FUEL PUMP
|
0.0000(lbs); 0.000
|
| 070. |
0151350616
|
[2] |
STUD
|
0.0088(lbs); 0.004
|
| 080. |
0205650060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 090. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 100. |
0401250060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 110. |
1560154120
|
[1] |
BOLT ADJUSTING
|
0.0242(lbs); 0.011
|
| 120. |
1560192010
|
[1] |
NUT
|
0.0000(lbs); 0.000
|
| 130. |
1560196650
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 140. |
1560154220
|
[1] |
NUT CAP
|
0.0000(lbs); 0.000
|
| 150. |
1560154420
|
[1] |
CAP
|
0.0000(lbs); 0.000
|
| 160. |
1560154090
|
[1] |
APPARATUS IDLING
|
0.0880(lbs); 0.040
|
| 170. |
1560154100
|
[1] |
ASSY BOLT ADJUSTING
|
0.0220(lbs); 0.010
|
| 180. |
1540154250
|
[1] |
BOLT ADJUSTING
|
0.0220(lbs); 0.010
|
| 190. |
1560154260
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 200. |
1540192010
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 210. |
1540192330
|
[1] |
NUT CAP
|
0.0220(lbs); 0.010
|
| 220. |
1502133660
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 230. |
1540154270
|
[1] |
CAP
|
0.0088(lbs); 0.004
|
| 240. |
1540142010
|
[1] |
ASSY PIPE FUEL
|
0.0880(lbs); 0.040
|
| 250. |
1430142750
|
[2] |
CLIP PIPE
|
0.0110(lbs); 0.005
|
