久保田零件查询T14600 LABEL 2 LABELSEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
687 次

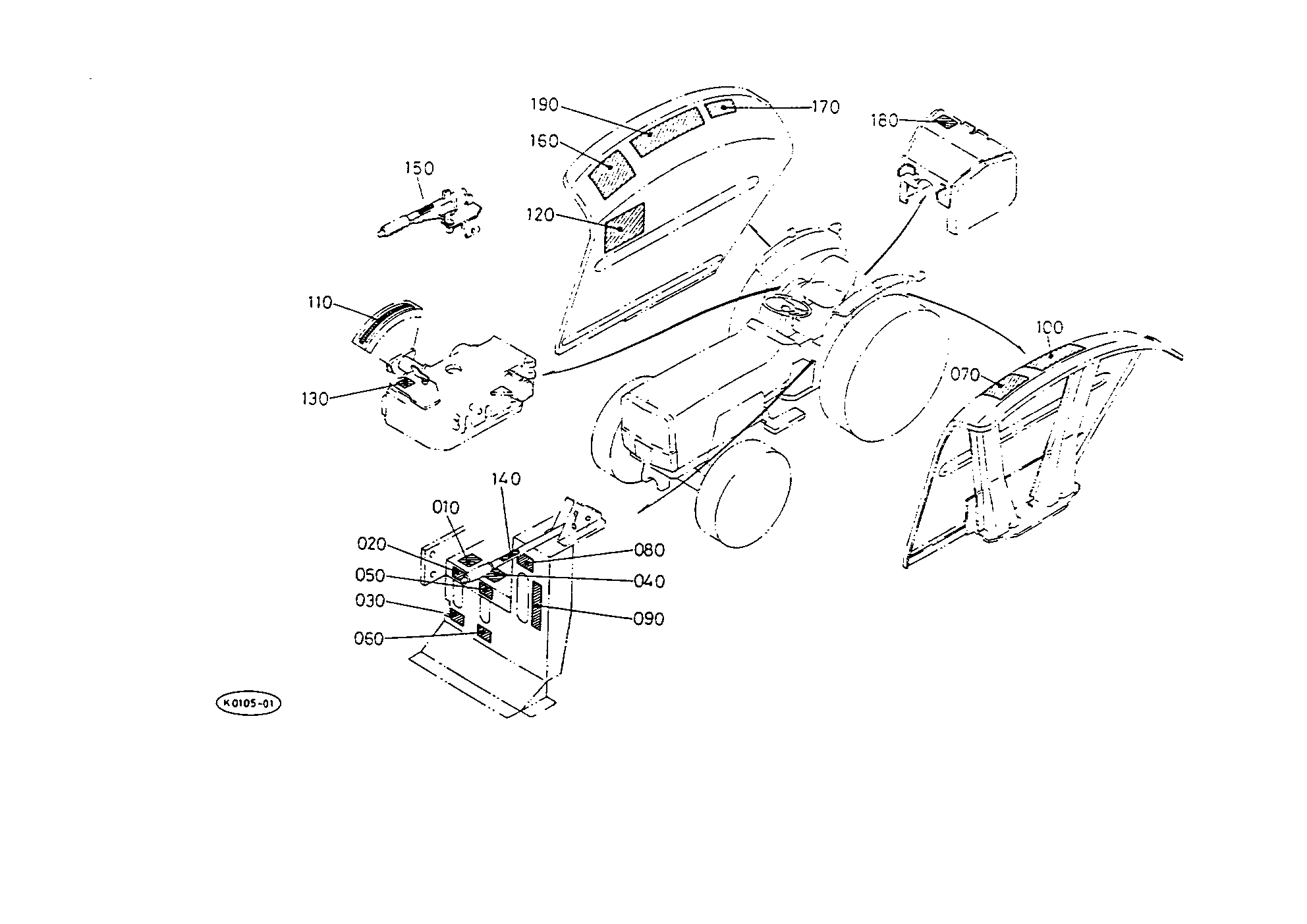

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3553398310
|
[1] |
LABEL CREEP
|
0.0022(lbs); 0.001
|
| 020. |
3553398450
|
[1] |
LABEL CREEP
|
0.0022(lbs); 0.001
|
| 030. |
3553398460
|
[1] |
LABEL CREEP
|
0.0022(lbs); 0.001
|
| 040. |
3553398650
|
[1] |
LABEL DT
|
0.0022(lbs); 0.001
|
| 050. |
3553398660
|
[1] |
LABEL DT
|
0.0000(lbs); 0.000
|
| 060. |
3553398700
|
[1] |
LABEL DT
|
0.0000(lbs); 0.000
|
| 070. |
3582298240
|
[1] |
LABEL PTO SHIFT LVR.
|
0.0022(lbs); 0.001
|
| 080. |
3553398330
|
[1] |
LABEL PTO
|
0.0022(lbs); 0.001
|
| 090. |
3553398400
|
[1] |
LABEL PTO
|
0.0000(lbs); 0.000
|
| 100. |
3555398340
|
[1] |
LABEL SPEED
|
0.0110(lbs); 0.005
|
| 110. |
3553398370
|
[1] |
LABEL HYD.CONTROL
|
0.0066(lbs); 0.003
|
| 120. |
3553398560
|
[1] |
LABEL AUX.CON.VALVE
|
0.0000(lbs); 0.000
|
| 120. |
3553398562
|
[1] |
LABEL AUX.CON.VALVE
|
0.0132(lbs); 0.006
|
| 130. |
3553398380
|
[1] |
LABEL DOWN SPEED
|
0.0022(lbs); 0.001
|
| 140. |
3580198810
|
[1] |
LABEL CLUTCH LEVER
|
0.0022(lbs); 0.001
|
| 150. |
3580198820
|
[1] |
LABEL HAND BRAKE
|
0.0022(lbs); 0.001
|
| 160. |
3526034910
|
[1] |
LABEL SAFETY
|
0.0000(lbs); 0.000
|
| 160. |
3526034912
|
[1] |
LABEL SAFETY
|
0.0000(lbs); 0.000
|
| 160. |
3526034913
|
[1] |
LABEL SAFETY
|
0.0110(lbs); 0.005
|
| 170. |
3526029790
|
[1] |
LABEL DRAWBAR
|
0.0044(lbs); 0.002
|
| 180. |
3526025340
|
[1] |
LABEL PTO WARNING
|
0.0110(lbs); 0.005
|
| 190. |
3526029780
|
[1] |
LABEL ROPS WARNING
|
0.0000(lbs); 0.000
|
| 190. |
3526029782
|
[1] |
LABEL ROPS WARNING
|
0.0022(lbs); 0.001
|
