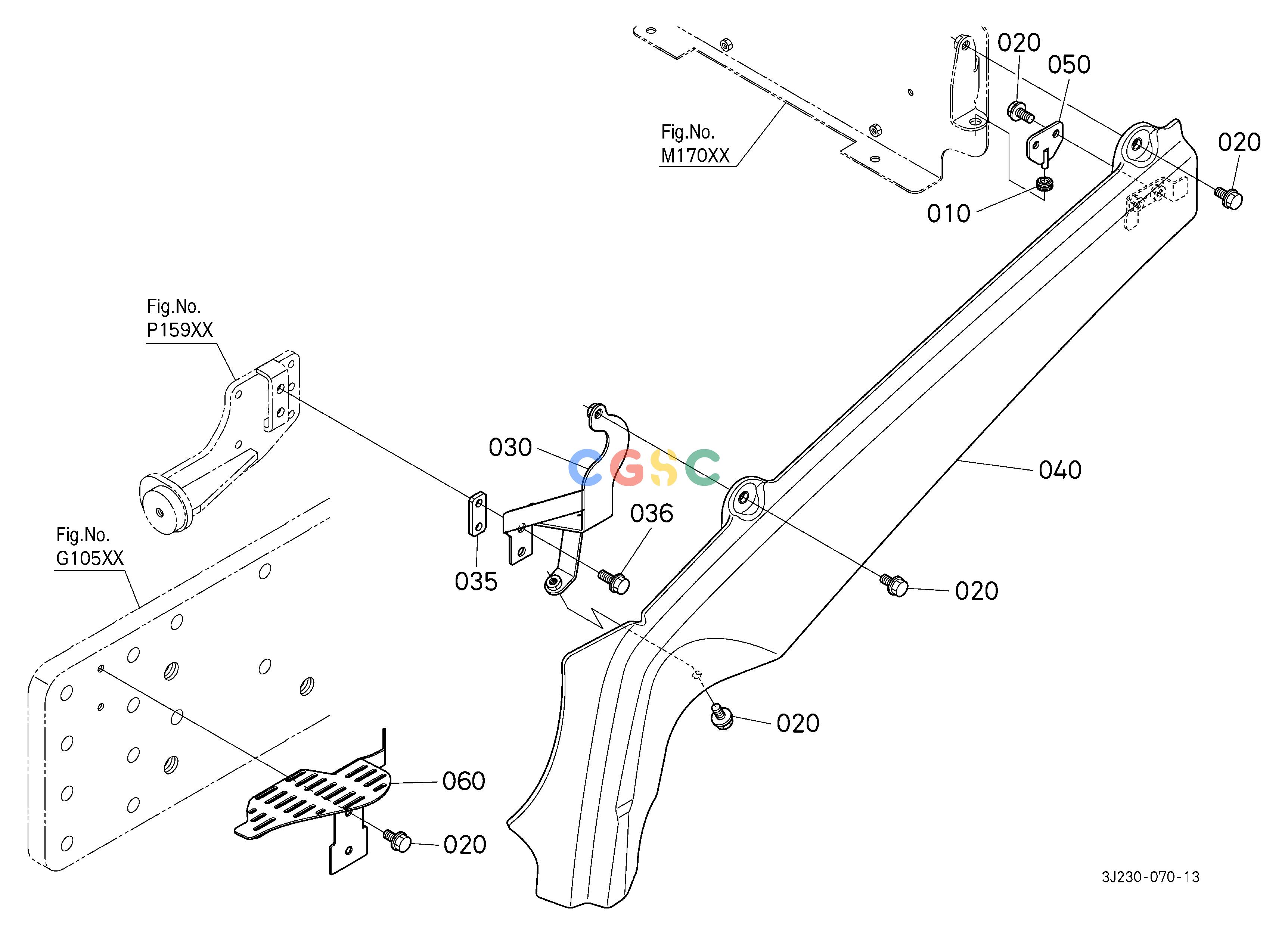

久保田零件查询M15202 HOOD (BONNET) SIDE LOWER LH [W/O AIR COMPRESSOR] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
302 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6659154580
|
[1] |
ROD,RELEASE
|
0.0044(lbs); 0.002
|
| 020. |
0175450816
|
[7] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 030. |
3J03135253
|
[1] |
BRACKET(COVER,1,LH)
|
0.8690(lbs); 0.395
|
| 035. |
3J07013170
|
[1] |
SPACER(SIDE COVER)
|
0.0704(lbs); 0.032
|
| 036. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 036. |
0175450820
|
[2] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
| 040. |
3J03140165
|
[1] |
COVER(SIDE,LH)
|
0.0000(lbs); 0.000
|
| 040. |
3J03140166
|
[1] |
COVER(SIDE,LH)
|
2.5080(lbs); 1.140
|
| 050. |
3J03135310
|
[1] |
PIN(SIDE,COVER)
|
0.0946(lbs); 0.043
|
| 060. |
3J03285250
|
[1] |
BRACKET
|
0.7194(lbs); 0.327
|
