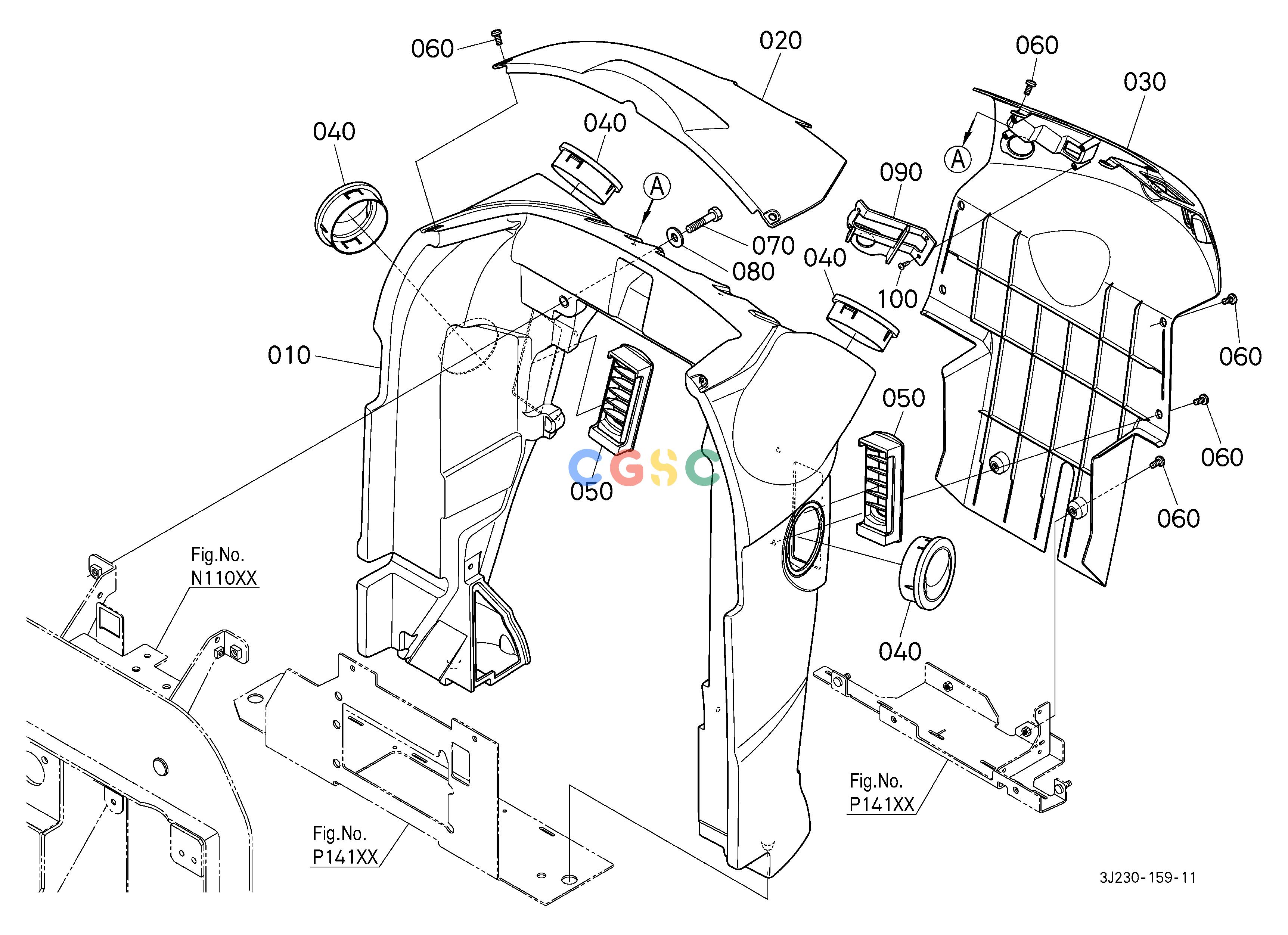

久保田零件查询N11800 FRONT COVER CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
720 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J03025652
|
[1] |
DUCT(AIR)
|
7.7880(lbs); 3.540
|
| 020. |
3J03025660
|
[1] |
COVER(TOP)
|
0.4840(lbs); 0.220
|
| 030. |
3J03067283
|
[1] |
COVER(FRONT)
|
1.1660(lbs); 0.530
|
| 040. |
3J03025680
|
[4] |
GRILLE(AIR,D87)
|
0.1232(lbs); 0.056
|
| 050. |
3J03025690
|
[2] |
GRILLE(AIR,130X52)
|
0.1210(lbs); 0.055
|
| 060. |
0301450612
|
[10] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0066(lbs); 0.003
|
| 070. |
0105350840
|
[2] |
HEX.BOLT
|
0.0396(lbs); 0.018
|
| 080. |
0401350080
|
[2] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 090. |
3J03065950
|
[1] |
PLATE
|
0.2860(lbs); 0.130
|
| 100. |
3J02924910
|
[4] |
SCREW,BDG HD(M4-12)
|
0.0022(lbs); 0.001
|
