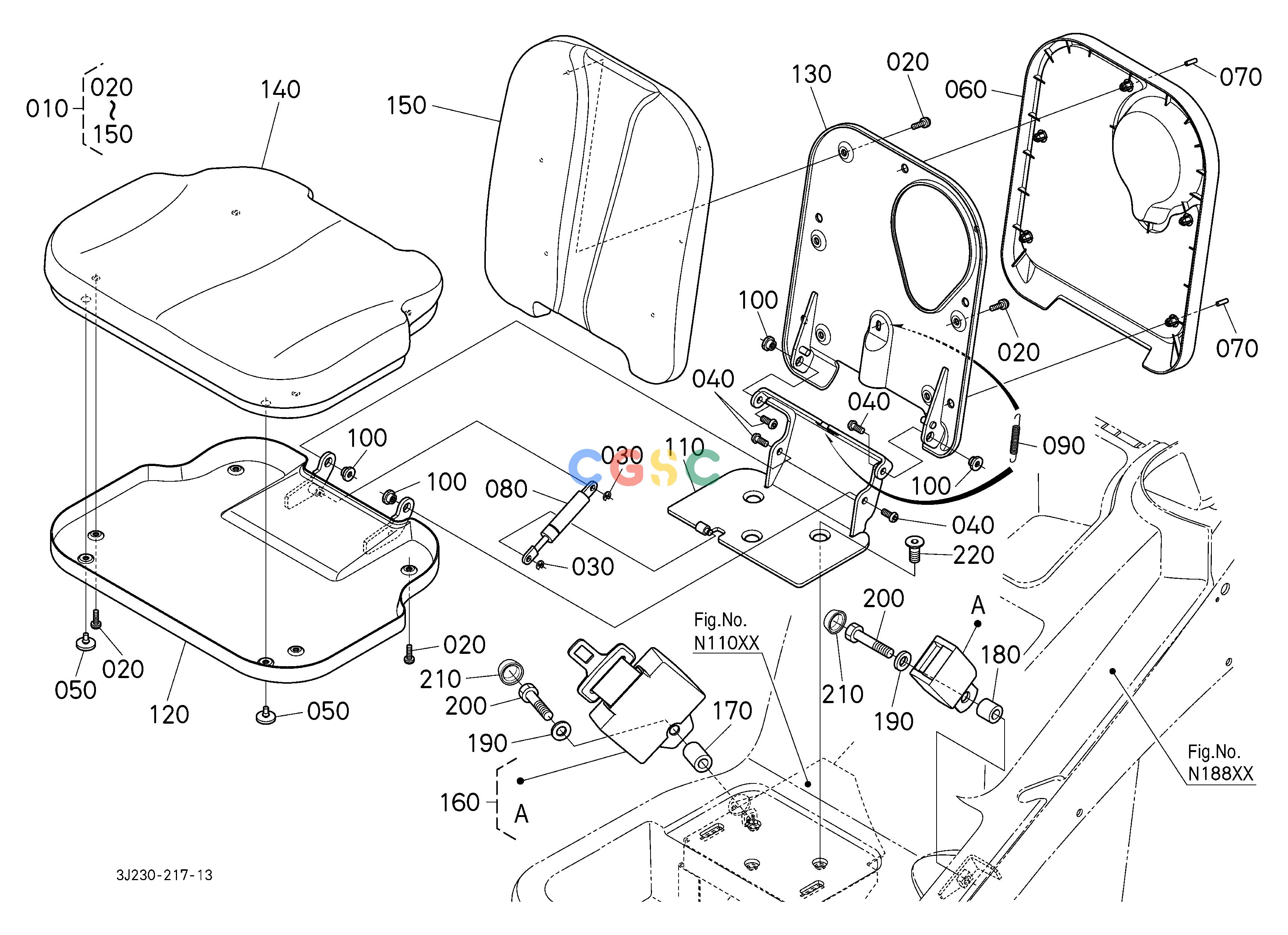

久保田零件查询N17400 PASSENGER SEAT CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
221 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J03116240
|
[1] |
SEAT(PASSENGER)
|
13.5080(lbs); 6.140
|
| 020. |
3J08012630
|
[10] |
SCREW
|
0.0022(lbs); 0.001
|
| 030. |
3J08012640
|
[2] |
WASHER
|
0.0022(lbs); 0.001
|
| 040. |
3J08012650
|
[4] |
SCREW
|
0.0066(lbs); 0.003
|
| 050. |
3J08012660
|
[2] |
BUMPER(SEAT)
|
0.0022(lbs); 0.001
|
| 060. |
3J08012670
|
[1] |
COVER(BACK RECLINING)
|
0.6600(lbs); 0.300
|
| 070. |
3J08012680
|
[5] |
STUD
|
0.0022(lbs); 0.001
|
| 080. |
3J08012760
|
[1] |
SPRING(BACKREST)
|
0.1122(lbs); 0.051
|
| 090. |
3J08012690
|
[1] |
SPRING(BACKREST)
|
0.0176(lbs); 0.008
|
| 100. |
3J08012700
|
[4] |
BUSHING(ROTATION)
|
0.0022(lbs); 0.001
|
| 110. |
3J08012710
|
[1] |
BRACKET,ASSY
|
2.7940(lbs); 1.270
|
| 120. |
3J08012720
|
[1] |
SEAT(AUXILIARY,BOTTOM)
|
4.5540(lbs); 2.070
|
| 130. |
3J08012730
|
[1] |
SEAT(AUXILIARY,BACKREST)
|
2.4860(lbs); 1.130
|
| 140. |
3J08012740
|
[1] |
SEAT(BOTTOM)
|
1.4520(lbs); 0.660
|
| 150. |
3J08012750
|
[1] |
SEAT(BACKREST)
|
1.2540(lbs); 0.570
|
| 160. |
3J02798850
|
[1] |
BELT(SEAT,SUB)
|
2.2000(lbs); 1.000
|
| 170. |
3J02798860
|
[1] |
COLLAR
|
0.1100(lbs); 0.050
|
| 180. |
3J02798870
|
[1] |
COLLAR
|
0.0682(lbs); 0.031
|
| 190. |
0401550100
|
[2] |
WASHER,PLAIN
|
0.0352(lbs); 0.016
|
| 200. |
3J09935029
|
[2] |
BOLT(I8676,M10X1.25-50,C8.8)
|
0.2596(lbs); 0.118
|
| 210. |
3J08020490
|
[2] |
CAP(BOLT)
|
0.0022(lbs); 0.001
|
| 220. |
3J03397040
|
[3] |
SCREW,CSK HD(M10X1.25-25)
|
0.0220(lbs); 0.010
|
