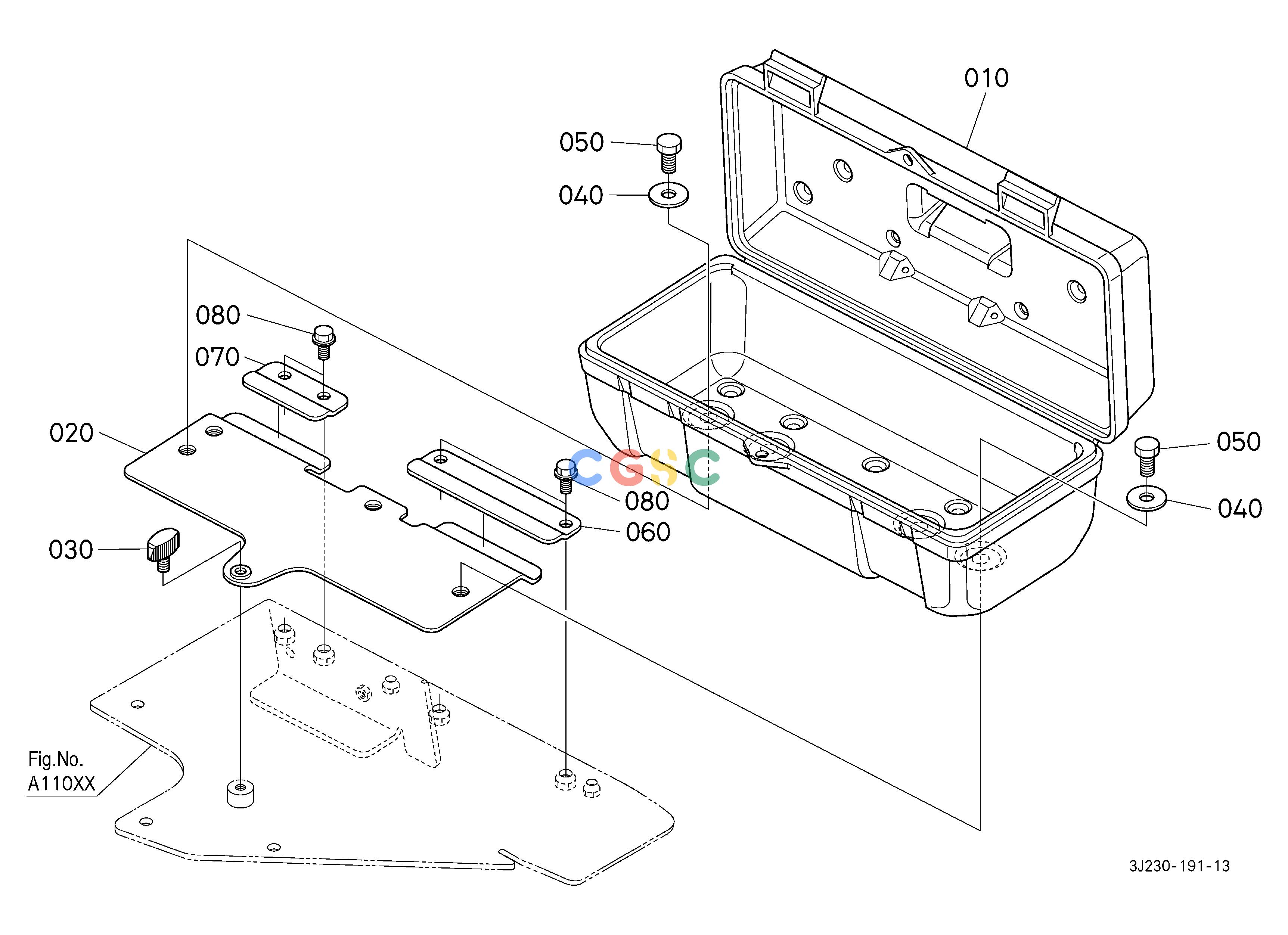

久保田零件查询N25002 TOOL BOX [W/O LOADER EQUIPMENT] CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
1033 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3N60090202
|
[1] |
BOX,TOOL
|
2.4640(lbs); 1.120
|
| 020. |
3J03013312
|
[1] |
BRACKET(TOOL BOX)
|
0.0000(lbs); 0.000
|
| 020. |
3J07013210
|
[1] |
BRACKET(TOOL BOX)
|
2.1296(lbs); 0.968
|
| 030. |
3J03013320
|
[1] |
KNOB(TOOL BOX,STAY)
|
0.0330(lbs); 0.015
|
| 040. |
3J09934593
|
[2] |
WASHER,PLAIN(I7093,M10,HV200)
|
0.0264(lbs); 0.012
|
| 050. |
0105351020
|
[2] |
HEX.BOLT
|
0.0440(lbs); 0.020
|
| 060. |
3J03274300
|
[1] |
PLATE
|
0.3146(lbs); 0.143
|
| 070. |
3J03013360
|
[1] |
PLATE(TOOL BOX)
|
0.1760(lbs); 0.080
|
| 080. |
0175450816
|
[4] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
