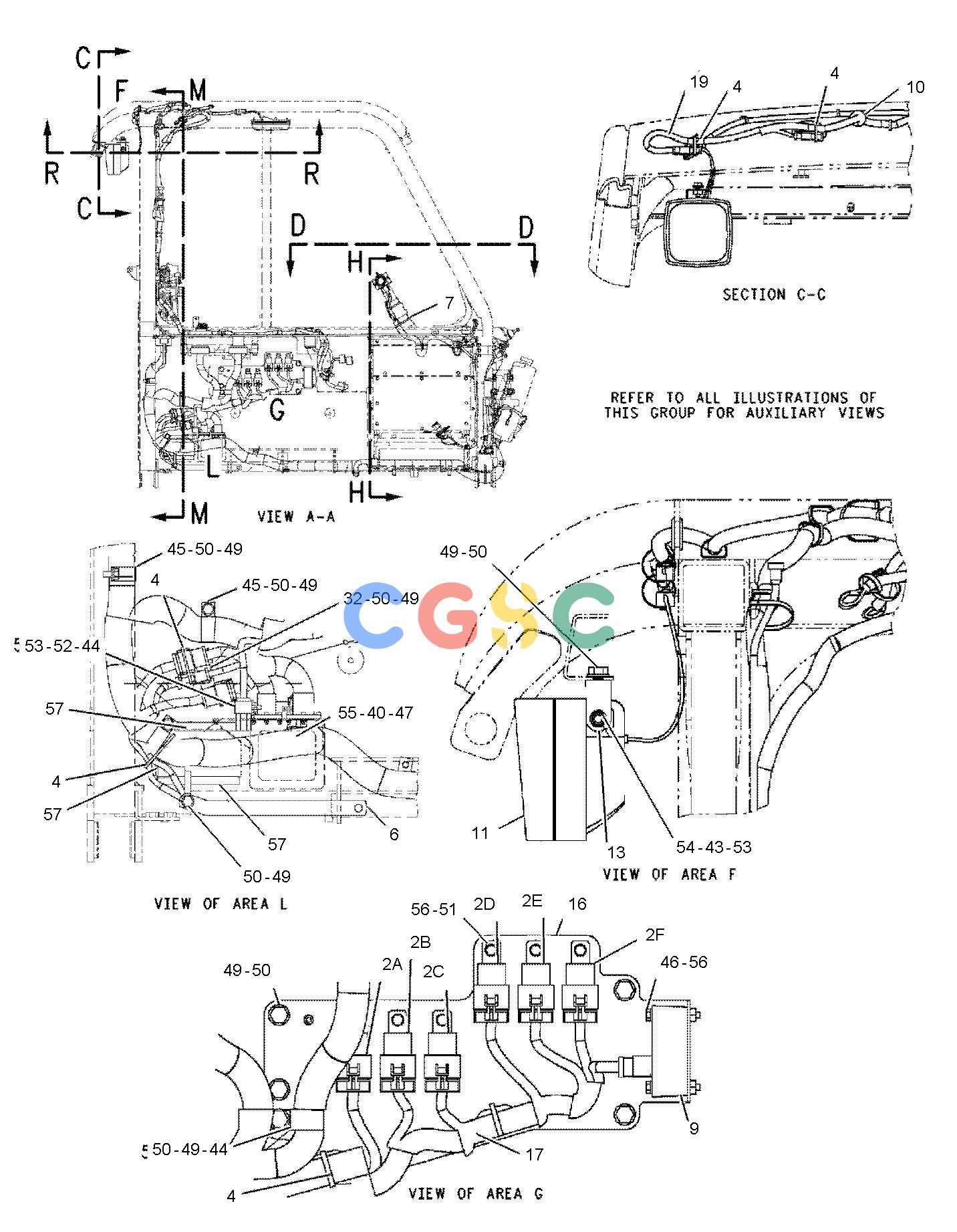

| 1. | 1S-9593 | [1] | STRAP-CABLE | |
| 2A. | 3E-5239 | [1] | RELAY AS(24-VOLT)(INTERMITTENT WIPER) | |
| 2B. | 3E-5239 | [1] | RELAY AS(24-VOLT)(SECONDARY STEERING) | |
| 2C. | 3E-5239 | [1] | RELAY AS(24-VOLT)(BACKUP ALARM) | |
| 2D. | 3E-5239 | [1] | RELAY AS(24-VOLT)(START AID) | |
| 2E. | 3E-5239 | [1] | RELAY AS(24-VOLT)(HORN) | |
| 2F. | 3E-5239 | [1] | RELAY AS(24-VOLT)(HEADLAMP) | |
| 3. | 3E-6389Y | [1] | LAMP GP-DOME(24-VOLT) | |
| 4. | 6L-7008B | [51] | STRAP-CABLE | |
| 5. | 6T-3631 | [1] | NUT-HEX(15/32-32-THD) | |
| 6. | 7G-1060 | [1] | STRAP AS-GROUND | |
| 7. | 7K-1181 | [4] | STRAP-CABLE | |
| 8. | 9D-4068 | [1] | SWITCH AS-PUSH BUTTON(DOOR DOME LAMP) | |
| 9. | 103-5526Y | [1] | CONTROL GP-MONITOR(BACKLIGHT DIMMER) | |
| 10. | 116-5710 | [1] | GROMMET | |
| 11. | 133-6335Y | [1] | LAMP GP-FLOOD(24-VOLT, 65-WATT) | |
| 12. | 134-1346 | [1] | CONVERTER GP-ELECTRICAL(24-VOLT TO 12-VOLT) | |
| 13. | 140-1088 | [1] | BRACKET AS | |
| | 115-0617 | [1] | BRACKET | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 14. | 141-0275 | [1] | LEVER GP-STEERING COLUMN(RETARDER) | |
| 15. | 147-1380 | [1] | SWITCH AS-FOOT(DIFFERENTIAL LOCK) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 16. | 162-0104 | [1] | PLATE AS | |
| | 6V-9632M | [9] | NUT-WELD(M6X1-THD) | |
| | 7X-0752M | [1] | BOSS-WELD(M10X1.5X65-MM) | |
| | 7T-1099 | [2] | LINK | |
| 17. | 162-0106 | [1] | HARNESS AS-FRONT CHASSIS | |
| | 8T-8729 | [15] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [1] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 3E-5519 | [1] | PLUG AS-CONNECTOR(5-PIN) | |
| | 9X-1054 | [5] | PLUG AS-CONNECTOR(4-PIN) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [17] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [1] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-1056 | [25] | TERMINAL-RECEPTACLE(14-GA TO 16-GA) | |
| | 3S-2093 | [14] | STRAP-CABLE | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 18. | 162-7264 | [1] | CABLE AS | |
| 19. | 162-9347 | [1] | HARNESS AS-CAB | |
| | 8T-8729 | [20] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9G-3695 | [11] | PLUG-SEAL | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8805 | [2] | KIT-RECEPTACLE(6-PIN) | |
| | 102-8806 | [2] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [9] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(7-CM) | |
| 20. | 162-9348 | [1] | HARNESS AS-CONSOLE(SENSOR-SHIFTER, HOIST) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | 180-0050 | [2] | KIT-CONNECTING PLUG(4-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9G-3695 | [4] | PLUG-SEAL | |
| | 8T-8730 | [26] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 5P-2321 | [5] | TERMINAL-FORK(14-GA TO 16-GA, NO. 6 SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(7-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(10-CM) | |
| 21. | 162-9349 | [1] | HARNESS AS-LIGHTING | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9G-3695 | [1] | PLUG-SEAL | |
| | 8T-8730 | [10] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 124-8616 | [2] | TERMINAL-RECEPTACLE(18-GA TO 22-GA) | |
| | 124-8617 | [2] | TERMINAL-RECEPTACLE(18-GA TO 22-GA) | |
| 22. | 162-9350 | [1] | HARNESS AS-PANEL(INSTRUMENT) | |
| | 6T-6505 | [4] | HOUSING-RECEPTACLE(BLADE, POSITIVE LOCK) | |
| | 8T-8729 | [7] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 7X-6222 | [1] | PLUG AS-CONNECTOR(24-PIN) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-3265 | [2] | SEAL-CONNECTOR(24-PIN) | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | 155-2255 | [11] | KIT-CONNECTING PLUG(12-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9G-3695 | [15] | PLUG-SEAL | |
| | 102-8806 | [2] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [51] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 3S-2093 | [6] | STRAP-CABLE | |
| | 6T-6506 | [4] | TERMINAL-BLADE(14-GA TO 18-GA) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(5-CM) | |
| 23. | 227-9703 | [1] | HARNESS AS-CAB | |
| | 8N-1535 | [1] | BELL AS-END | |
| | 8N-1537 | [1] | LOCKWASHER | |
| | 8N-1548 | [2] | PIN-CONNECTOR(4-GA) | |
| | 8T-8729 | [221] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0852 | [17] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 147-1446 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 155-2255 | [2] | KIT-CONNECTING PLUG(12-PIN) | |
| | 155-2270 | [4] | KIT-CONNECTING PLUG(2-PIN) | |
| | 155-2271 | [1] | KIT-CONNECTING PLUG(4-PIN) | |
| | 155-2274 | [1] | KIT-CONNECTING PLUG(6-PIN) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 160-7690 | [1] | PLUG AS-CONNECTOR(70-PIN) | |
| | 159-9322 | [1] | SEAL-O-RING | |
| | 8T-8737 | [114] | PLUG-SEAL | |
| | 7G-7917 | [11] | PLUG-SEAL | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 8N-1530 | [1] | RECEPTACLE AS(12-PIN) | |
| | 8N-1536 | [1] | NUT(1-5/8-18-THD) | |
| | 9X-0145 | [2] | RECEPTACLE AS-CONNECTOR(24-PIN) | |
| | 9X-1343 | [2] | RECEPTACLE AS-CONNECTOR(40-PIN) | |
| | 103-0213 | [2] | RECEPTACLE AS-CONNECTOR(70-PIN) | |
| | 127-5484 | [1] | RECEPTACLE AS-CONNECTOR(1-PIN) | |
| | 8T-8730 | [31] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9W-0844 | [11] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 9X-3402 | [72] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 126-1768 | [1] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 3S-2093 | [7] | STRAP-CABLE | |
| | 7T-5957 | [2] | TERMINAL AS | |
| | 131-1490 | [3] | TERMINAL AS(6-GA TO 8-GA) | |
| | 6H-3587 | [1] | TERMINAL-RING(6-GA TO 8-GA, 3/8-IN SCREW) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(4-CM) | |
| 24. | 163-6088 | [1] | MODULE AS(INTERMITTENT WIPER) | |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 25. | 213-8477 | [1] | SWITCH GP-MULTIFUNCTION | |
| 26A. | 172-7071 | [1] | SWITCH GP-PRESSURE(SERVICE BRAKE) | |
| 26B. | 172-7071 | [1] | SWITCH GP-PRESSURE(STOP LAMP) | |
| | | | (EACH SWITCH GP-PRESSURE INCLUDES) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 27. | 218-3262 | [1] | SWITCH GP-PARKING BRAKE | |
| | 203-7154 | [1] | SWITCH AS(PARKING BRAKE) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9G-3695 | [2] | PLUG-SEAL | |
| | 102-8804 | [1] | KIT-RECEPTACLE(4-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 188-3369 | [1] | KIT-KNOB | |
| | | | (INCLUDES KNOB, SCREW & SETSCREW) |
| 28. | 033-8248 | [1] | CLIP(LOOP) | |
| 29. | 095-0642M | [2] | BOLT-SOCKET HEAD(M5X0.8X50-MM) | |
| 30. | 096-4833M | [3] | BOLT-SOCKET HEAD(M5X0.8X20-MM) | |
| 31. | 120-9027M | [16] | SCREW-PAN HEAD(M3X0.5X16-MM) | |
| 32. | 130-5300 | [2] | CLIP | |
| 33. | 150-4086M | [4] | SCREW(M4X0.7X16-MM) | |
| 34. | 1S-0994 | [1] | CLIP(LOOP) | |
| 35. | 3J-1907 | [2] | SEAL-O-RING | |
| 36. | 3S-8664 | [2] | CLIP(LOOP) | |
| 37. | 4B-4274 | [4] | WASHER(5.5X13X1.2-MM THK) | |
| 38. | 4D-7794 | [2] | CLIP | |
| 39. | 4V-6981 | [2] | SCREW-BUTTON HEAD(1/4-20X0.75-IN) | |
| 40. | 5C-8312M | [8] | NUT(M4X0.7-THD) | |
| 41. | 5P-6419 | [1] | GROMMET | |
| 42. | 5P-7854 | [1] | CLIP(LOOP) | |
| 43. | 6V-9189M | [1] | LOCKNUT(M8X1.25-THD) | |
| 44. | 7C-4354 | [3] | CLIP | |
| 45. | 7D-7233 | [10] | CLIP(LOOP) | |
| 46. | 7X-2534M | [2] | BOLT(M6X1X50-MM) | |
| 47. | 8C-9660 | [24] | WASHER(4.6X7.9X0.8-MM THK) | |
| 48. | 8D-6946 | [1] | FLASHER AS(24-VOLT) | |
| 49. | 8T-4121 | [20] | WASHER-HARD(11X21X2.5-MM THK) | |
| 50. | 8T-4137M | [20] | BOLT(M10X1.5X20-MM) | |
| 51. | 8T-4171M | [8] | BOLT(M6X1X12-MM) | |
| 52. | 8T-4189M | [1] | BOLT(M8X1.25X20-MM) | |
| 53. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 54. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 55. | 8T-9405M | [8] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| 56. | 9X-8256 | [10] | WASHER(6.6X12X2-MM THK) | |
| 57. | 3U-4762D | | TRIM-DASH(0.4-M) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
