格莳国际Growshine：住友 HA60C-5 履带式摊铺机参数配置

广数供应链运营团队, 25 01月, 2025，浏览： 936 次

格莳国际 工程机械 重卡 农机 汽配
主要规格本表的单位采用国际单位的SI单位表示
规格单位HA60C
宽度标准（伸缩宽度）m2.3~6.0m无级伸缩
摊铺能力

摊铺厚度

mm10~300
摊铺速度m/min1.0~12
料斗容量ton11
拱顶比例量%-1~3（斜面比0~3）
整机质量（重量）kg13520(TV)~13360(V)
全长mm6385
全宽mm2490
全高mm2540(带遮阳篷3510)
履带mm2615
284
m1948
传送带驱动形式液压（螺旋叶片另外驱动）
宽×列mm482×2
速度m/min0~14.5
螺旋叶片尺寸mm直径330 螺距300
回转数min-10～68
熨平板熨平板底板宽度mm主部280 伸缩部280
熨平板可变角度板mm主部81 伸缩部81
加热装置自动着火式鼓风燃烧器（4个）
摊铺厚度调整形式遥控式．手动式
伸缩机构形式4根导管×2
夯实机构形式液压夯锤振动器/液压振动器
振动器振动数Hz0～50
夯锤回转数Hz0～20
夯锤夯距mm3
落差调节机构液压驱动
行走装置形式履带式
行走驱动方式HST
刹车形式自动刹车
移动速度 前 / 后km/h0～3.6 /0 ～3.6
发动机生产厂家 形式三菱S6S-E4DT
总排气量cc4996
额定输出kW/min-181/2000
最大扭矩N-m/min-1400 / 1500

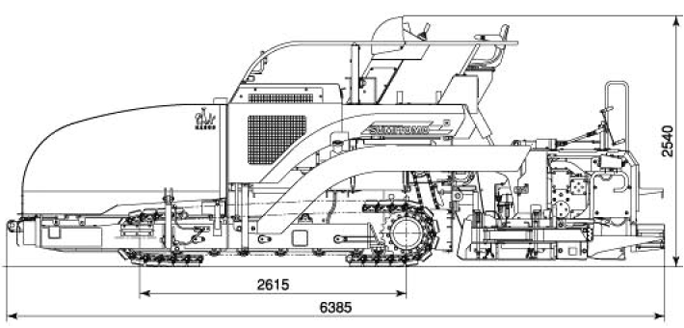

屏保外形尺寸图　　　(单位：mm)
