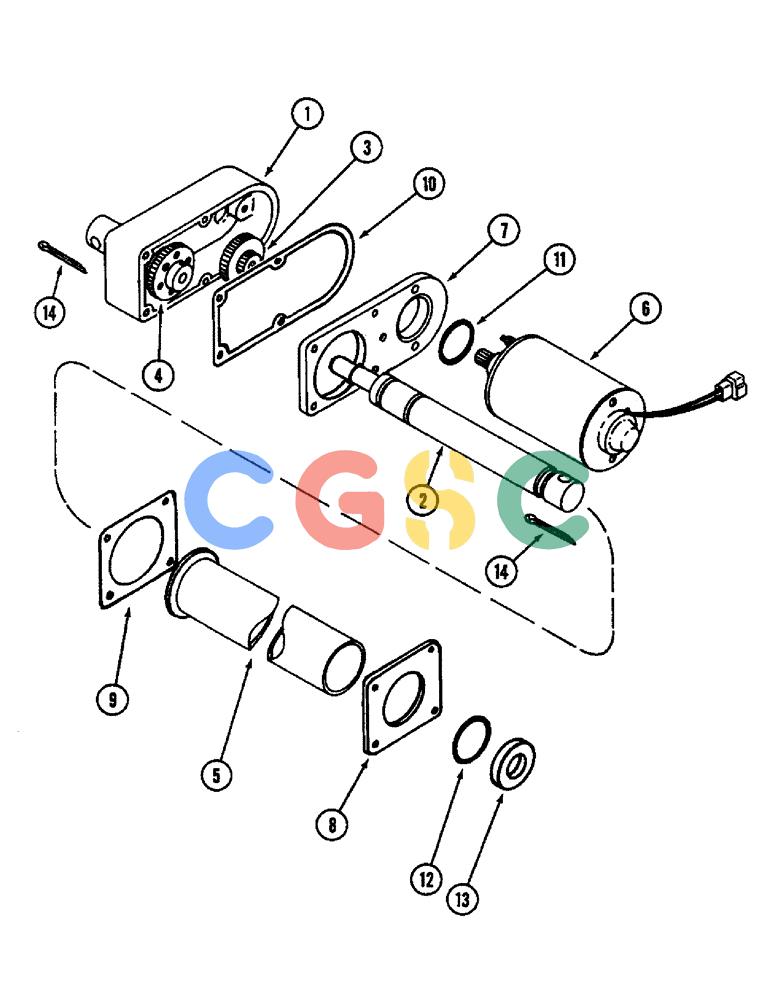

凯斯零件查询(3440) - CASE IH ROUND BALER (1/87-12/87) (04) - TWINE TUBE ACTUATOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
280 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
ZA105658
|
[1] |
ACTUATOR
|
IH
- twine tube Superseded by part number: 700709661
|
| 1. |
1281482C1
|
[1] |
HOUSING
|
IH
- gear Superseded by part number: 700704854
|
| 2. |
1281483C1
|
[5] |
ADJUSTMENT SCREW
|
IH
- actuator
|
| 3. |
1281484C1
|
[1] |
GEAR
|
IH
- actuator
|
| 4. |
1281485C1
|
[1] |
CLUTCH
|
IH
- actuator
|
| 5. |
1281486C1
|
[1] |
COVER
|
IH
- rod Superseded by part number: 700709904
|
| 6. |
1281487C1
|
[1] |
KIT
|
IH
MOTOR - actuator Superseded by part number: 700704871
|
| 7. |
1281488C1
|
[1] |
HOUSING
|
IH
COVER - housing
|
| 8. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
RETAINER - cover
|
| 14. |
103396
|
[2] |
PIN, SPLIT (COTTER),5/32" x 1"
|
IH
5/32" x 1" Superseded by part number: 120169
|
| . . |
1281489C1
|
[1] |
SEAL KIT
|
CAS
KIT - seal, Includes: Ref. 9, 10, 11,12 and 13
|
