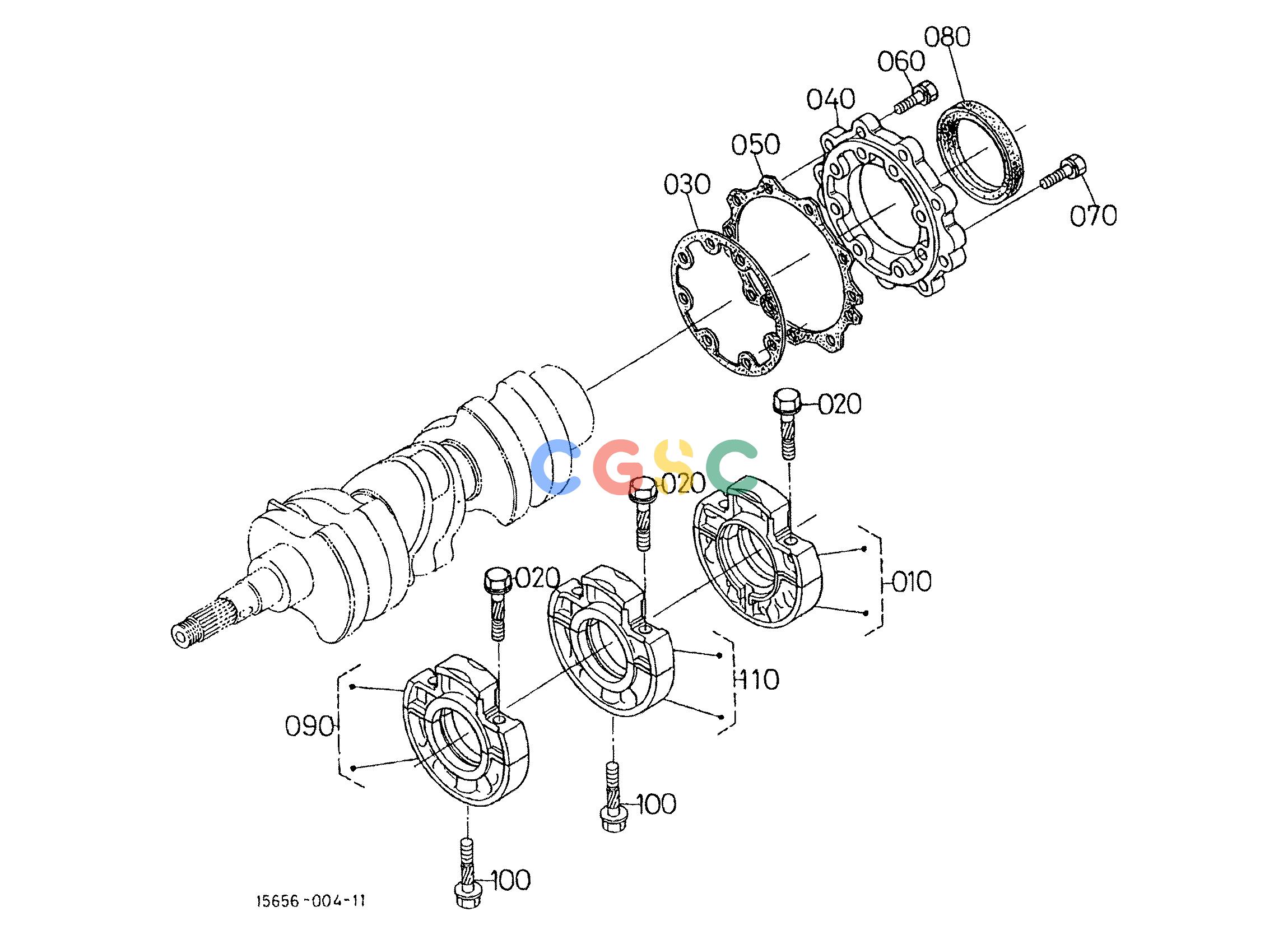

久保田零件查询T00400 MAIN BEARING CASE ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
476 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1526104090
|
[1] |
ASSY CASE MAIN BRG.
|
1.7600(lbs); 0.800
|
| 020. |
1538104540
|
[6] |
BOLT BEARING CASE
|
0.0440(lbs); 0.020
|
| 030. |
1526104360
|
[1] |
GASKET BRG.CASE
|
0.0000(lbs); 0.000
|
| 030. |
1526304360
|
[1] |
GASKET BRG.CASE
|
0.0110(lbs); 0.005
|
| 040. |
1554904810
|
[1] |
COVER BEARING CASE
|
0.4400(lbs); 0.200
|
| 050. |
1526104820
|
[1] |
GASKET BRG.CASE COV.
|
0.0000(lbs); 0.000
|
| 050. |
1526304820
|
[1] |
GASKET BRG.CASE COV.
|
0.0022(lbs); 0.001
|
| 060. |
0102350620
|
[9] |
BOLT
|
0.0132(lbs); 0.006
|
| 070. |
0102350625
|
[8] |
BOLT
|
0.0154(lbs); 0.007
|
| 080. |
1921504460
|
[1] |
SEAL OIL
|
0.0660(lbs); 0.030
|
| 090. |
1526104040
|
[1] |
ASSY CASE MAIN BRG.
|
1.5114(lbs); 0.687
|
| 100. |
1538104560
|
[2] |
BOLT BEARING CASE
|
0.0440(lbs); 0.020
|
| 110. |
1538104050
|
[1] |
ASSY CASE MAIN BRG.
|
1.5136(lbs); 0.688
|
