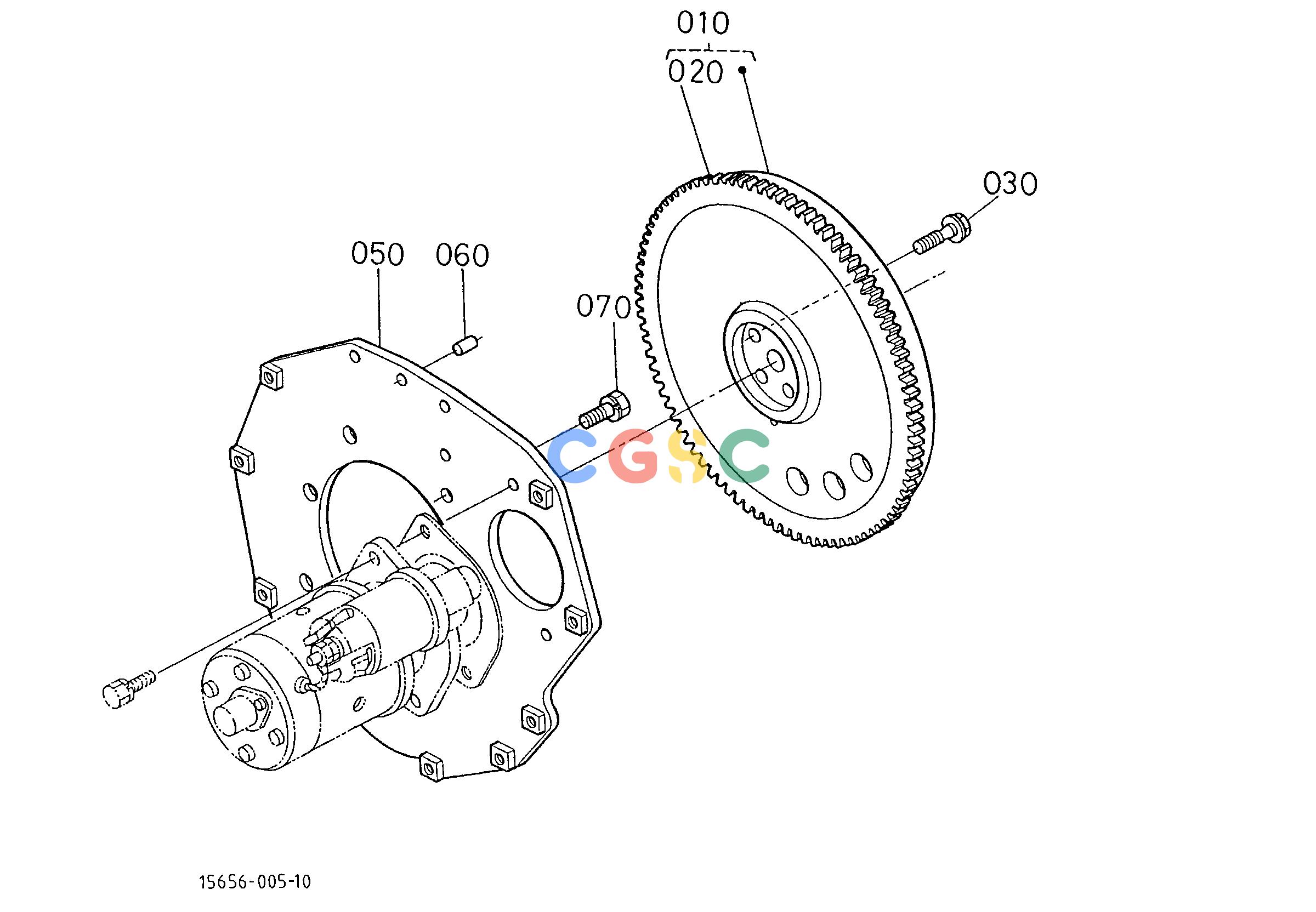

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1554125012
|
[1] |
COMP.FLYWHEEL
|
26.4000(lbs); 12.000
|
| 020. |
1526163820
|
[1] |
GEAR RING
|
0.0000(lbs); 0.000
|
| 020. |
1526263820
|
[1] |
GEAR RING
|
1.4300(lbs); 0.650
|
| 030. |
1553325160
|
[5] |
BOLT FLYWHEEL
|
0.0000(lbs); 0.000
|
| 030. |
1553325162
|
[5] |
BOLT FLYWHEEL
|
0.0660(lbs); 0.030
|
| 050. |
1554104620
|
[1] |
PLATE REAR END
|
5.9400(lbs); 2.700
|
| 060. |
0501200814
|
[1] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 070. |
1526191190
|
[8] |
BOLT
|
0.0660(lbs); 0.030
|
