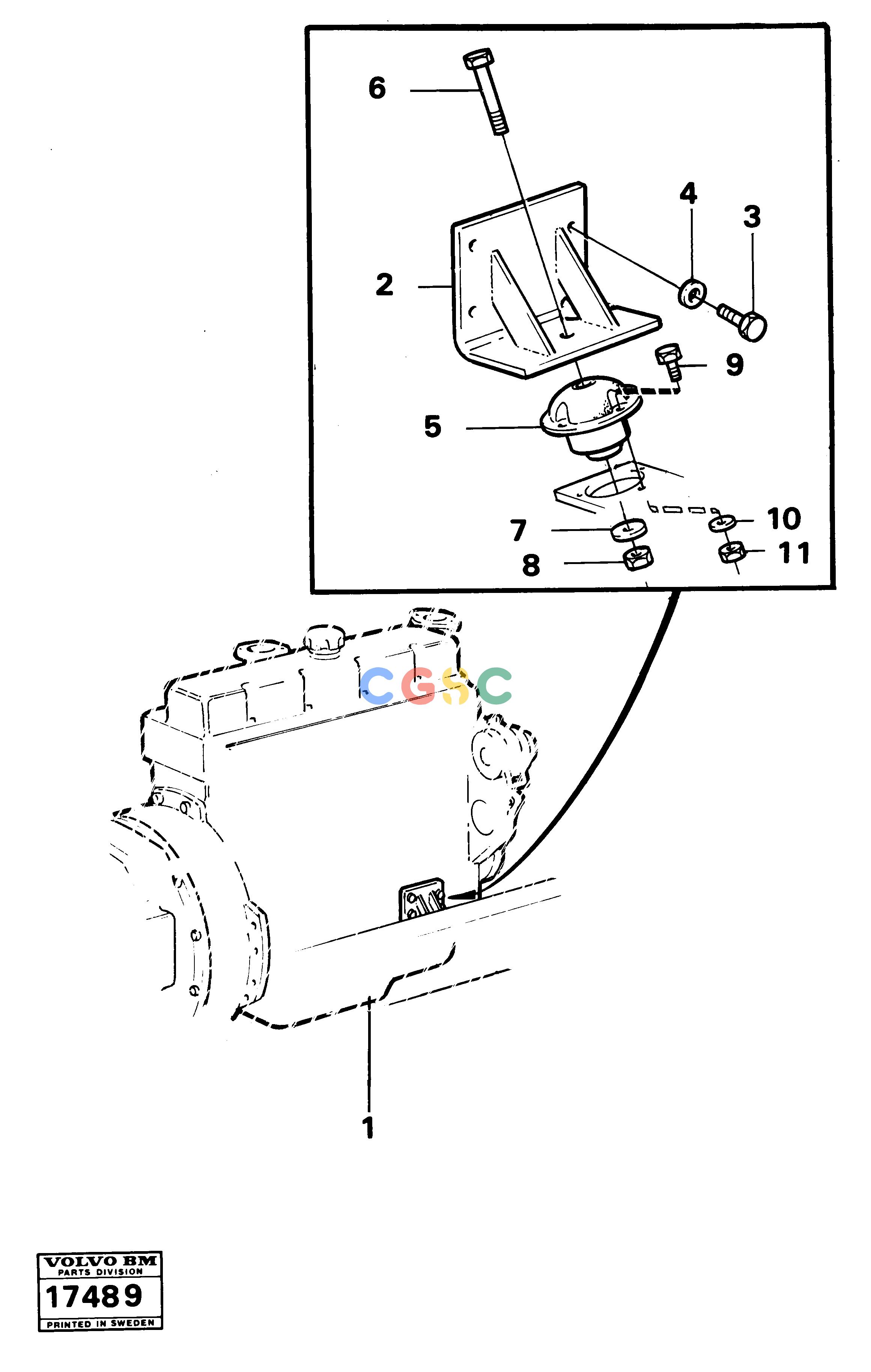

沃尔沃零件查询4200B Engine mounting4200B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
436 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4850822
|
[0008] |
Spacer
|
|
| 5. |
VOE11101991
|
[0002] |
Rubber damper
|
|
| 6. |
VOE955398
|
[0002] |
Hexagon screw
|
|
| 7. |
VOE13949394
|
[0002] |
Washer
|
|
| 8. |
VOE955786
|
[0002] |
Hexagon nut
|
|
| 1. |
|
[0001] |
Engine
|
|
| 9. |
VOE13970972
|
[0006] |
Hexagon screw
|
|
| 10. |
VOE940280
|
[0006] |
Spring washer
|
|
| 11. |
VOE13971072
|
[0006] |
Hexagon nut
|
|
| 2. |
VOE4939323
|
[0001] |
Bracket
|
H
|
| |
VOE4939324
|
[0001] |
Bracket
|
V
|
| 3. |
VOE955563
|
[0008] |
Hexagon screw
|
|
