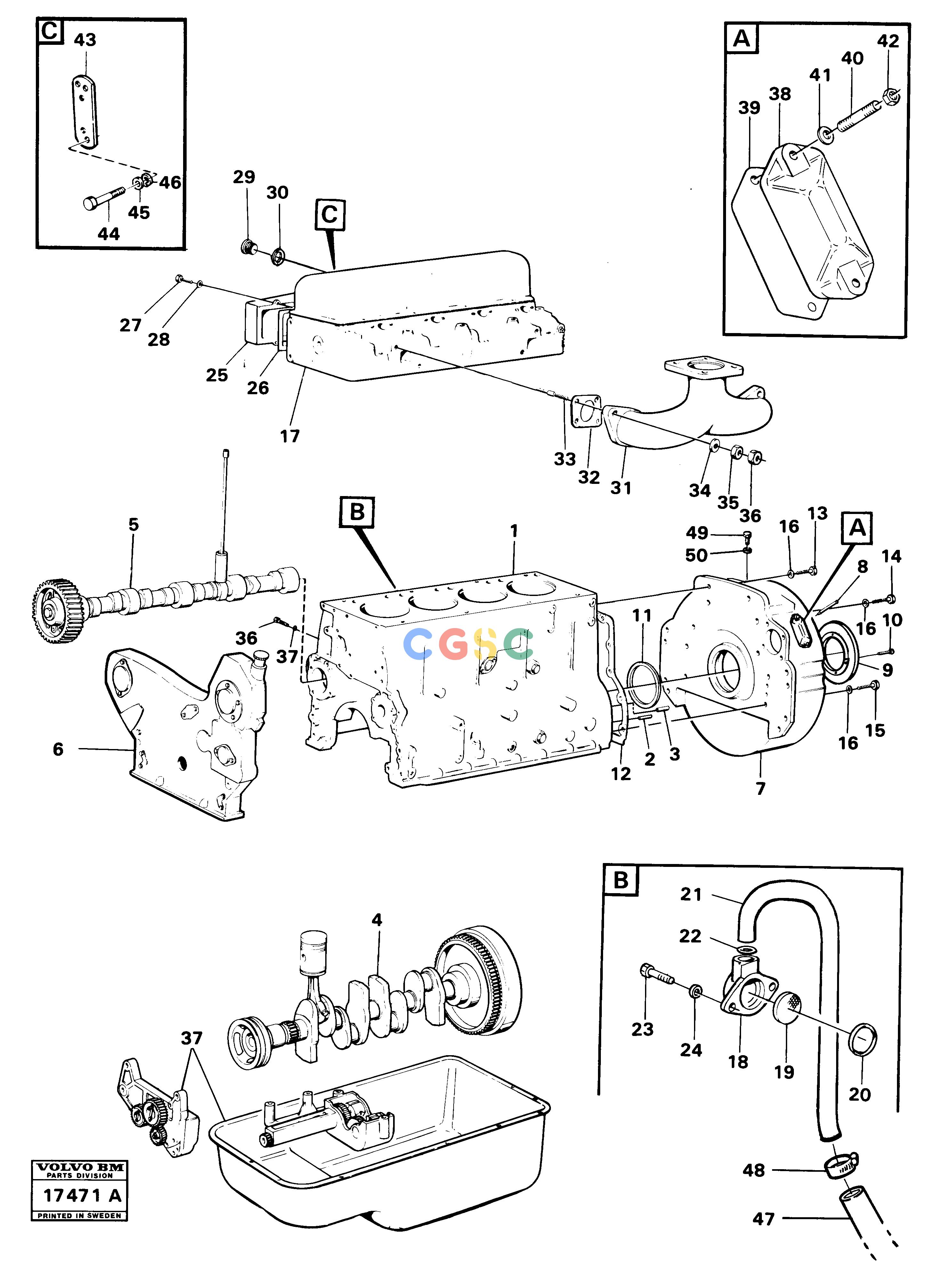

沃尔沃零件查询4200B Engine with fitting parts4200B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
273 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0001] |
Camshaft
|
|
| 45. |
VOE13941907
|
[0002] |
Washer
|
|
| 46. |
VOE13955894
|
[0002] |
Washer
|
|
| 47. |
VOE190993
|
[0001] |
Hose
|
L=560
|
| 48. |
VOE943475
|
[0001] |
Hose clamp
|
|
| 49. |
VOE955560
|
[0002] |
Hexagon screw
|
MO 64024 -
|
| 50. |
VOE60110353
|
[0002] |
Washer
|
MO 64024 -
|
| |
VOE11990091
|
[0001] |
De-carbonizing kit
|
|
| |
VOE11990089
|
[0001] |
Overhaul kit
|
|
| 6. |
|
[0001] |
Timing gear casing
|
|
| 7. |
VOE4804802
|
[0001] |
Flywheel housing
|
|
| |
VOE17229696
|
[0001] |
Pipe
|
|
| 8. |
VOE4804159
|
[0001] |
Setting indicator
|
|
| 1. |
|
[0001] |
Cylinder block
|
|
| |
VOE905654
|
[0002] |
Drive screw
|
|
| 9. |
VOE787326
|
[0001] |
Oil deflector ring
|
|
| 10. |
VOE905654
|
[0004] |
Drive screw
|
|
| 11. |
VOE477119
|
[0001] |
Crankshaft seal
|
|
| 12. |
VOE1161277
|
[0001] |
Sealant
|
|
| 13. |
VOE955578
|
[0002] |
Hexagon screw
|
|
| 14. |
VOE955580
|
[0006] |
Hexagon screw
|
|
| 15. |
VOE955583
|
[0002] |
Hexagon screw
|
|
| 16. |
VOE941911
|
[0010] |
Spring washer
|
|
| 17. |
|
[0001] |
Cylinder head
|
|
| 2. |
VOE785800
|
[0002] |
Pin
|
|
| 18. |
VOE787013
|
[0001] |
Anchorage
|
|
| 19. |
VOE7408578
|
[0001] |
Oil Catcher
|
|
| |
VOE6602101
|
[0001] |
Filter
|
|
| 20. |
VOE778633
|
[0001] |
Gasket
|
|
| 21. |
VOE4804207
|
[0001] |
Breather pipe
|
|
| 22. |
VOE787017
|
[0001] |
Sealing ring
|
|
| 23. |
VOE13940135
|
[0002] |
Screw
|
|
| 24. |
VOE13941907
|
[0003] |
Washer
|
|
| |
VOE13955523
|
[0001] |
Screw
|
|
| 25. |
VOE4804735
|
[0001] |
Tube
|
|
| 3. |
VOE191171
|
[0002] |
Pin
|
|
| 26. |
VOE11030035
|
[0001] |
Gasket
|
|
| 27. |
VOE13940136
|
[0004] |
Screw
|
L = 64
|
| |
VOE955530
|
[0004] |
Hexagon screw
|
L = 83
|
| 28. |
VOE13941907
|
[0008] |
Washer
|
|
| 29. |
VOE7192114
|
[0001] |
Plug
|
|
| 30. |
VOE957185
|
[0001] |
Gasket
|
|
| 31. |
VOE4804308
|
[0001] |
Exhaust pipe
|
|
| 32. |
VOE4804249
|
[0004] |
Gasket
|
|
| 33. |
VOE953492
|
[0008] |
Stud
|
|
| 34. |
VOE422217
|
[0008] |
Spacer sleeve
|
|
| 4. |
|
[0001] |
Crankshaft
|
|
| 35. |
VOE942299
|
[0008] |
Flange nut
|
|
| 36. |
VOE955835
|
[0008] |
Hexagon nut
|
|
| 37. |
|
[0001] |
Lubricating system
|
SEE GROUP 22
|
| 38. |
VOE4772168
|
[0001] |
Cover
|
|
| 39. |
VOE4804167
|
[0001] |
Gasket
|
|
| 40. |
VOE924054
|
[0002] |
Stud
|
|
| 41. |
VOE955893
|
[0002] |
Plain washer
|
|
| 42. |
VOE946035
|
[0002] |
Lock nut
|
|
| 43. |
VOE465326
|
[0001] |
Bracket
|
|
| 44. |
VOE13955294
|
[0002] |
Screw
|
|
