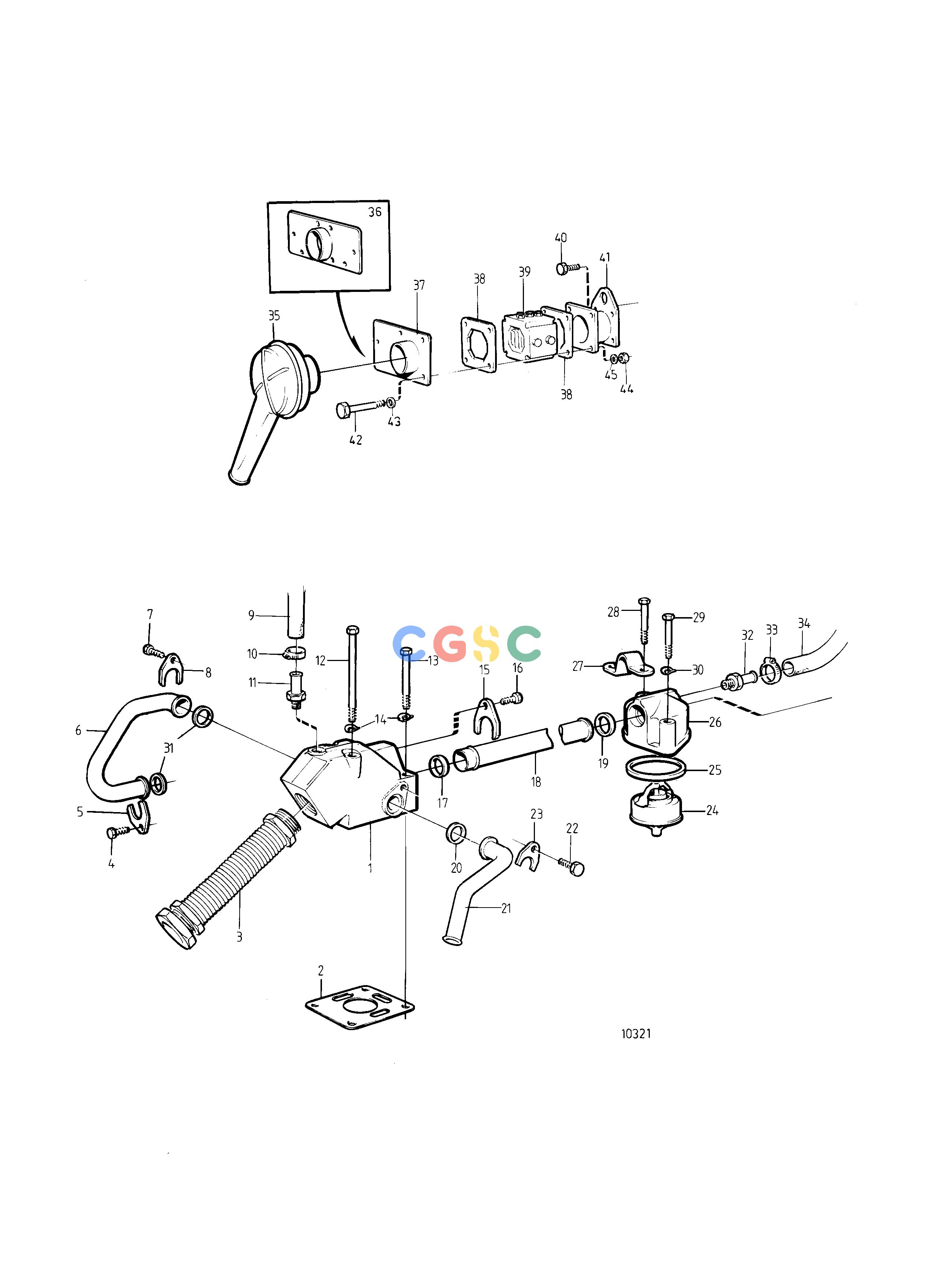

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TCooling SystemCooling System, Induction and Exhaust Manifold: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
152 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858413
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
840902
|
[1] |
Gasket
|
|
| 3. |
833841
|
[1] |
Compensator
|
|
| 4. |
955269
|
[2] |
Hexagon screw
|
|
| 5. |
840676
|
[2] |
Clamp
|
|
| 6. |
840719
|
[1] |
Pipe
|
|
| 7. |
955269
|
[1] |
Hexagon screw
|
|
| 8. |
840676
|
[1] |
Clamp
|
|
| 9. |
942700
|
[1] |
Hose
|
Expansion tank-exhaust bend, L=400mm
|
| 10. |
961662
|
[1] |
Hose clamp
|
|
| 11. |
858185
|
[1] |
Hose coupling
|
|
| 12. |
955305
|
[2] |
Hexagon screw
|
L=75mm
|
| 13. |
955300
|
[2] |
Hexagon screw
|
L=50mm
|
| 14. |
941907
|
[4] |
Spring washer
|
|
| 15. |
840740
|
[1] |
Clamp
|
|
| 16. |
955269
|
[1] |
Hexagon screw
|
|
| 17. |
418445
|
[1] |
Sealing ring
|
|
| 18. |
840680
|
[1] |
Coolant pipe
|
|
| 19. |
418411
|
[1] |
Sealing ring
|
|
| 20. |
418445
|
[1] |
Sealing ring
|
|
| 21. |
840732
|
[1] |
Hose connection
|
|
| 22. |
955269
|
[1] |
Hexagon screw
|
|
| 23. |
840740
|
[1] |
Clamp
|
|
| 24. |
875795
|
[1] |
Thermostat kit
|
74°C
|
| 25. |
416033
|
[1] |
Sealing ring
|
|
| 26. |
840675
|
[1] |
Thermostat housing
|
|
| 27. |
|
|
|
|
| 28. |
955300
|
[1] |
Hexagon screw
|
L=50mm
|
| 29. |
955299
|
[1] |
Hexagon screw
|
L=45mm
|
| 30. |
941907
|
[1] |
Spring washer
|
|
| 31. |
418445
|
[2] |
Sealing ring
|
|
| 32. |
858185
|
[1] |
Hose coupling
|
|
| 33. |
961662
|
[1] |
Hose clamp
|
|
| 34. |
942700
|
[1] |
Hose
|
Expansion tank-thermostat housing
|
| 35. |
840691
|
[1] |
Silencer
|
|
| 37. |
860191
|
[1] |
Connection flange
|
|
| 38. |
424619
|
[2] |
Gasket
|
|
| 39. |
|
|
|
See group 3
|
| 40. |
955271
|
[4] |
Hexagon screw
|
|
| 41. |
858168
|
[1] |
Spacer flange
|
|
| 42. |
977820
|
[4] |
Hexagon screw
|
|
| 43. |
955894
|
[4] |
Washer
|
|
| 44. |
948645
|
[4] |
Flange lock nut
|
|
| 45. |
941907
|
[4] |
Spring washer
|
|
