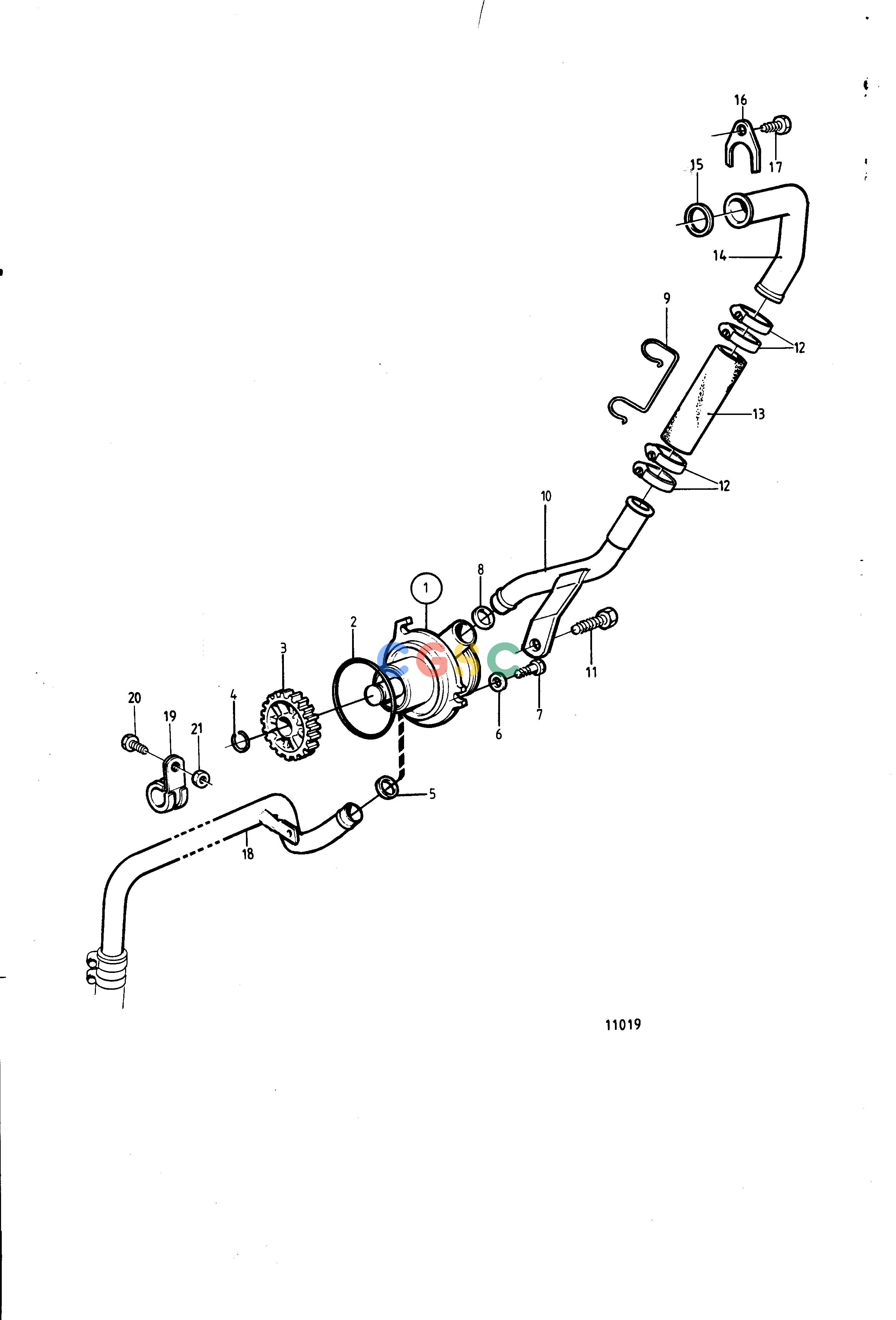

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TCooling SystemSea Water Pump with Install. Comps. Seawater-cooled Engine: 861009EPC Volvo Penta Parts
广数供应链运营团队, 14 02月, 2025，浏览：
428 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861009
|
[1] |
Sea water pump
|
2003D
|
| 2. |
925093
|
[1] |
O-ring
|
|
| 3. |
858526
|
[1] |
Gear
|
|
| 4. |
914446
|
[1] |
Snap ring
|
|
| 5. |
829714
|
[1] |
Sealing ring
|
|
| 6. |
955894
|
[1] |
Washer
|
|
| 7. |
955295
|
[1] |
Hexagon screw
|
L=20mm
|
| 7. |
955303
|
[1] |
Hexagon screw
|
L=65mm
|
| 8. |
829714
|
[1] |
Sealing ring
|
|
| 10. |
840721
|
[1] |
Coolant pipe
|
|
| 11. |
955303
|
[1] |
Hexagon screw
|
L=65mm
|
| 12. |
961665
|
[4] |
Hose clamp
|
|
| 13. |
952969
|
[1] |
Hose
|
|
| 14. |
840732
|
[1] |
Hose connection
|
|
| 15. |
418445
|
[1] |
Sealing ring
|
|
| 16. |
840740
|
[1] |
Clamp
|
|
| 17. |
955269
|
[1] |
Hexagon screw
|
L=12mm
|
| 18. |
840749
|
[1] |
Tube, cooling water pipe
|
Reverse gear-sea water pump, 2002,2002B,2002D
|
| 19. |
952627
|
[1] |
Clamp
|
|
| 20. |
955269
|
[1] |
Hexagon screw
|
For 840802,840749
|
| 21. |
955781
|
[1] |
Hexagon nut
|
|
