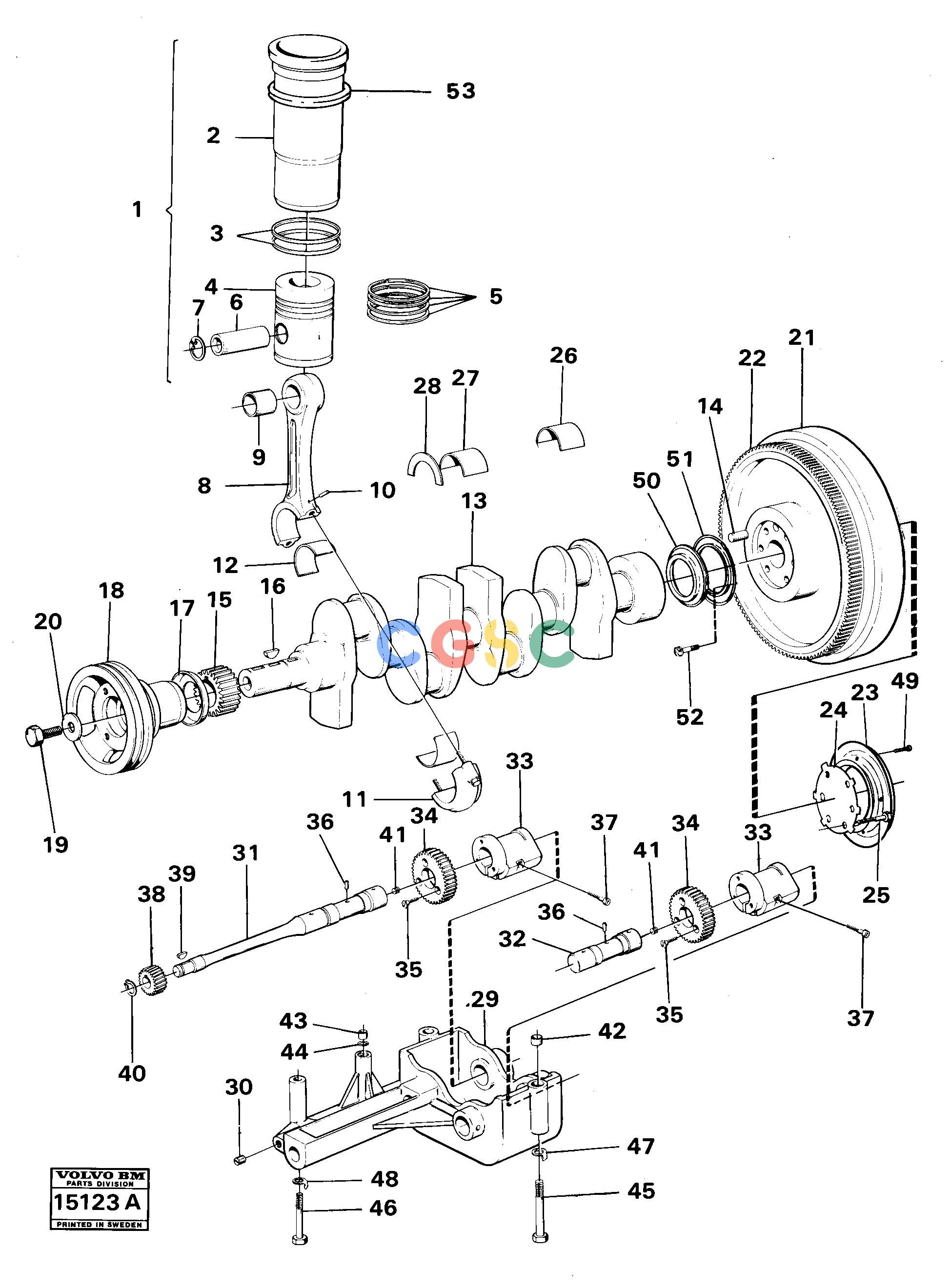

沃尔沃零件查询4300 Crankshaft and related parts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
430 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
|
[0004] |
Cylinder liner
|
|
| |
VOE754593
|
[0001] |
Bearing
|
0.040"UD
|
| |
VOE754594
|
[0001] |
Bearing
|
0.050"UD
|
| 28. |
VOE276754
|
[0001] |
Thrust washer
|
STDD
|
| |
VOE276755
|
[0001] |
Thrust washer
|
0.1MM ÖD
|
| |
VOE276756
|
[0001] |
Thrust washer
|
0.2MM ÖD
|
| |
VOE276757
|
[0001] |
Thrust washer
|
0.3MM ÖD
|
| |
VOE787447
|
[0001] |
Balancing weight
|
PROD NO 16100,16106
|
| |
VOE4804471
|
[0001] |
Vibration damper
|
PROD NO 16300,16305,
|
| |
|
|
None
|
16307
|
| 29. |
VOE4804465
|
[0001] |
Bracket
|
|
| 3. |
VOE785948
|
[0008] |
Sealing ring
|
MO -41419
|
| 30. |
VOE7016324
|
[0001] |
Plug
|
|
| 31. |
VOE785439
|
[0001] |
Shaft
|
|
| 32. |
VOE785440
|
[0001] |
Shaft
|
|
| 33. |
VOE787448
|
[0002] |
Counterweight
|
PROD NO 16100,16106
|
| |
VOE4804464
|
[0002] |
Counterweight
|
PROD NO 16300,16305
|
| |
|
|
None
|
16307
|
| 34. |
VOE787212
|
[0002] |
Gear
|
|
| 35. |
VOE956553
|
[0002] |
Hex. socket screw
|
|
| |
VOE956556
|
[0004] |
Hex. socket screw
|
|
| 36. |
VOE951950
|
[0002] |
Spring pin
|
|
| 3. |
VOE4804532
|
[0004] |
Sealing ring
|
ÖVRE/UPPER
|
| 37. |
VOE956588
|
[0002] |
Hex. socket screw
|
|
| 38. |
VOE787298
|
[0001] |
Gear
|
|
| 39. |
VOE910115
|
[0001] |
Woodruff key
|
|
| 40. |
VOE914454
|
[0001] |
Snap ring
|
|
| 41. |
VOE7016324
|
[0002] |
Plug
|
|
| 42. |
VOE785649
|
[0001] |
Sleeve
|
|
| 43. |
VOE785438
|
[0001] |
Tube
|
|
| 44. |
VOE925055
|
[0001] |
O-ring
|
|
| 45. |
VOE7191812
|
[0002] |
Screw
|
|
| 46. |
VOE955556
|
[0001] |
Hexagon screw
|
|
| |
VOE4804532
|
[0004] |
Sealing ring
|
NEDRE/LOWER
|
| 47. |
VOE921231
|
[0002] |
Lock washer
|
|
| 48. |
VOE921221
|
[0001] |
Lock washer
|
|
| 49. |
VOE905654
|
[0004] |
Drive screw
|
|
| 50. |
VOE477119
|
[0001] |
Crankshaft seal
|
|
| 51. |
VOE787326
|
[0001] |
Oil deflector ring
|
|
| 52. |
VOE905654
|
[0004] |
Drive screw
|
|
| 53. |
VOE4804380
|
[REQ] |
Shim
|
THICK=0,12
|
| |
VOE4804381
|
[REQ] |
Shim
|
THICK=0,20
|
| |
VOE4804382
|
[REQ] |
Shim
|
THICK=0,30
|
| |
VOE4804383
|
[REQ] |
Shim
|
THICK=0,50
|
| 4. |
|
[0004] |
Piston
|
|
| 1. |
VOE6630627
|
[0004] |
Cylinder liner kit
|
|
| 5. |
VOE6630616
|
[0004] |
Piston ring kit
|
|
| 6. |
|
[0004] |
Piston pin
|
|
| 7. |
VOE914524
|
[0008] |
Retaining ring
|
|
| 8. |
VOE4804450
|
[0004] |
Connecting rod
|
|
| 9. |
VOE11030066
|
[0004] |
Bearing bushing
|
|
| 10. |
VOE131205
|
[0008] |
Pin
|
|
| 11. |
VOE420126
|
[0008] |
Screw
|
|
| 12. |
VOE270093
|
[0004] |
Bearing
|
|
| |
VOE270094
|
[0004] |
Bearing
|
0.010"UD
|
| |
VOE270095
|
[0004] |
Bearing
|
0.020"UD
|
| |
|
|
None
|
PROD NO 16100, 16106.
|
| |
VOE270096
|
[0004] |
Bearing
|
0.030"UD
|
| |
VOE270097
|
[0004] |
Bearing
|
0.040"UD
|
| |
VOE270098
|
[0004] |
Bearing
|
0.050"UD
|
| 13. |
VOE787445
|
[0001] |
Crankshaft
|
PROD NO 16100, 16106.
|
| |
VOE4804294
|
[0001] |
Crankshaft
|
PROD NO 16300,16305,
|
| |
|
|
None
|
16307
|
| 14. |
VOE950677
|
[0001] |
Pin
|
|
| 15. |
VOE787299
|
[0001] |
Gear
|
|
| 16. |
VOE910127
|
[0003] |
Woodruff key
|
|
| 17. |
VOE785540
|
[0001] |
Oil deflector ring
|
|
| |
VOE6630596
|
[0004] |
Cylinder liner kit
|
PROD NO 16300,16305,
|
| 18. |
VOE787614
|
[0001] |
Pulley
|
|
| 19. |
VOE787163
|
[0001] |
Screw
|
|
| 20. |
VOE785542
|
[0001] |
Washer
|
|
| 21. |
VOE785469
|
[0001] |
Flywheel
|
PROD NO 16100, 16106
|
| |
VOE11030041
|
[0001] |
Flywheel
|
|
| |
|
|
None
|
PROD NO 16300, 16305,
|
| |
|
|
None
|
16307
|
| |
VOE11030041
|
[0001] |
Flywheel
|
PROD NO 16300, 16305
|
| |
|
|
None
|
16307
|
| 22. |
VOE4804931
|
[0001] |
Gear ring
|
|
| 23. |
VOE785820
|
[0001] |
Ring
|
|
| 24. |
VOE785483
|
[0001] |
Lock washer
|
|
| 25. |
VOE955724
|
[0006] |
Hexagon screw
|
|
| |
|
|
None
|
16307
|
| 26. |
VOE270432
|
[0004] |
Main bearing kit
|
STDD
|
| |
VOE270433
|
[0004] |
Main bearing kit
|
0.010"UD
|
| |
VOE270434
|
[0004] |
Main bearing kit
|
0.020"UD
|
| |
VOE270435
|
[0004] |
Main bearing kit
|
0.030"UD
|
| |
VOE270436
|
[0004] |
Main bearing kit
|
0.040"UD
|
| |
VOE270437
|
[0004] |
Main bearing kit
|
0.050"UD
|
| 27. |
VOE754589
|
[0001] |
Bearing shell kit
|
STDD
|
| |
VOE754590
|
[0001] |
Bearing
|
0.010"UD
|
| |
VOE754591
|
[0001] |
Bearing
|
0.020"UD
|
| |
VOE754592
|
[0001] |
Bearing
|
0.030"UD
|
