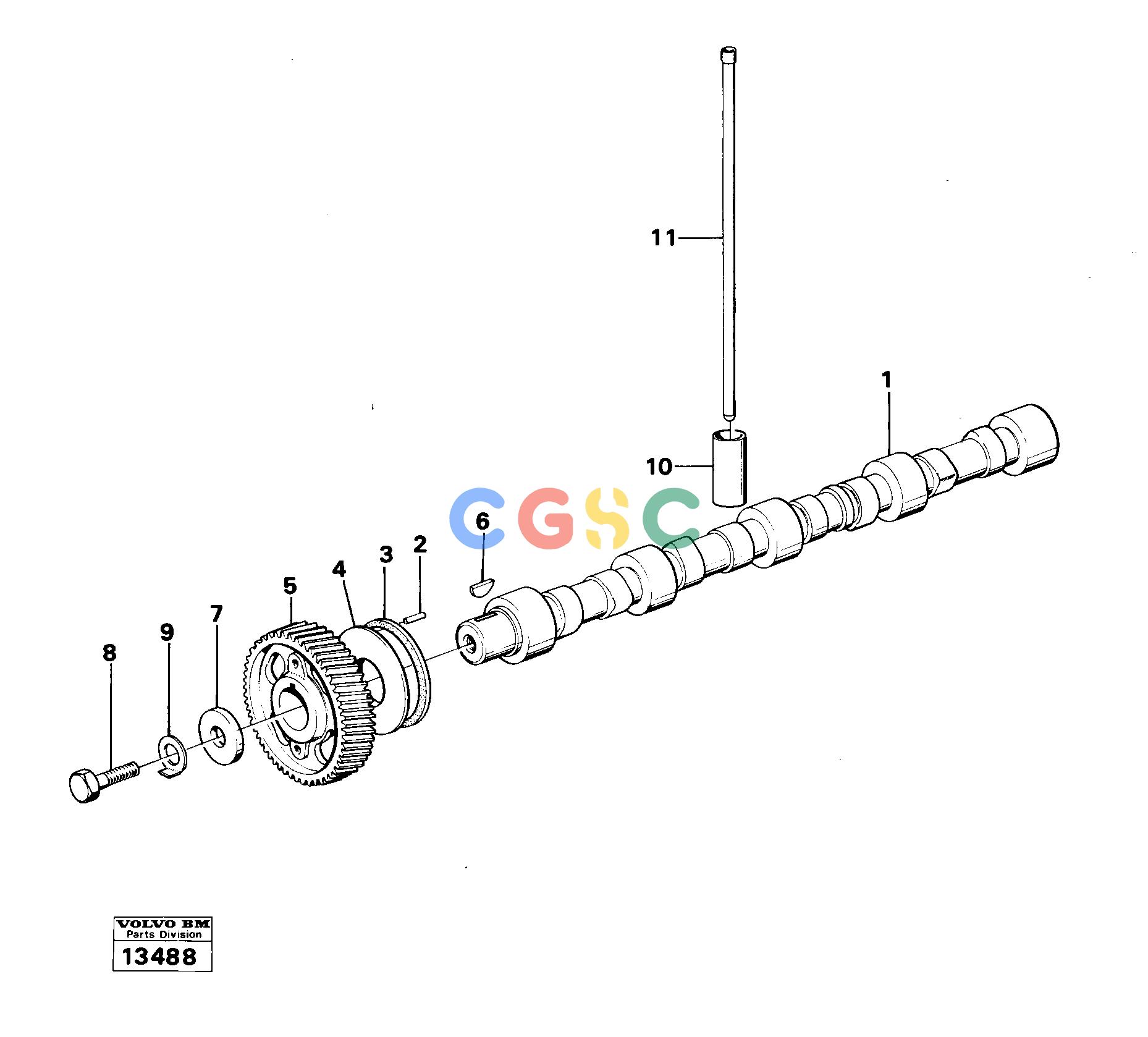

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE785789
|
[0001] |
Camshaft gear
|
|
| 6. |
VOE910122
|
[0001] |
Woodruff key
|
|
| 7. |
VOE785584
|
[0001] |
Washer
|
|
| 8. |
VOE955581
|
[0001] |
Hexagon screw
|
|
| 9. |
VOE785589
|
[0001] |
Lock washer
|
|
| 1. |
VOE4804452
|
[0001] |
Camshaft
|
|
| 10. |
VOE421067
|
[0008] |
Tappet
|
|
| |
|
|
None
|
PROD NO 16100, 16106
|
| 11. |
VOE785560
|
[0008] |
Push rod
|
|
| |
VOE4804452
|
[0001] |
Camshaft
|
PROD NO 16300,16305,
|
| |
|
|
None
|
16307
|
| 2. |
VOE907172
|
[0001] |
Grooved pin
|
|
| 3. |
VOE785591
|
[0001] |
Sealing ring
|
|
| 4. |
VOE11030043
|
[0001] |
Thrust washer
|
|
