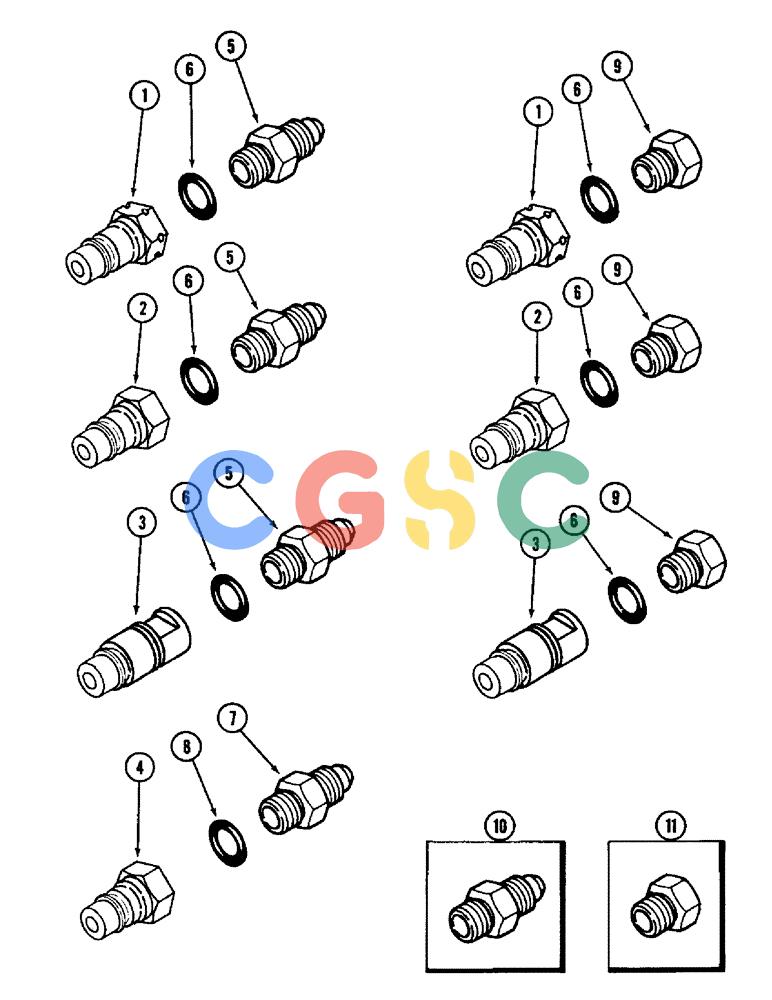

| 1. |
395149R1
|
[1] |
QUICK MALE COUPLING
|
IH
COUPLING ASSEMBLY - male, poppet type, 7/8-14 inch (Will work with ISO female coupling but at lower efficiency than 1272399C2 or 1285718C2) Superseded by part number: 86615558
|
| 2. |
1272399C2
|
[1] |
QUICK MALE COUPLING
|
IH
COUPLING ASSEMBLY - male, ISO standard, 7/8-14 inch Superseded by part number: 86615558
|
| 3. |
544787R91
|
[1] |
COUPLING, BREAK AWAY
|
IH
COUPLING ASSEMBLY - male, ball type, 7/8-14 inch (Will not work with ISO female coupling) Superseded by part number: 1341843C1
|
| 4. |
1285718C2
|
[1] |
QUICK MALE COUPLING
|
IH
ASSEMBLY - male, ISO standard, 3/4-16 inch
|
| 5. |
935433R1
|
[1] |
HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring
|
IH
CONNECTOR - 3/8 tube, 9/16-18 x 7/8-14 inch Superseded by part number: 525646
|
| 6. |
364885R1
|
[1] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
|
IH
- 3/4 x 61/64 x 3/32 inch (19 x 24 x 2 MM) Superseded by part number: 167269
|
| 7. |
587639R1
|
[1] |
HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring
|
IH
CONNECTOR - 3/8 tube, 9/16-18 x 3/4-16 inch Superseded by part number: 128817
|
| 8. |
570828R1
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
IH
- 41/64 x 13/16 x 3/32 inch (16 x 21 x 2 MM) Superseded by part number: 128825
|
| 9. |
407045R1
|
[1] |
FITTING
|
IH
BUSHING - 7/8-14 male x 3/4-16 inch female (Use to connect 7/8-14 coupling to flow orifice with 3/4-16 inch thread) Superseded by part number: 84323487
|
| 10. |
607728R1
|
[1] |
HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF
|
IH
CONNECTOR - 3/8 tube, 9/16-18 x 1/2 inch PT Superseded by part number: 19956
|
| 11. |
ZA105663
|
[1] |
CONNECTOR, ELEC
|
IH
ADAPTER - 1/2 inch male PT x 3/4-16 female (Use to connect 1/2 inch PT coupling to flow orifice with 3/4-16 thread)
|
