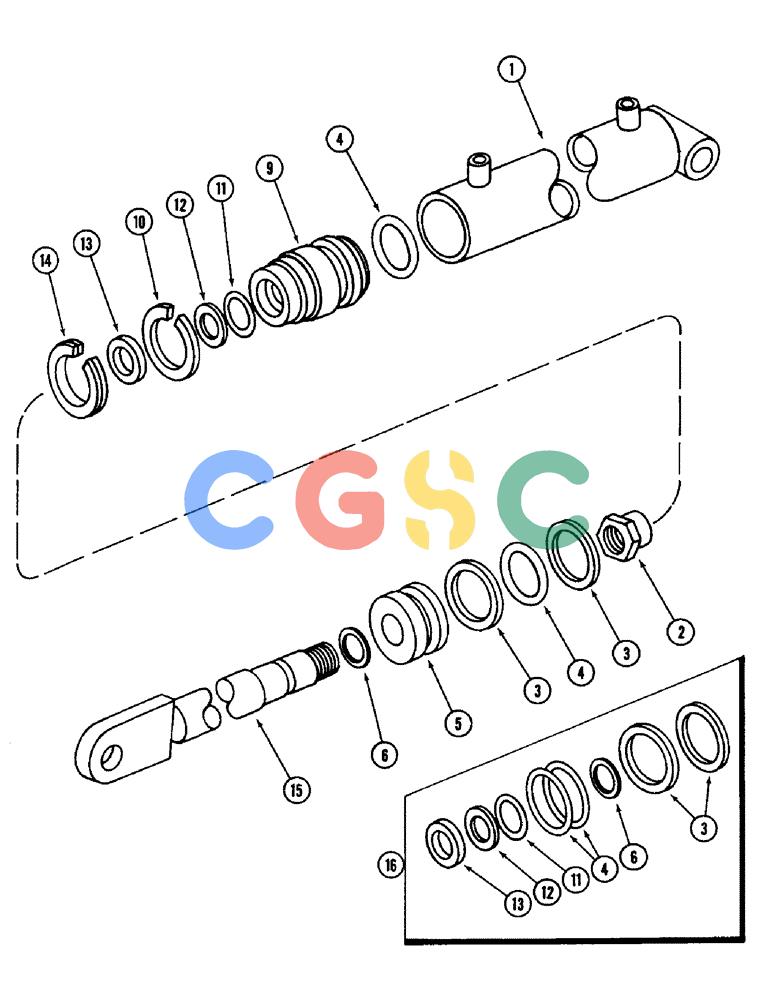

凯斯零件查询(3440) - CASE IH ROUND BALER (1/87-12/87) (22) - TWINE TUBE HYDRAULIC CYLINDER, 1-1/2 INCH (38 MM) BORE X 8" (203MM) STROKE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
400 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
ZA103959
|
[1] |
CYLINDER
|
CAS
ASSEMBLY - twine tube (KMW) Superseded by part number: ZA105804
|
| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
BODY ASSEMBLY - cylinder (Order ZA103959)
|
| 2. |
1958264C1
|
[1] |
NUT
|
CAS
- hex lock, 1/2 inch NF
|
| 5. |
ZA516460
|
[1] |
PISTON
|
CAS
- cylinder
|
| 9. |
ZA516455
|
[1] |
HEAD
|
CAS
- cylinder
|
| 10. |
ZA516457
|
[1] |
RING
|
CAS
- retaining
|
| 14. |
ZA516458
|
[1] |
RING
|
CAS
- retaining
|
| 15. |
ZA104015
|
[1] |
SHAFT
|
CAS
ROD ASSEMBLY - piston
|
| 16. |
ZA516462
|
[1] |
SEAL KIT
|
CAS
- seal, Includes: Ref. 3, 4, 6, 11, 12, and 13
|
