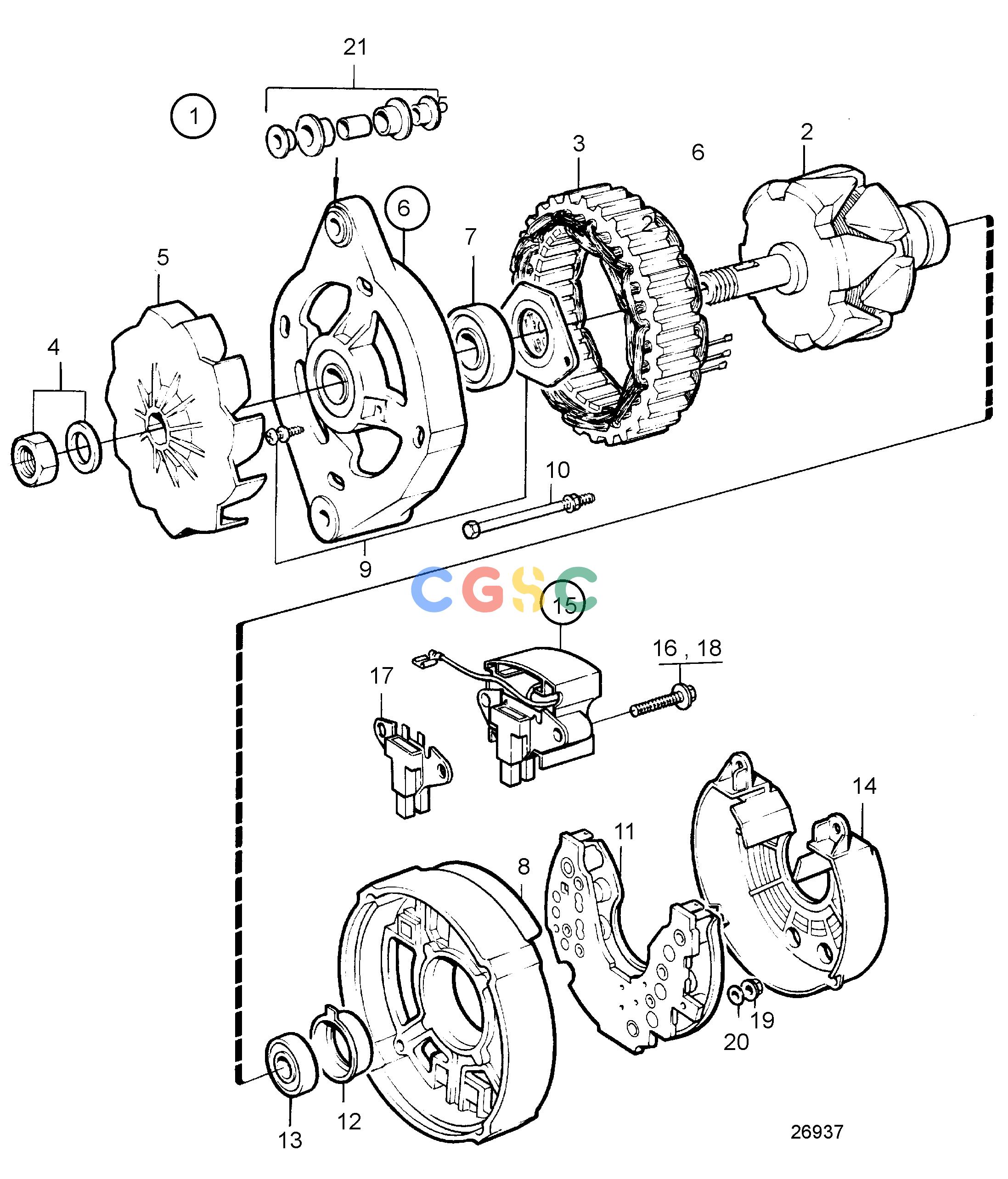

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemAlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
448 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
841765
|
[1] |
Alternator
|
For 12 voltage electric system., 14V 50A
|
| 2. |
|
|
|
|
| 3. |
848401
|
[1] |
Field winding
|
|
| 4. |
6212688
|
[1] |
Mounting kit
|
(840620)
|
| 5. |
840621
|
[1] |
Fan
|
Repl by 860281
|
| 5. |
860281
|
[1] |
Fan kit
|
|
| 6. |
|
|
|
|
| 7. |
860432
|
[1] |
Ball bearing
|
(848402)
|
| 8. |
|
|
|
|
| 9. |
840625
|
[1] |
Mounting kit
|
|
| 10. |
840626
|
[1] |
Screw kit
|
|
| 11. |
1696944
|
[1] |
Diode bridge
|
(859419) (6212687)
|
| 12. |
840629
|
[1] |
Bearing race
|
|
| 13. |
840630
|
[1] |
Ball bearing
|
|
| 14. |
840631
|
[1] |
Protecting casing
|
|
| 15. |
840633
|
[1] |
Governor
|
Repl by 858840
|
| 15. |
858840
|
[1] |
Governor
|
|
| 15. |
872367
|
[1] |
Regulator kit
|
|
| 16. |
859312
|
[6] |
Screw
|
|
| 17. |
840632
|
[1] |
Brush retainer
|
|
| 18. |
859312
|
[2] |
Screw
|
|
| 19. |
955779
|
[1] |
Hexagon nut
|
(M4) w
|
| 19. |
965483
|
[2] |
Flange nut
|
(M5) -,61
|
| 19. |
945407
|
[1] |
Flange nut
|
(M6) +
|
| 20. |
941904
|
[1] |
Spring washer
|
(For M4) W
|
| 21. |
840634
|
[1] |
Guide
|
|
