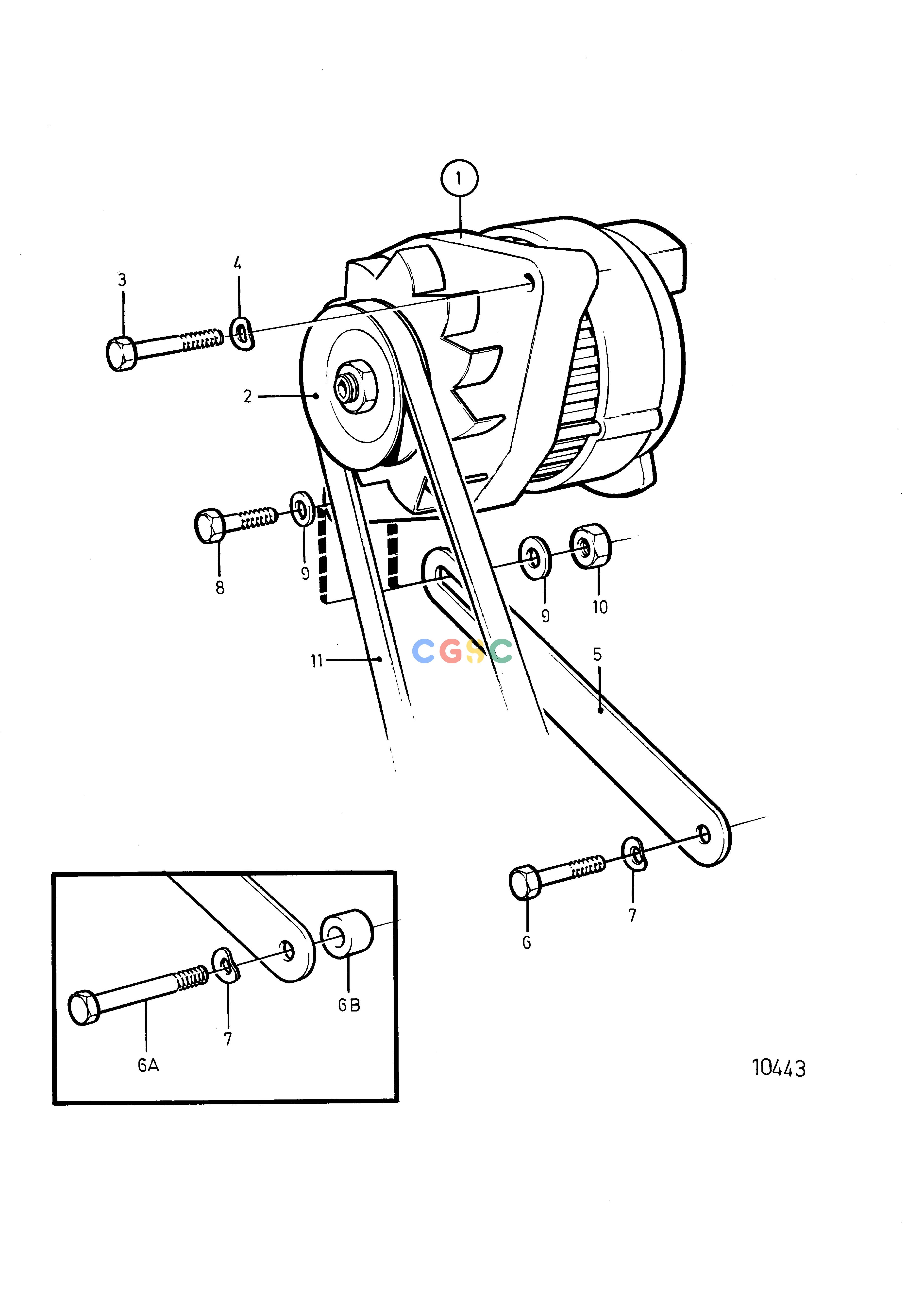

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TElectrical SystemAlternator with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
261 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
841765
|
[1] |
Alternator
|
For 12 voltage electric system., SN-20506
|
| 1. |
858838
|
[1] |
Alternator
|
For 12 voltage electric system., Also available as an exchange part., SN20507-
|
| 2. |
841811
|
[1] |
Pulley
|
|
| 3. |
858047
|
[1] |
Screw
|
L=70mm
|
| 4. |
941908
|
[1] |
Spring washer
|
|
| 5. |
840593
|
[1] |
Tensioner
|
|
| 6. |
955301
|
[1] |
Hexagon screw
|
L=55mm
|
| 6A. |
955305
|
[1] |
Hexagon screw
|
To be used when starter motor 859553 is mounted., L=75mm
|
| 6B. |
826652
|
[1] |
Spacer sleeve
|
To be used when starter motor 859553 is mounted.
|
| 7. |
941907
|
[1] |
Spring washer
|
|
| 8. |
955298
|
[1] |
Hexagon screw
|
|
| 9. |
976944
|
[1] |
Washer
|
|
| 10. |
963106
|
[1] |
Lock nut
|
|
| 11. |
966903
|
[1] |
V-belt
|
|
