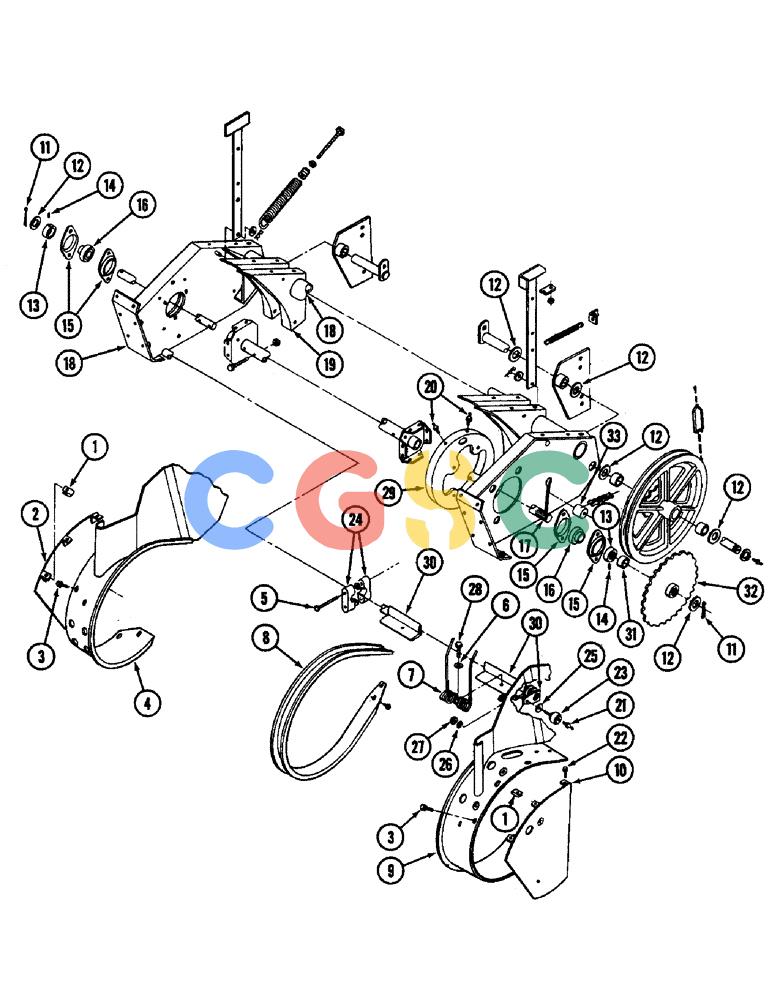

| 1. |
488837C1
|
[8] |
SPRING NUT
|
IH
- speed, 5/16 inch
|
| 2. |
ZA104585
|
[1] |
FILLER
|
IH
- right
|
| 3. |
155807C1
|
[8] |
BOLT,Hex Serr, 5/16" - 18 x 1"
|
IH
Superseded by part number: 86512168
|
| 4. |
ZA105683
|
[1] |
BAND
|
IH
- end, right Superseded by part number: 198012A1
|
| 5. |
180137
|
[16] |
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
|
IH
- hex, 3/8 NC x 2-3/4 inch Superseded by part number: 113-248
|
| 6. |
142619H
|
[36] |
WASHER
|
IH
- flat, 13/32 x 3/4 x 7/64 inch (10 x 19 x 3 MM) Superseded by part number: 86624144
|
| 7. |
ZA103012
|
[36] |
TOOTH
|
IH
FINGER - spring Superseded by part number: ZA106550
|
| 8. |
ZA105680
|
[17] |
BAND
|
IH
- finger
|
| 9. |
ZA105684
|
[1] |
BAND
|
IH
- end, left Superseded by part number: 198013A1
|
| 10. |
ZA104584
|
[1] |
FILLER
|
IH
- left
|
| 11. |
432-1628
|
[2] |
COTTER PIN,1/4" x 1 3/4"
|
CAS
Pin, Split (Cotter), 1/4" x 1 3/4" Superseded by part number: 87041
|
| 12. |
22050R1
|
[1] |
WASHER
|
IH
- flat, 1-9/32 x 1-3/4 x 3/64 inch (33 x 44 x 1 MM) Superseded by part number: 87613234
|
| 13. |
557995R11
|
[2] |
COLLAR
|
IH
- locking Superseded by part number: 47508396
|
| 14. |
192450
|
[1] |
SET SCREW,Hex Soc, 5/16"-18 x 5/16"
|
IH
SCREW - set, headless hex socket, 5/16 NC x 5/16 inch Superseded by part number: 115321
|
| 15. |
581469R1
|
[4] |
FLANGE,Bearing
|
IH
HOUSING - bearing
|
| 16. |
617667R92
|
[2] |
BALL BEARING,31.75mm ID x 62mm OD x 18mm W
|
CAS
- ball Superseded by part number: 84484181
|
| 17. |
ZA104210
|
[1] |
SHAFT
|
IH
- drive, pickup, 11-5/16 inch (287 MM)
|
| 18. |
ZA105901
|
[1] |
FRAME
|
CAS
- pickup Superseded by part number: ZA106618
|
| 19. |
ZA105818
|
[17] |
BRACKET
|
CAS
- frame
|
| 20. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 21. |
80722
|
[4] |
LUBE NIPPLE,3/16" x .55" lg, Drive
|
WIN
FITTING - grease, drive-type, 3/16 inch
|
| 22. |
154273C1
|
[8] |
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
|
IH
SCREW - hex flange lock, 3/8 NC x 1 inch Superseded by part number: 9706726
|
| 23. |
96338C1
|
[4] |
BEARING
|
IH
ROLLER - cam follower
|
| 24. |
ZA105580
|
[16] |
BEARING HALF,1.62"
|
IH
CAP - bearing half
|
| 25. |
25710R1
|
[4] |
WASHER
|
IH
- flat, hardened Superseded by part number: 86624188
|
| 26. |
120384
|
[4] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| 27. |
120371
|
[4] |
NUT,1/2"-20, G5
|
IH
Superseded by part number: 280963
|
| 28. |
180122
|
[36] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
IH
- hex, 3/8 NC x 1 inch Superseded by part number: 113-207
|
| 29. |
ZA105772
|
[1] |
CAM
|
IH
- pickup
|
| 30. |
ZA105905
|
[4] |
BAR
|
CAS
- pickup
|
| 31. |
298274R1
|
[1] |
BUSHING
|
IH
SPACER - tube
|
| 32. |
ZA761609
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 20 tooth (Standard)
|
| 32. |
ZA105596
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 15 tooth (Power reduction)
|
| 33. |
ZA712225
|
[1] |
SLIDE
|
IH
- chain
|
