斗山零件查询PISTON 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
880 次

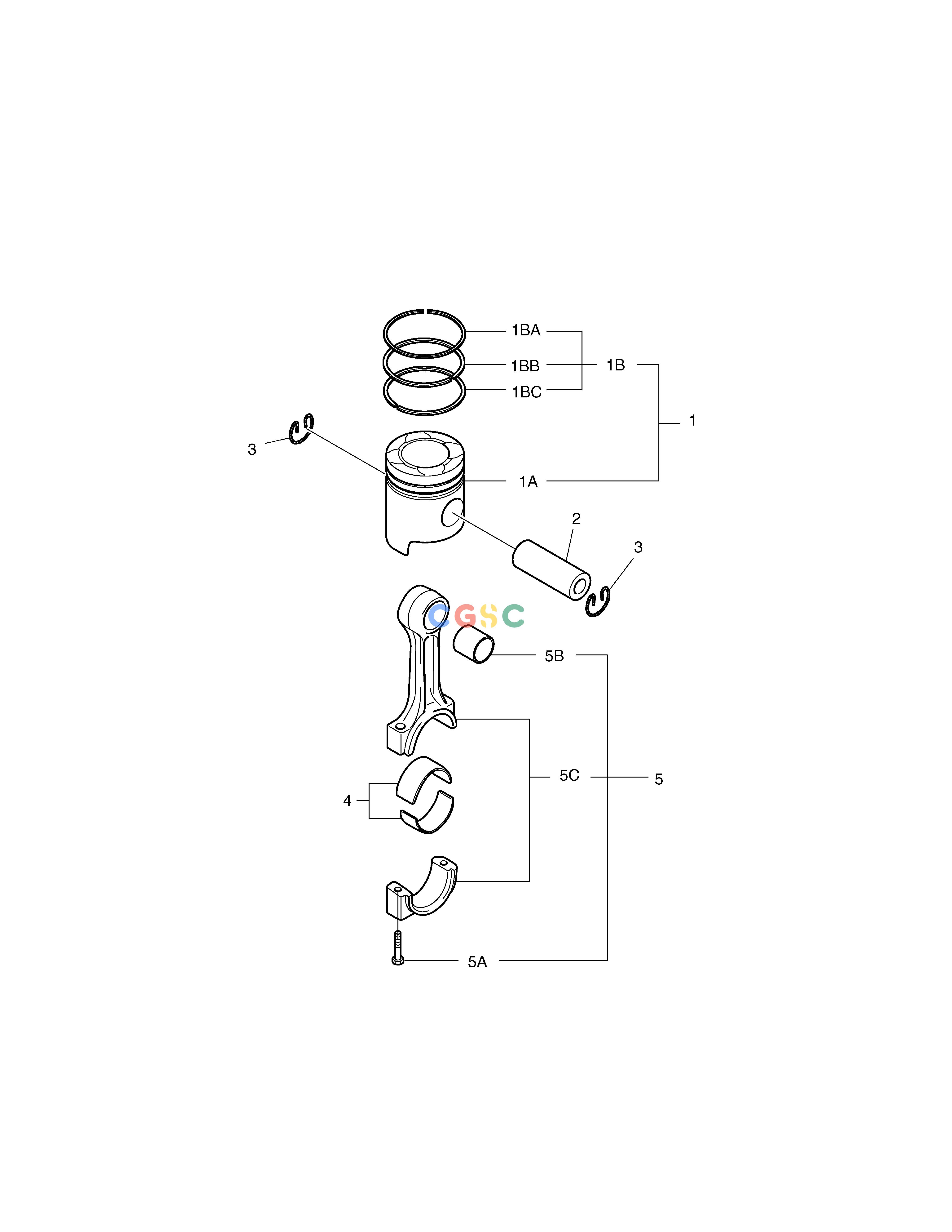

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1019302
|
[-] |
ENGINE PISTON
|
|
| 1. |
K1019303
|
[4] |
PISTON ASS'Y
|
|
| 1A. |
K1019304
|
[1] |
PISTON
|
|
| 1B. |
K1019305
|
[1] |
SET;PISTON RING
|
|
| 1BA. |
K1019306
|
[1] |
RING;PISTON
|
|
| 1BB. |
K1019307
|
[1] |
RING;PISTON
|
|
| 1BC. |
K1019308
|
[1] |
RING;OIL
|
|
| 2. |
K1019309
|
[4] |
PIN;PISTON
|
|
| 3. |
K1019310
|
[8] |
RING;RETAINING
|
|
| 4. |
K1019311
|
[4] |
METAL;CONNECTING ROD
|
|
| 4. |
140112-00003
|
[4] |
|
|
| 5. |
K1019405
|
[4] |
CONNECTING ROD SET
|
|
| 5A. |
K1019314
|
[2] |
SCREW
|
|
| 5B. |
K1019315
|
[1] |
BUSHING
|
|
| 5C. |
K1019316
|
[1] |
ROD;CONNECTING
|
|
