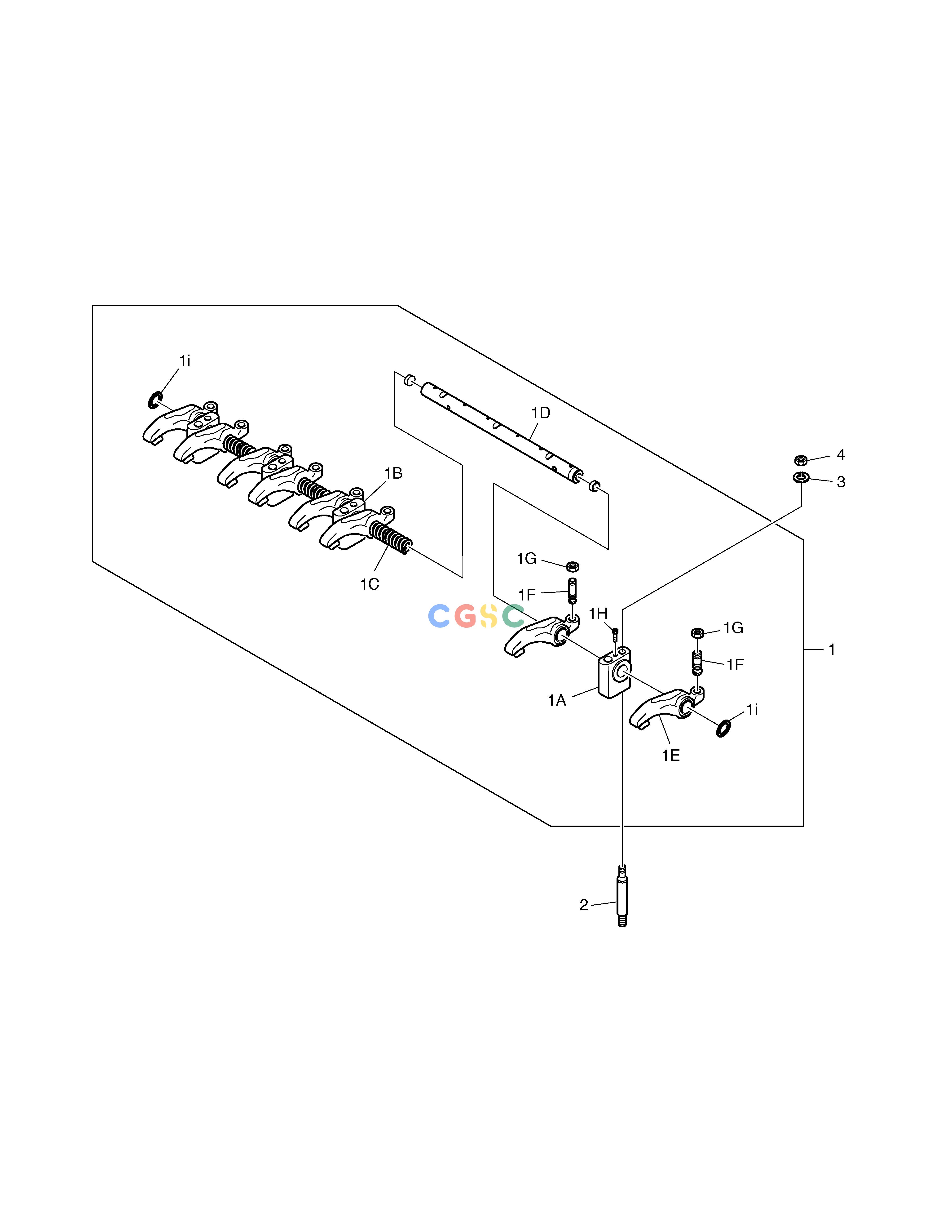

斗山零件查询ROCKER ARM 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
305 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1019317
|
[-] |
ROCKER LEVER
|
|
| 1. |
K1019318
|
[1] |
ROCKER ARM ASS'Y
|
|
| 1A. |
K1019319
|
[1] |
SUPPORT;ROCKER ARM
|
|
| 1B. |
K1019320
|
[3] |
SUPPORT;ROCKER ARM
|
|
| 1C. |
K1019321
|
[3] |
SPRING
|
|
| 1D. |
K1019322
|
[1] |
SHAFT;ROCKER ARM
|
|
| 1E. |
K1019323
|
[8] |
ARM;ROCKER
|
|
| 1F. |
K1019324
|
[8] |
SCREW
|
|
| 1G. |
K1019325
|
[8] |
NUT
|
|
| 1H. |
K1019326
|
[1] |
SCREW
|
|
| 1i. |
K1019327
|
[2] |
RING;RETAINING
|
|
| 2. |
K1019328
|
[4] |
BOLT;STUD
|
|
| 3. |
K1019329
|
[4] |
WASHER;LOCK
|
|
| 4. |
K1019330
|
[4] |
NUT
|
|
