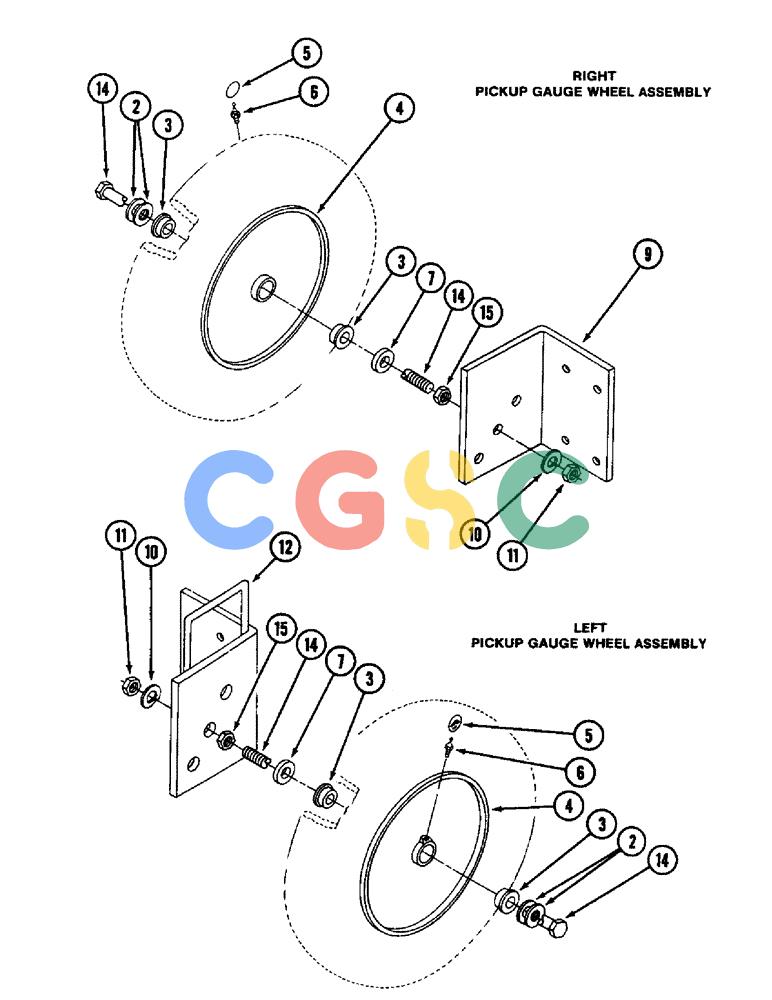

凯斯零件查询(3440) - CASE IH ROUND BALER (1/87-12/87) (40) - PICKUP GAUGE WHEELS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
898 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
21753R1
|
[1] |
WASHER
|
IH
- flat, 25/32 x 1-1/2 x 3/64 inch (20 x 38 x 1 MM) Superseded by part number: 86624157
|
| 3. |
ZA104825
|
[4] |
BUSHING
|
IH
- wheel
|
| 4. |
ZA104582
|
[2] |
WHEEL
|
IH
- for 4.80/4.00 x 8 tire Superseded by part number: 700709878
|
| 5. |
REF
|
[2] |
INSTRUCTION
|
NH
DECAL - grease, 10 hours (See page 62)
|
| 6. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 7. |
467750R1
|
[1] |
WASHER
|
IH
- flat, 25/32 x 1-1/2 x 1/4 inch (20 x 38 x 3 MM) Superseded by part number: 87034831
|
| 9. |
ZA105414
|
[1] |
BRACKET
|
IH
- wheel, right
|
| 10. |
87340
|
[2] |
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
|
NH
WASHER, LOCK, 3/4"
|
| 11. |
280954
|
[2] |
NUT,3/4"-10, G5
|
NH
|
| 12. |
ZA105412
|
[1] |
BRACKET
|
IH
- wheel, left
|
| 14. |
19873R1
|
[2] |
HARDWARE,Hex, 3/4"-10 x 5 1/2", G5
|
IH
BOLT - hex, 3/4 NC x 5-1/2 inch Superseded by part number: 272554
|
| 15. |
426897
|
[2] |
JAM NUT,Jam, 3/4"-10, G5
|
IH
- hex jam, 3/4 inch NC Superseded by part number: 86632557
|
