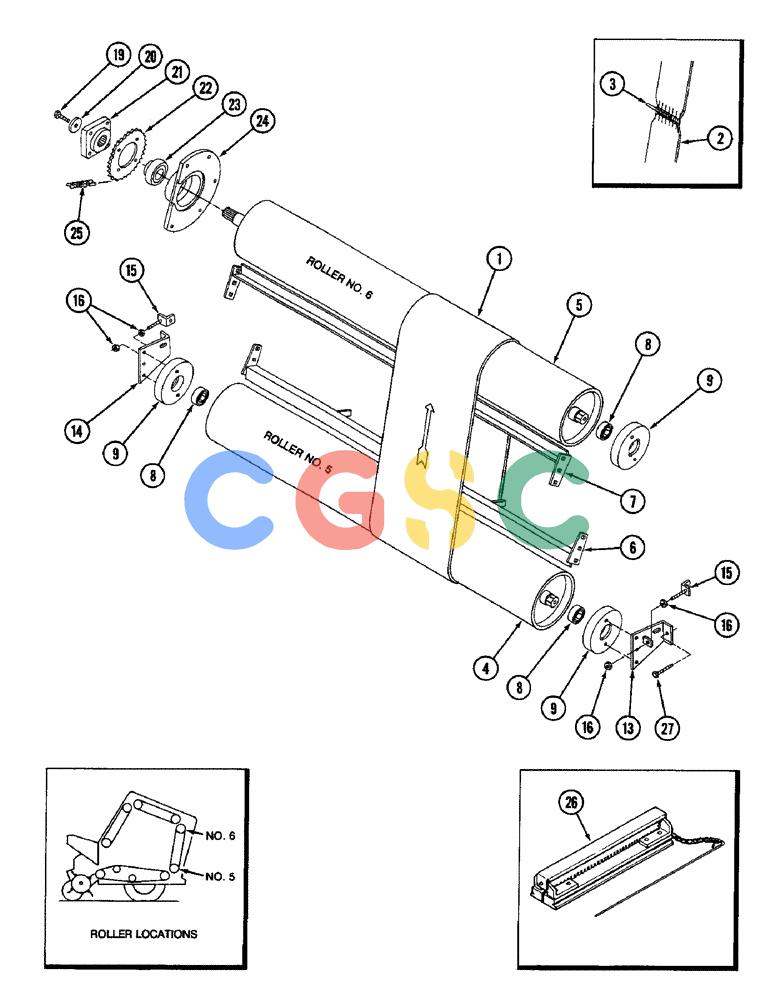

凯斯零件查询(3440) - CASE IH ROUND BALER (1/87-12/87) (44) - BELTS AND ROLLER ASSEMBLIES 5 AND 6 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
757 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZA105005
|
[4] |
BELT
|
IH
- roller, endless, 11 inch (279 MM) wide (Alternate part is ZA105003) Superseded by part number: 700709544
|
| 2. |
ZA105003
|
[4] |
BELT
|
IH
- Roller, 11 inch (279 mm) wide (Alternate part is ZA105005) Superseded by part number: 700724731
|
| 3. |
ZA102977
|
[1] |
PIN
|
IH
- belt
|
| 4. |
ZA105917
|
[1] |
ROLLER
|
CAS
ASSEMBLY - number 5
|
| 5. |
ZA105918
|
[1] |
ROLLER
|
CAS
ASSEMBLY - number 6 Superseded by part number: 228695A1, 251880A1
|
| 6. |
ZA105982
|
[1] |
DIVIDER
|
CAS
- belt
|
| 7. |
ZA105913
|
[1] |
STRIPPER
|
CAS
SCRAPER - roller Superseded by part number: ZA106781
|
| 8. |
ZA105794
|
[3] |
BALL BEARING
|
CAS
BEARING - hex bore, 1.25 inch (32 MM) ID Superseded by part number: 47442495
|
| 9. |
ZA105799
|
[3] |
COLLAR
|
CAS
- bearing
|
| 13. |
ZA104987
|
[1] |
BRACKET
|
IH
TIGHTENER - left
|
| 14. |
ZA104986
|
[1] |
BRACKET
|
IH
TIGHTENER - right
|
| 15. |
ZA104982
|
[2] |
CLIP
|
IH
- angle
|
| 16. |
120377
|
[4] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 19. |
27908R1
|
[1] |
BOLT,1/2" x 1 1/4", Gr 8
|
CAS
- hex, 1/2 NC x 1-1/4 inch, grade 8
|
| 20. |
357020R1
|
[1] |
WASHER
|
IH
- flat, 17/32 x 1-3/4 x 1/4 inch (13 x 44 x 6 MM)
|
| 21. |
ZA104593
|
[1] |
HUB
|
IH
- splined
|
| 22. |
ZA104227
|
[1] |
SPROCKET ASSY.
|
IH
SPROCKET - 30 tooth
|
| 23. |
96328C1
|
[1] |
BALL BEARING,40mm ID x 80mm OD x 22mm W
|
CAS
ball, 1.57 inch (40 MM) ID
|
| 24. |
ZA104841
|
[1] |
HOUSING
|
IH
- bearing
|
| 25. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
CHAIN ASSEMBLY - roller 10 to rollers 8 and 6 (Use 187 links from bulk chain 611362R91, and 1 connecting link 574532R91)
|
| . . |
611362R91
|
[1] |
CHAIN (AG)
|
IH
CHAIN - 10 foot (3 M) roll Superseded by part number: 611362R91X
|
| . . |
574532R91
|
[1] |
CLIP, SPRING
|
IH
LINK - chain, connecting Superseded by part number: 241-1316
|
| 26. |
1254050C1
|
[1] |
TOOL
|
IH
LACER - belt, 6 inch (152 MM) Superseded by part number: 828459
|
| 27. |
1960708C1
|
[2] |
BOLT
|
CAS
- hex, special
|
| . . |
208790C1
|
[1] |
PACKAGE
|
IH
KIT - repair, belt (Box of lacing hooks)
|
