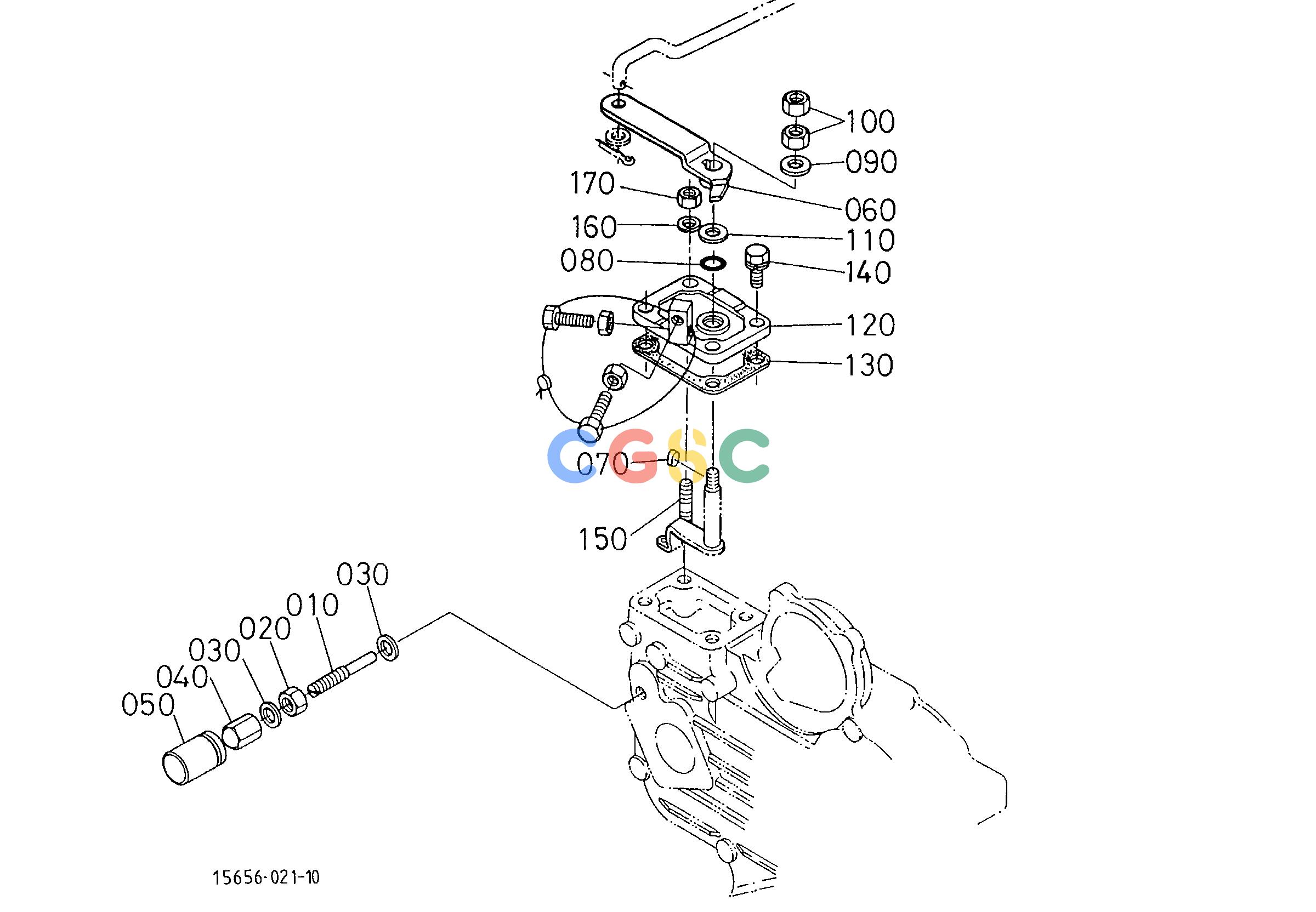

久保田零件查询T02400 SPEED CONTROL PLATE ENGINEEPC Kubota online

广数供应链运营团队, 14 02月, 2025，浏览： 776 次

Pos.	Part No	Qty	Parts name	Comments
010.	1553154120	[1]	BOLT ADJUSTING	0.0198(lbs); 0.009
020.	1553192030	[1]	NUT	0.0110(lbs); 0.005
030.	1560196650	[2]	GASKET	0.0022(lbs); 0.001
040.	1560154220	[1]	NUT CAP	; <=697417 0.0000(lbs); 0.000
040.	1584114620	[1]	NUT CAP	; =>697418 0.0132(lbs); 0.006
050.	1624154420	[1]	CAP	; <=924784 0.0088(lbs); 0.004
050.	1622154420	[1]	CAP	; =>924785 0.0022(lbs); 0.001
060.	1565657150	[1]	LEVER SPEED CONTROL	; <=633345 0.0770(lbs); 0.035
060.	1565657152	[1]	LEVER SPEED CONTROL	; =>633346 0.1540(lbs); 0.070
070.	1526195010	[1]	KEY FEATHER	; <=633345 0.0022(lbs); 0.001
070.	0571200410	[1]	KEY FEATHER	; =>633346 0.0022(lbs); 0.001
080.	0481100070	[1]	RING	0.0022(lbs); 0.001
090.	0401350060	[1]	WASHER PLAIN	0.0022(lbs); 0.001
100.	0201260060	[2]	NUT	0.0110(lbs); 0.005
110.	1526157380	[1]	DISK FRICTION	; <=633345 0.0000(lbs); 0.000
110.	1526194010	[1]	WASHER PLAIN	; =>633346 0.0044(lbs); 0.002
120.	1553157110	[1]	PLATE SPEED CONTROL	0.1320(lbs); 0.060
130.	1526157210	[1]	GASKET	; <=945299 0.0000(lbs); 0.000
130.	1526357210	[1]	GASKET	; =>945300 0.0022(lbs); 0.001
140.	0102350620	[4]	BOLT	0.0132(lbs); 0.006

久保田零件查询T02400 SPEED CONTROL PLATE ENGINEEPC Kubota online
