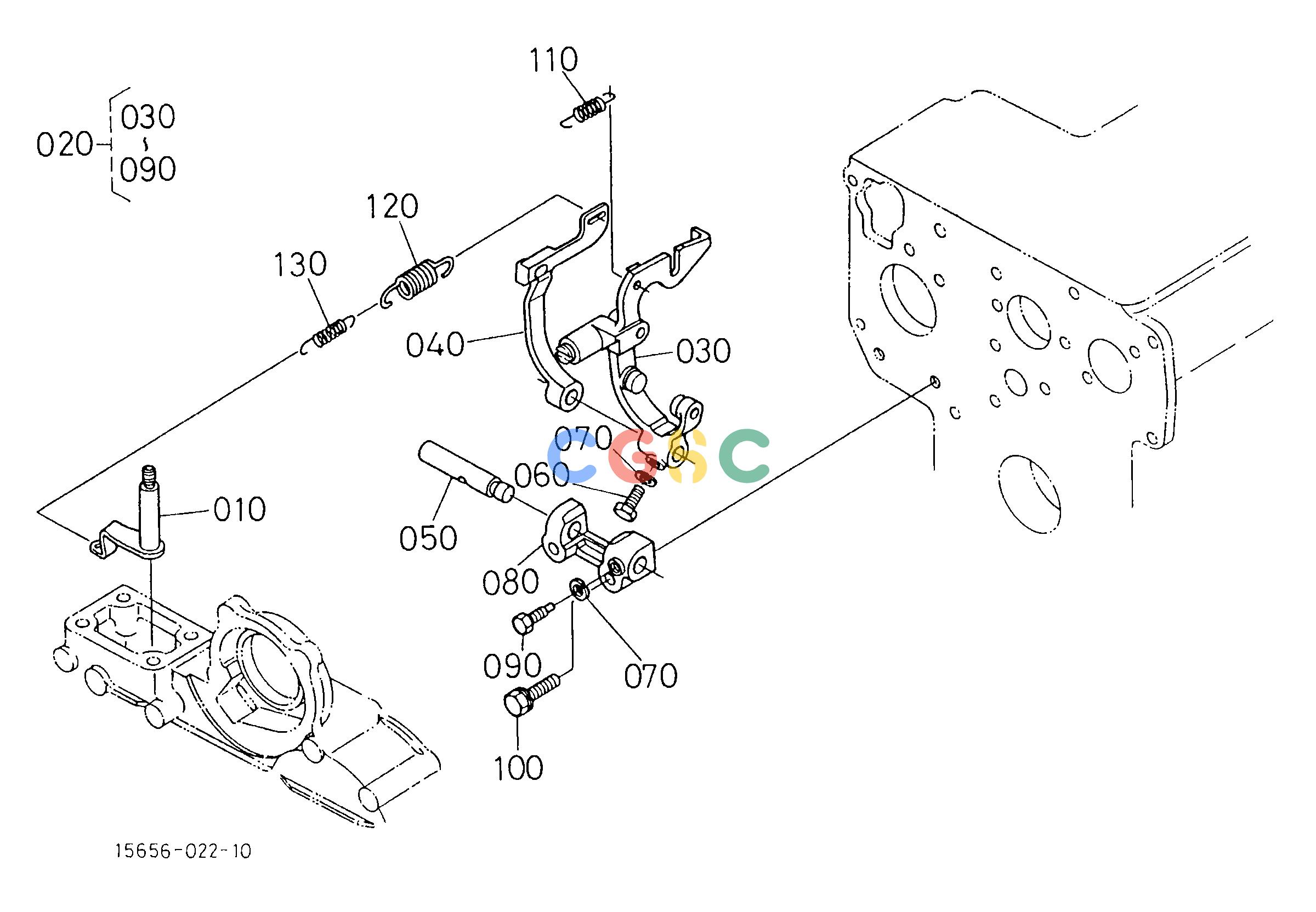

久保田零件查询T02500 GOVERNOR ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
590 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1553156020
|
[1] |
COMP.LEVER GOVERNOR
|
0.0572(lbs); 0.026
|
| 010. |
1553156022
|
[1] |
COMP.LEVER GOVERNOR
|
0.0440(lbs); 0.020
|
| 020. |
1569456050
|
[1] |
ASSY LEVER FORK
|
0.6600(lbs); 0.300
|
| 030. |
1569456040
|
[1] |
COMP.LEVER FORK
|
0.3520(lbs); 0.160
|
| 040. |
1553156130
|
[1] |
LEVER FORK
|
0.1650(lbs); 0.075
|
| 050. |
1526156150
|
[1] |
SHAFT FORK LEVER
|
0.0704(lbs); 0.032
|
| 060. |
0105350516
|
[1] |
BOLT
|
0.0066(lbs); 0.003
|
| 070. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 080. |
1526156230
|
[1] |
HOLDER FORK LEVER
|
0.0836(lbs); 0.038
|
| 090. |
1526166410
|
[1] |
BOLT
|
0.0066(lbs); 0.003
|
| 100. |
0102350628
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 110. |
1522156480
|
[1] |
SPRING START
|
0.0176(lbs); 0.008
|
| 120. |
1553156410
|
[1] |
SPRING GOVERNOR
|
0.0154(lbs); 0.007
|
| 130. |
1553156420
|
[1] |
SPRING GOVERNOR
|
0.0066(lbs); 0.003
|
