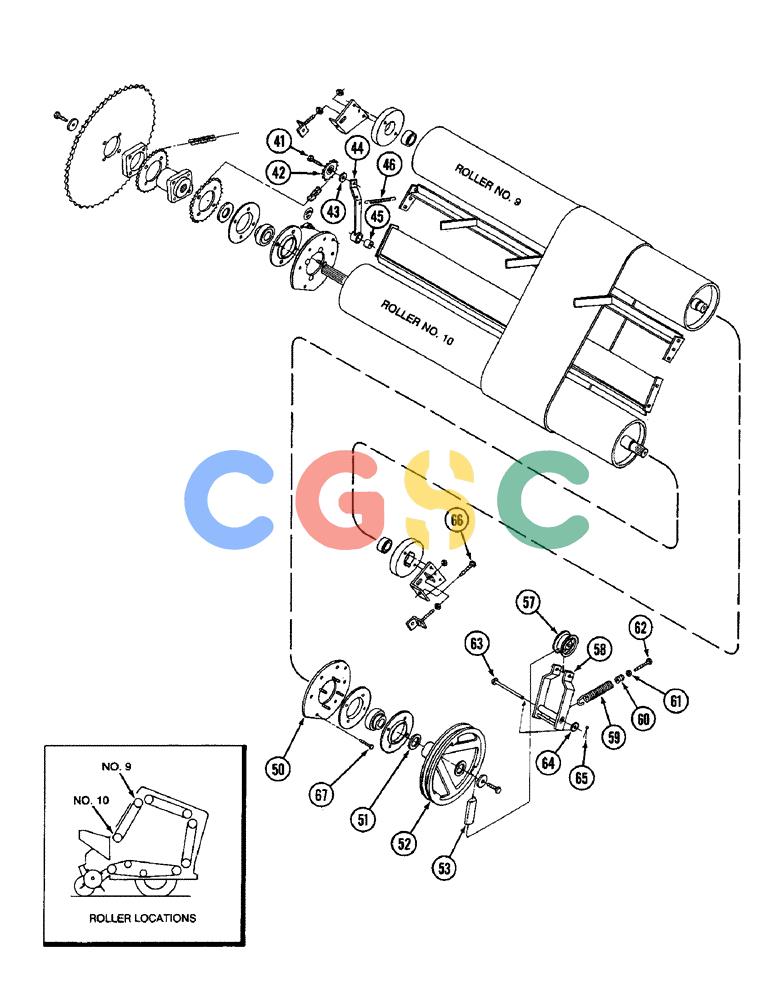

| 41. |
413-1032
|
[1] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
- hex, 5/8 NC x 2 inch Superseded by part number: 86505999
|
| 42. |
541857R92
|
[1] |
SPROCKET,15T
|
IH
ASSEMBLY - idler (Includes bearing)
|
| 43. |
67872C1
|
[1] |
WASHER
|
IH
- flat, 21/32 x 1-1/4 x 1/4 inch (17 x 32 x 6 MM)
|
| 44. |
ZA104649
|
[1] |
ARM
|
IH
ASSEMBLY - idler sprocket
|
| 45. |
96315C1
|
[1] |
BRONZE BUSHING
|
IH
BUSHING - idler arm
|
| 46. |
1281008C1
|
[1] |
SPRING
|
IH
- extension
|
| 50. |
ZA104824
|
[1] |
PLATE
|
IH
- left
|
| 51. |
22051R1
|
[1] |
WASHER
|
IH
- flat, 1-17/32 x 2-1/4 x 3/64 inch (30 x 57 x 1 MM) Superseded by part number: Q302
|
| 52. |
ZA104842
|
[1] |
PULLEY
|
IH
- upper, pickup drive, regular speed, 9 inch (229 MM) OD (See note)
|
| 52. |
ZA104645
|
[1] |
PULLEY
|
IH
- upper, pickup drive, high speed, 10-3/8 inch (264 MM) OD (See note)
|
| 53. |
ZA104774
|
[1] |
BELT
|
IH
- Pickup drive, Regular speed (See note)
|
| 53. |
668902R1
|
[1] |
BELT
|
IH
- Pickup drive, High speed (See note)
|
| 57. |
ZA103001
|
[1] |
PULLEY
|
IH
- idler
|
| 58. |
ZA104215
|
[1] |
ARM
|
IH
- idler pulley
|
| 59. |
ZA271276
|
[1] |
SPRING
|
IH
- extension
|
| 60. |
ZA201085
|
[1] |
INSERT
|
IH
- spring
|
| 61. |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 62. |
445608
|
[1] |
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5
|
IH
- hex, 1/2 NC x 5-1/2 inch Superseded by part number: 88576
|
| 63. |
21993R1
|
[1] |
SPLIT PIN/SAFETY PIN
|
IH
PIN - headed, 1/2 x 3-1/2 inch Superseded by part number: 86624062
|
| 64. |
27342R1
|
[1] |
WASHER
|
IH
WASHER - flat, 17/32 x 1 x 3/64 inch (13 x 25 x 1 MM) Superseded by part number: 495-81254
|
| 65. |
432-1216
|
[1] |
COTTER PIN,3/16" x 1"
|
CAS
Pin, Split (Cotter), 3/16" x 1"
|
| 66. |
1960708C1
|
[2] |
BOLT
|
CAS
- hex, special (replaces 196708C1)
|
| 67. |
180077
|
[12] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
IH
- hex, 5/16 NC x 3/4 inch Superseded by part number: 87872
|
