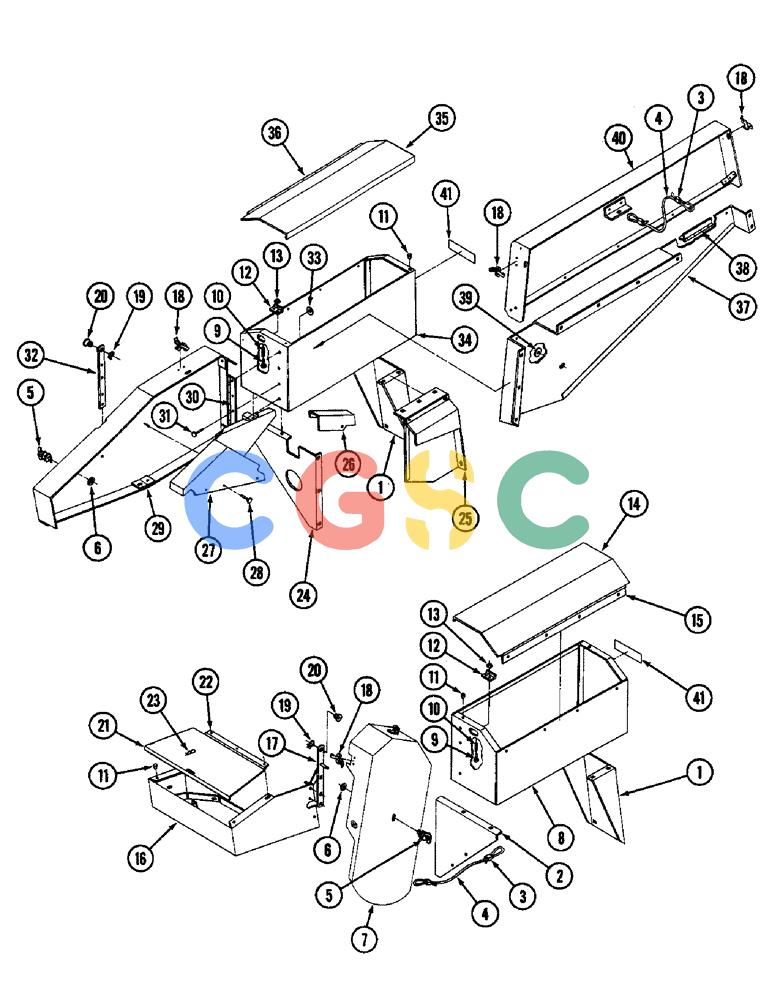

凯斯零件查询(3440) - CASE IH ROUND BALER (1/87-12/87) (52) - TWINE BOX, TOOL BOX AND SHIELDS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
706 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZA104699
|
[2] |
SUPPORT
|
IH
- rear box
|
| 2. |
ZA104966
|
[1] |
SUPPORT
|
IH
- left
|
| 3. |
96326C1
|
[4] |
SLEEVE
|
IH
- cable
|
| 4. |
ZA104429
|
[2] |
CABLE
|
IH
- shield
|
| 5. |
ZA103138
|
[2] |
FASTENER
|
IH
- shield
|
| 6. |
ZA103937
|
[4] |
WASHER
|
IH
- retaining Superseded by part number: 1326407C1
|
| 7. |
ZA104925
|
[1] |
SHIELD
|
IH
- pickup drive
|
| 8. |
ZA104935
|
[1] |
BOX
|
IH
- twine, left
|
| 9. |
180042
|
[4] |
BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5
|
NH
BOLT - hex, 1/4 NC x 1-3/4 inch Superseded by part number: 86628570
|
| 10. |
96314C1
|
[4] |
SPRING
|
IH
- compression
|
| 11. |
ZA104611
|
[6] |
PLUG
|
IH
- rubber
|
| 12. |
ZA104859
|
[2] |
BRACKET
|
IH
TENSIONER - twine
|
| 13. |
9413950
|
[4] |
LOCK NUT,1/4"-20, GB
|
CAS
NUT - lock, 1/4 inch NC Superseded by part number: 280129
|
| 14. |
ZA104938
|
[1] |
DOOR
|
IH
COVER - twine box, left
|
| 15. |
ZA703189
|
[1] |
HINGE
|
IH
- cover
|
| 16. |
ZA105942
|
[1] |
BOX, TOOL
|
CAS
BOX - tool
|
| 17. |
ZA105521
|
[1] |
GUIDE
|
IH
BRACKET - twine guide
|
| 18. |
ZA762975
|
[4] |
CLAMP
|
IH
- latch
|
| 19. |
324733R1
|
[2] |
CLAMP,#16, 1", Spring
|
IH
- hose, spring wire, no. 16 type E Superseded by part number: 274085R91
|
| 20. |
ZA104633
|
[2] |
GUIDE
|
IH
- twine
|
| 21. |
ZA105939
|
[1] |
DOOR
|
CAS
COVER - tool box
|
| 22. |
ZA105940
|
[1] |
HINGE
|
CAS
- tool box cover
|
| 23. |
407211R1
|
[1] |
CLIP
|
IH
PIN - hair (Package of 20)
|
| 24. |
ZA104965
|
[1] |
SUPPORT
|
IH
- right
|
| 25. |
ZA104951
|
[1] |
SHIELD
|
IH
- floor drive
|
| 26. |
ZA104602
|
[1] |
SHIELD
|
IH
- idler
|
| 27. |
ZA104805
|
[1] |
SHIELD
|
IH
- inner
|
| 28. |
17351R1
|
[3] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT - round head square neck, 3/8 NC x 1 inch Superseded by part number: 88682
|
| 29. |
ZA104945
|
[1] |
SHIELD
|
IH
- main drive chain
|
| 30. |
ZA104944
|
[1] |
HINGE
|
IH
- shield
|
| 31. |
180077
|
[4] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
IH
- hex, 5/16 NC x 3/4 inch Superseded by part number: 87872
|
| 32. |
ZA104882
|
[1] |
GUIDE
|
IH
BRACKET - twine guide
|
| 33. |
106969R1
|
[4] |
WASHER
|
IH
- flat, 11/32 x 1-1/4 x 3/64 inch (9 x 32 x 1 MM) Superseded by part number: 495-81119
|
| 34. |
ZA104934
|
[1] |
BOX
|
IH
- twine, right
|
| 35. |
ZA104937
|
[1] |
DOOR
|
IH
COVER - twine box, right
|
| 37. |
ZA104819
|
[1] |
SHIELD
|
IH
- lower
|
| 38. |
ZA104827
|
[1] |
HINGE
|
IH
- shield
|
| 39. |
118775
|
[1] |
WASHER,3/8" x 13/16" x .065"
|
IH
- flat, 13/32 x 13/16 x 3/64 inch (10 x 21 x 1 MM) Superseded by part number: 87613282
|
| 40. |
ZA104797
|
[1] |
SHIELD
|
IH
- upper
|
| 41. |
1284374C1
|
[2] |
REFLECTOR
|
IH
- red
|
