斗山零件查询BOOM MOUNTING 440 PLUS Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
533 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

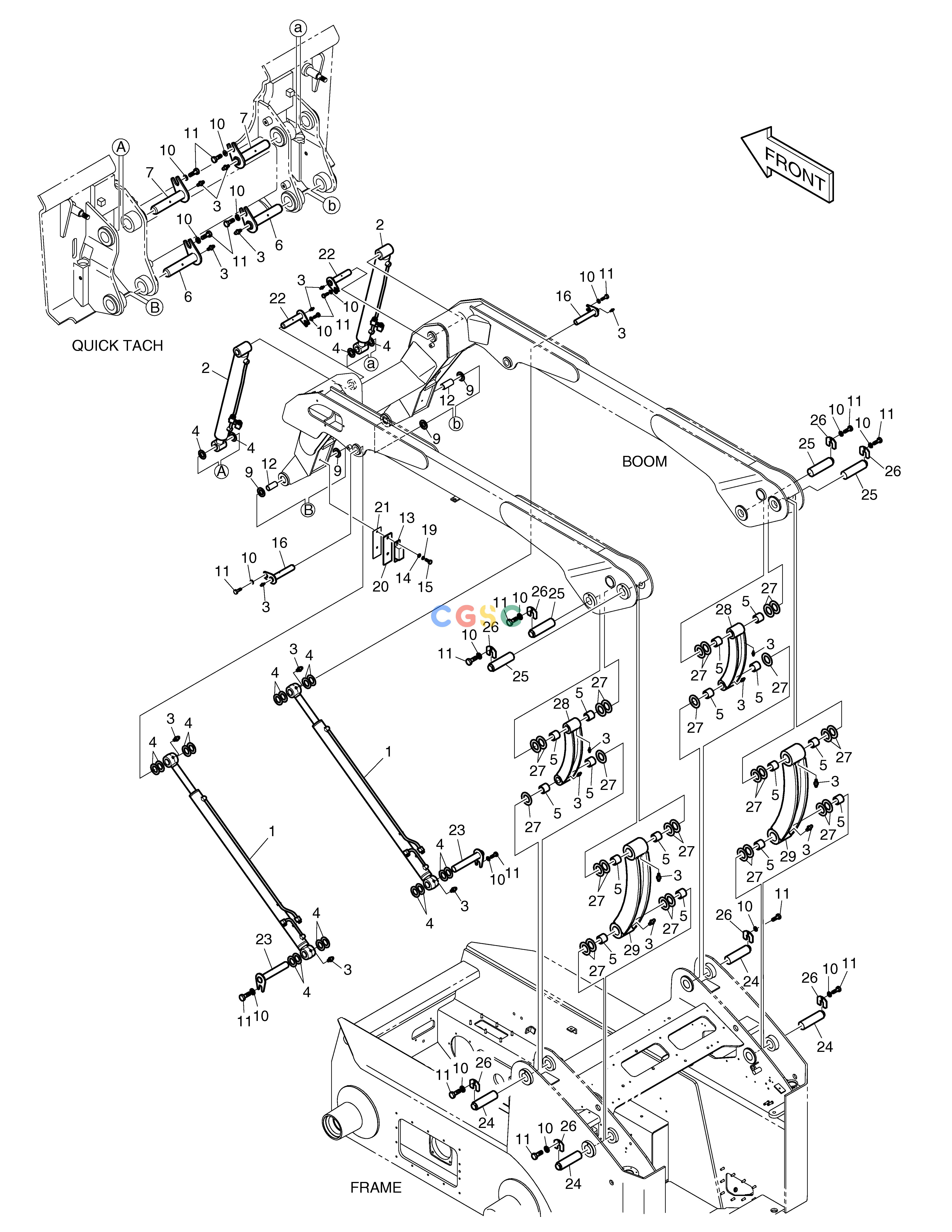

K1020673
|
[-] |
BOOM MOUNTING
|
|
| 1. |
K1022596
|
[2] |
CYLINDER;BOOM
|
|
| 10. |
K1023144
|
[18] |
WASHER
|
|
| 11. |
S0508663
|
[18] |
BOLT
|
|
| 12. |
K1020151
|
[2] |
BUSHING
|
|
| 13. |
K1020012
|
[2] |
PAD;RUBBER
|
|
| 14. |
K1023147
|
[4] |
WASHER;HARDENED
|
|
| 15. |
S0512263
|
[4] |
BOLT
|
|
| 16. |
K1020047
|
[2] |
PIN
|
|
| 19. |
S5102603
|
[4] |
. WASHER
|
|
| 2. |
K1022624
|
[2] |
CYLINDER;BUCKET
|
|
| 20. |
K1020162
|
[1] |
PLATE;STOPPER
|
|
| 21. |
K1020163
|
[1] |
SPACER
|
|
| 22. |
K1019967
|
[2] |
PIN
|
|
| 23. |
K1020423
|
[2] |
PIN
|
|
| 24. |
K1020420
|
[4] |
PIN
|
|
| 25. |
K1020421
|
[4] |
PIN
|
|
| 26. |
K1020487
|
[8] |
PLATE;PIN LOCK
|
|
| 27. |
K1020645
|
[5] |
SHIM
|
|
| 28. |
K1020871
|
[2] |
LINK;FORNT
|
|
| 29. |
K1020872
|
[2] |
LINK;REAR
|
|
| 3. |
K1019735
|
[18] |
NIPPLE;GREASE
|
|
| 4. |
K1019801
|
[5] |
SHIM
|
|
| 5. |
K1020562
|
[16] |
BUSHING
|
|
| 6. |
K1020365
|
[2] |
PIN
|
|
| 7. |
K1020364
|
[2] |
PIN
|
|
| 9. |
K1022544
|
[4] |
SEAL;DUST
|
|
